SWC225BH Heavy-Duty Flange Cardan Universal Joint Shaft | Industrial High-Torque Coupling
Model Number
Check below, custom
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Heavy-Duty Industrial Power Transmission: SWC225BH Standard Telescopic Flange Cardan Shaft
Â
The Apexcoupling SWC225BH Heavy-Duty Cardan Universal Joint Shaft Assembly is engineered for high-torque dynamic applications including rolling mills, heavy steel plant machinery, paper manufacturing lines, crane drives, and large industrial pumps. Built with high-strength forged carbon steel yokes, induction-hardened splined shafts, and multi-row needle roller cross spider journal assemblies, the SWC225BH delivers reliable rotational energy transfer under severe shock loads and high operational misalignment angles.
Â

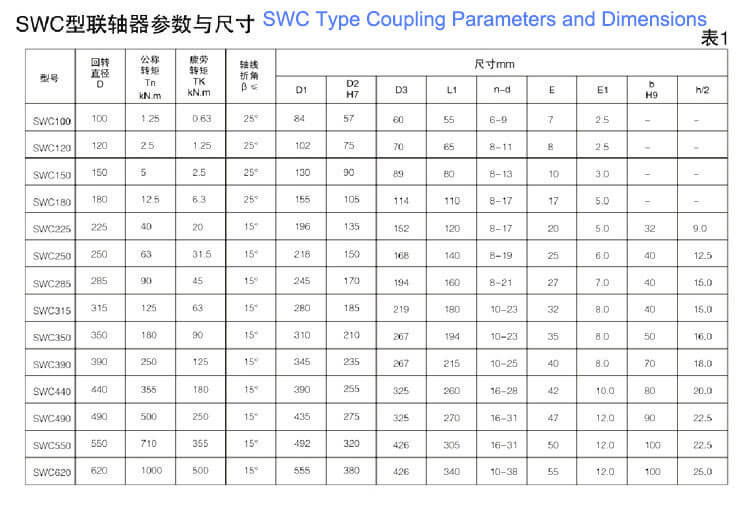

Featuring a rotation swing diameter (D) of 225 mm, a nominal torque rating (Tn) of 56 kN .m, a main tube outer diameter (D3) of 152 mm, and an 8-hole flange interface (8 -OD 17 mm on a OD196 mm pitch circle), this BH standard telescopic shaft absorbs axial movement and angular displacement. Each unit undergoes heat treatment and surface passivation to maximize fatigue resistance and service life.
Core Product Advantages & Features
High Nominal Torque Capacity: Engineered to handle up to 56 kN .m nominal continuous torque, making it suitable for demanding industrial drivelines.
Multi-Row Needle Roller Cross Journal Assembly: High-precision cross spiders feature multi-row needle roller bearings and dedicated grease lubrication ports to increase wear resistance and extend maintenance intervals.
Telescopic Spline Expansion: Quenched splined shaft and sleeve configuration allows smooth axial expansion during dynamic operational offset.
Versatile Flange Connection Profiles: Available in standard circular flange, square flange, face-key (keyway), and end-tooth (face-gear) mating configurations according to customer technical drawings.
Advanced Heat Treatment: Forged blanks are fully quenched and tempered, with splined shafts induction-hardened for superior torsional strength.
Anti-Corrosion Surface Protection: Coated with durable industrial spray paint (standard Matte Black or Safety Orange) to prevent rust in damp or corrosive mill environments.
Product Show
SWC225BH cardan shaft
