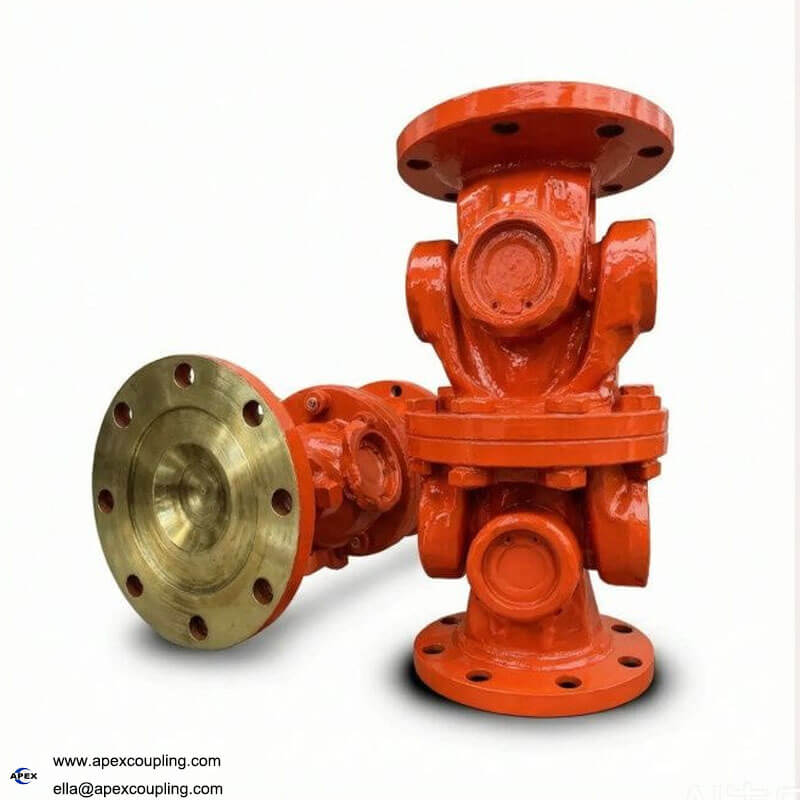

SWC-WD Heavy Duty Universal Joint Drive Shaft Assembly – High Torque Cardan Shaft Coupling with Flange
Model Number
Check below, custom
SWC100WD
SWC250WD
SWC120WD
SWC285WD
SWC150WD
SWC315WD
SWC180WD
SWC225WD
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
SWC-WD Heavy Duty Universal Joint Drive Shaft Assembly – High Torque Cardan Shaft Coupling with Flange
The SWC-WD universal joint drive shaft is a non-telescopic short-type cardan shaft coupling engineered for heavy-duty industrial power transmission. Designed with a compact structure and high angular compensation capability, this SWC-WD heavy duty drive shaft delivers exceptional torque transmission efficiency for demanding applications across cranes, mining, marine, and heavy machinery industries.
Manufactured from premium forged steel with precision automated welding, our SWC-WD cardan shaft offers a reliable, cost-effective alternative to imported universal joint assemblies. With bore diameters ranging from 100mm to 620mm and rated torque capacity from 1.25 kN·m to 1000 kN·m, the SWC-WD flange drive shaft ensures stable operation even at high rotational speeds and shaft misalignment angles of 15° to 25°.
Available Models – SWC-WD Universal Joint Drive Shaft Series
| Model | Nominal Torque (kN·m) | Bore Diameter (mm) | Max. Angle (°) | Weight (kg) |
|---|---|---|---|---|
| SWC100WD | 1.25 | 100 | 25° | 6.1 |
| SWC120WD | 2.5 | 120 | 25° | 10.8 |
| SWC150WD | 5.0 | 150 | 25° | 22.0 |
| SWC180WD | 12.5 | 180 | 25° | 42.0 |
| SWC225WD | 40.0 | 225 | 15° | 82.0 |
| SWC250WD | 63.0 | 250 | 15° | 127.0 |
| SWC285WD | 90.0 | 285 | 15° | 189.0 |
| SWC315WD | 125.0 | 315 | 15° | 270.0 |
Custom non-standard sizes available. Contact us with your specifications for tailored SWC-WD universal joint drive shaft solutions.
Key Features – Why Choose SWC-WD Cardan Shaft Coupling
✅ Compact Non-Telescopic Design (WD Type)
The SWC-WD short type universal joint features a space-saving structure ideal for installations with limited axial space. No telescopic slip means higher torsional rigidity and simplified maintenance.
The SWC-WD short type universal joint features a space-saving structure ideal for installations with limited axial space. No telescopic slip means higher torsional rigidity and simplified maintenance.
✅ High Torque & High Speed Capability

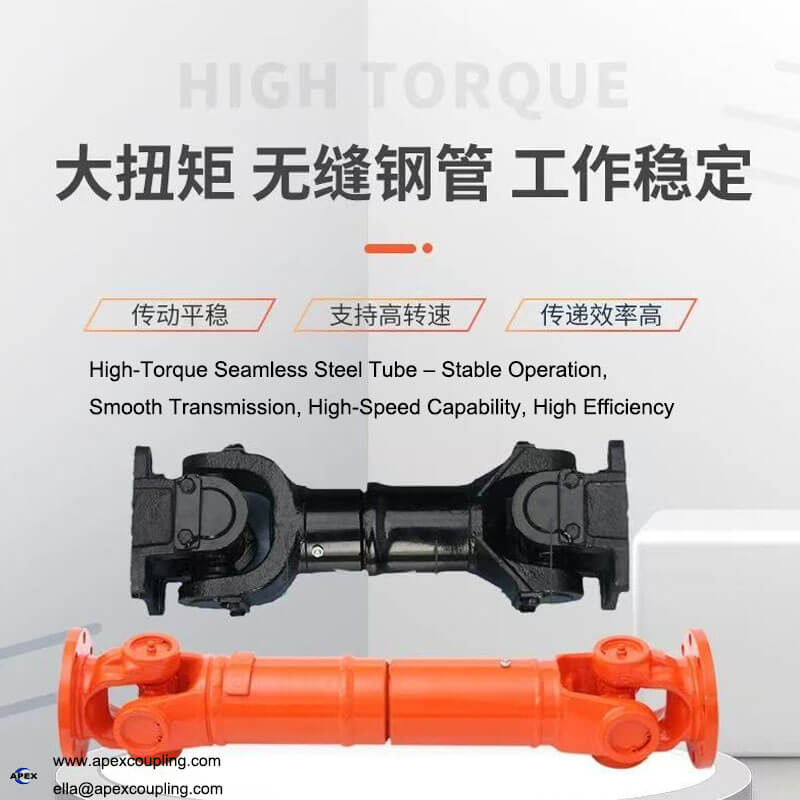

Built with thick-walled seamless steel tubing and heat-treated spline shafts, this heavy duty drive shaft supports high-speed rotation with excellent dynamic balance and minimal vibration.
Built with thick-walled seamless steel tubing and heat-treated spline shafts, this heavy duty drive shaft supports high-speed rotation with excellent dynamic balance and minimal vibration.
✅ Superior Angular Compensation
Handles shaft misalignment from 15° to 25°, making the SWC-WD cardan coupling perfect for applications where perfect shaft alignment is not achievable.
Handles shaft misalignment from 15° to 25°, making the SWC-WD cardan coupling perfect for applications where perfect shaft alignment is not achievable.
✅ Premium Forged Steel Construction
- 45# forged steel yoke and flange for impact resistance
- 35CrMo alloy steel welded fork ends for enhanced fatigue strength
- 20CrMnTi cross bearings and multi-row needle rollers for extended service life
✅ Automated Welding & Precision Machining
Fork joints utilize robotic automated welding instead of manual welding, ensuring consistent penetration, zero porosity, and superior crack resistance under cyclic loading.
Fork joints utilize robotic automated welding instead of manual welding, ensuring consistent penetration, zero porosity, and superior crack resistance under cyclic loading.
✅ Advanced Cross Bearing Assembly
- Multi-row needle roller design in the cross shaft universal joint for maximum wear resistance
- Grease nipple on cross axis for easy lubrication and reduced maintenance downtime
- Cold-rolled seamless steel spline shaft with integral quenching and minimal backlash
✅ Corrosion Protection & Dynamic Balance
Professional baking varnish finish and anti-rust treatment protect the flange drive shaft in harsh environments. Each unit undergoes strict dynamic balancing to ISO 1940 standards for smooth, vibration-free operation.
Professional baking varnish finish and anti-rust treatment protect the flange drive shaft in harsh environments. Each unit undergoes strict dynamic balancing to ISO 1940 standards for smooth, vibration-free operation.

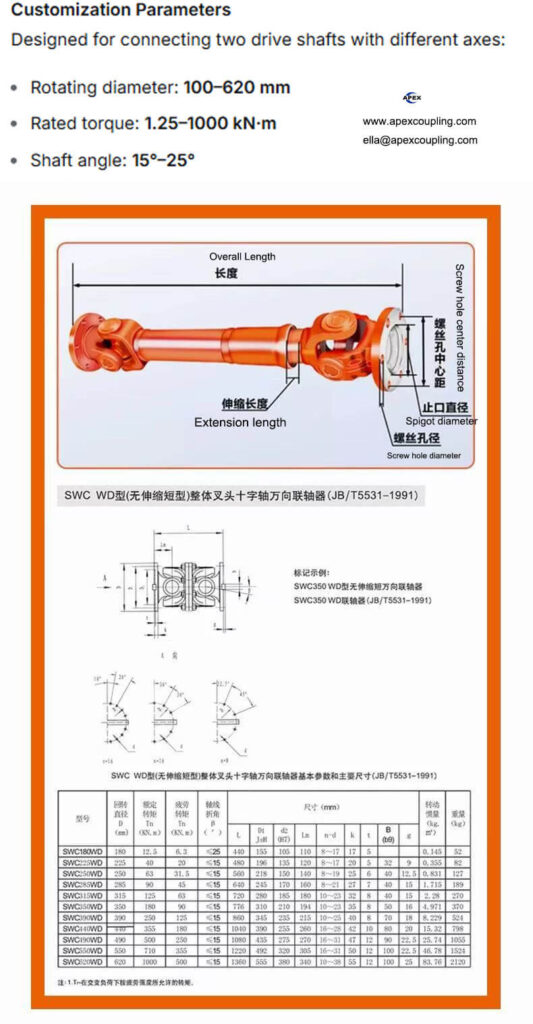

Technical Specifications
| Parameter | Specification |
|---|---|
| Series | SWC-WD (Non-Telescopic Short Type) |
| Bore Diameter Range | 100 mm – 620 mm |
| Rated Torque | 1.25 kN·m – 1000 kN·m |
| Max. Operating Angle | 15° – 25° |
| Material – Yoke/Flange | 45# Forged Steel |
| Material – Welded Fork | 35CrMo Alloy Steel |
| Material – Cross Bearing | 20CrMnTi with Multi-Row Needle Rollers |
| Shaft Tube | Cold-Rolled Seamless Steel Pipe |
| Heat Treatment | Integral Quenching of Spline Shaft |
| Surface Treatment | Baking Varnish / Anti-Rust Coating |
| Balance Grade | G16 / G40 (per application) |
| Installation | Standard Flange Mounting (Quick-Connect) |

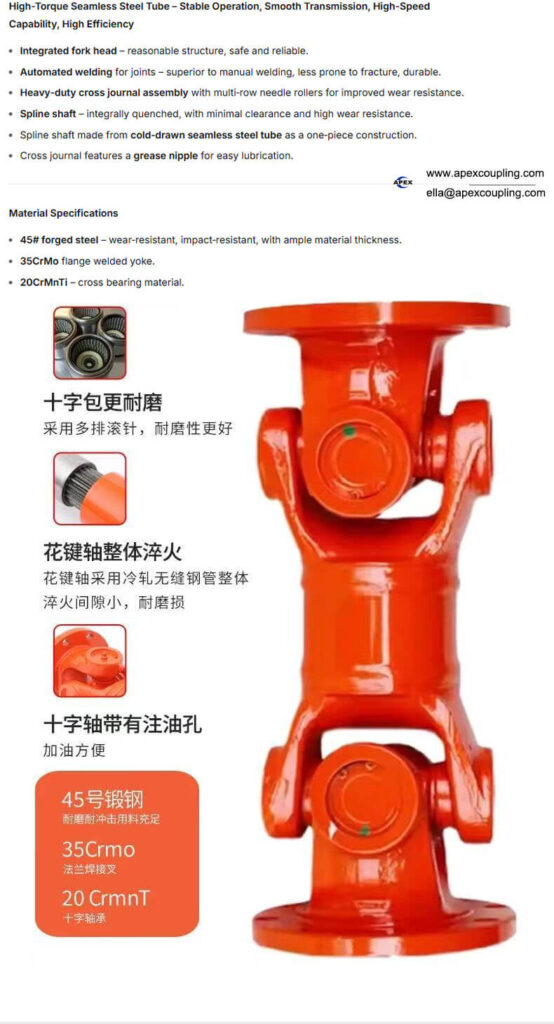

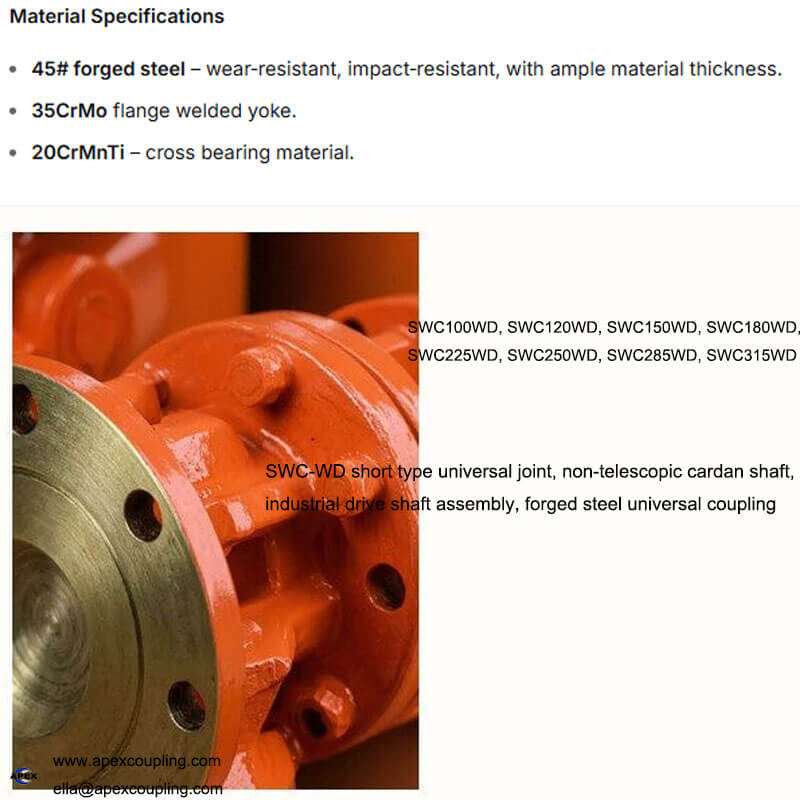

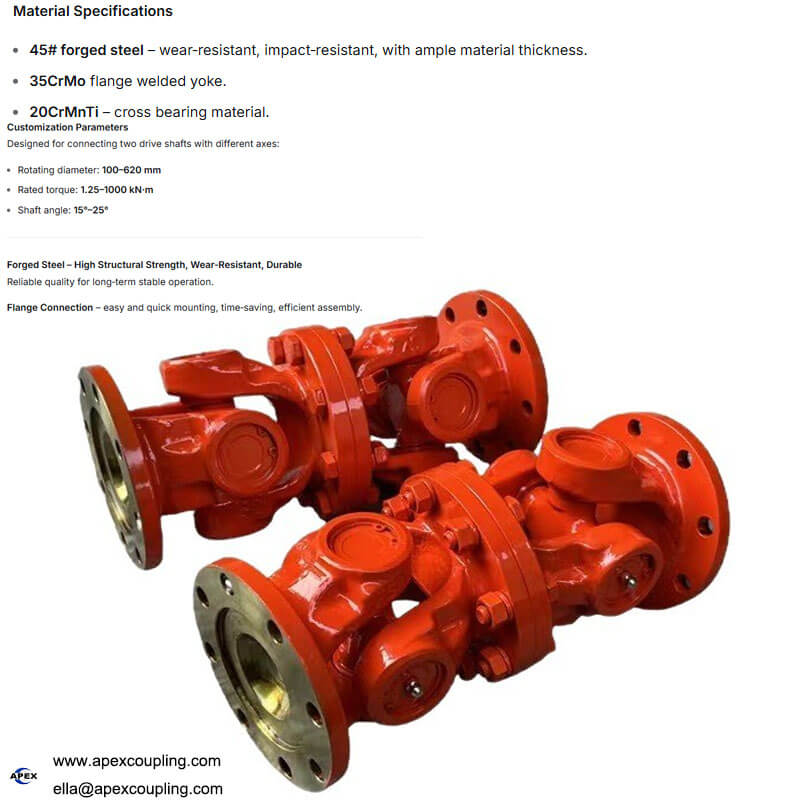

Material & Manufacturing Excellence
Our SWC-WD heavy duty universal joint drive shaft is manufactured to exceed industry durability standards:
- Yoke & Flange: 45# forged steel, fully machined for dimensional accuracy and fatigue resistance
- Welded Fork Ends: 35CrMo alloy construction with automated robotic welding for defect-free joints
- Cross Assembly (Spider): 20CrMnTi cross shaft with multi-row needle bearings; oil-impregnated design with external grease fitting
- Spline Shaft: Cold-drawn seamless steel tube, integral induction hardened, precision-ground splines with minimal clearance for wear resistance
- Protective Finish: High-temperature baking varnish + anti-corrosion primer for marine and outdoor applications
Applications – Industrial Cardan Shaft Solutions
The SWC-WD universal coupling is widely deployed across heavy industries worldwide:
- 🏗️ Cranes & Hoists – Overhead cranes, gantry cranes, port cranes
- 🚜 Construction Machinery – Excavators, loaders, bulldozers (XCMG, SDLG, LONKING, SHANTUI, LIUGONG compatible)
- ⛏️ Mining & Mineral Processing – Crushers, conveyors, ball mills
- 🚢 Marine & Offshore – Propulsion systems, deck machinery
- 🛢️ Oil & Gas – Pump drives, drilling equipment
- ⚓ Shipbuilding – Main shaft and auxiliary power transmission
- 🏭 Paper & Rubber Machinery – Calenders, mixers, extruders
- ⚡ Power Generation & Steel Plants – Rolling mills, fans, compressors
Why Buy From Apex Coupling?
| Advantage | Detail |
|---|---|
| 🏭 Manufacturing Experience | Decades of production expertise supplying major Chinese heavy equipment manufacturers (XCMG, SDLG, LONKING, SHANTUI, LIUGONG) |
| 📦 Large Inventory | Massive stock of semi-finished and standard components. Same-day shipping available (including holidays) |
| ⚡ Short Lead Time | Standard models ready for immediate dispatch. Custom SWC-WD drive shafts manufactured in days, not weeks |
| 🔧 Custom Engineering | Non-standard bore sizes, lengths, torque ratings, and flange patterns available on request |
| 🌐 Global Shipping | Export packaging for sea/air freight. Full documentation (CO, mill test reports, balance certificates) |
| 💰 Cost-Effective Alternative | Direct factory pricing. Premium quality that replaces expensive imported cardan shaft brands at a fraction of the cost |
Customization Service
Need a non-standard SWC-WD universal joint drive shaft? We custom-engineer to your exact requirements:
Please provide:
- Shaft bore diameter and length
- Rated torque and max speed (RPM)
- Operating angle / misalignment
- Flange standard (DIN, SAE, or custom drawing)
- Application environment (temperature, dust, moisture, corrosive media)
Our engineering team will confirm specifications and provide a detailed quotation within 24 hours.
📞 Get Your Quote Today
In Stock: SWC100WD | SWC120WD | SWC150WD | SWC180WD | SWC225WD | SWC250WD | SWC285WD | SWC315WD
Whether you need a standard SWC-WD heavy duty cardan shaft or a fully customized universal joint drive shaft assembly, Apex Coupling delivers reliable power transmission solutions with fast global delivery.
FAQ – SWC-WD Universal Joint Drive Shaft
Q1: What is the difference between SWC-WD and SWC-WH type?
A: SWC-WD is the non-telescopic short type with fixed length, offering higher rigidity and compact design. SWC-WH is the welded hub long type with telescopic adjustment. Choose WD for space-constrained, high-torque applications.
A: SWC-WD is the non-telescopic short type with fixed length, offering higher rigidity and compact design. SWC-WH is the welded hub long type with telescopic adjustment. Choose WD for space-constrained, high-torque applications.
Q2: Can SWC-WD drive shafts replace imported brands?
A: Yes. Our SWC-WD cardan shaft is dimensionally and performance-compatible with major European and Japanese brands, offering a direct replacement at competitive factory pricing.
A: Yes. Our SWC-WD cardan shaft is dimensionally and performance-compatible with major European and Japanese brands, offering a direct replacement at competitive factory pricing.
Q3: Do you provide dynamic balancing certificates?
A: Absolutely. Every heavy duty drive shaft undergoes dynamic balancing testing, and certificates are available upon request for critical high-speed applications.
A: Absolutely. Every heavy duty drive shaft undergoes dynamic balancing testing, and certificates are available upon request for critical high-speed applications.
Q4: What is the maximum operating angle?
A: Smaller models (SWC100WD–SWC180WD) accommodate up to 25°. Larger models (SWC225WD–SWC315WD) handle up to 15° misalignment.
A: Smaller models (SWC100WD–SWC180WD) accommodate up to 25°. Larger models (SWC225WD–SWC315WD) handle up to 15° misalignment.
Q5: How do I maintain the SWC-WD universal joint?
A: Simply grease the cross bearing through the external grease nipple every 500 operating hours (or per your maintenance schedule). The sealed needle bearing design minimizes contamination.
A: Simply grease the cross bearing through the external grease nipple every 500 operating hours (or per your maintenance schedule). The sealed needle bearing design minimizes contamination.
SWC-WD short type universal joint, non-telescopic cardan shaft, industrial drive shaft assembly, forged steel universal coupling
crane drive shaft, mining universal joint, marine cardan coupling, paper machine drive shaft

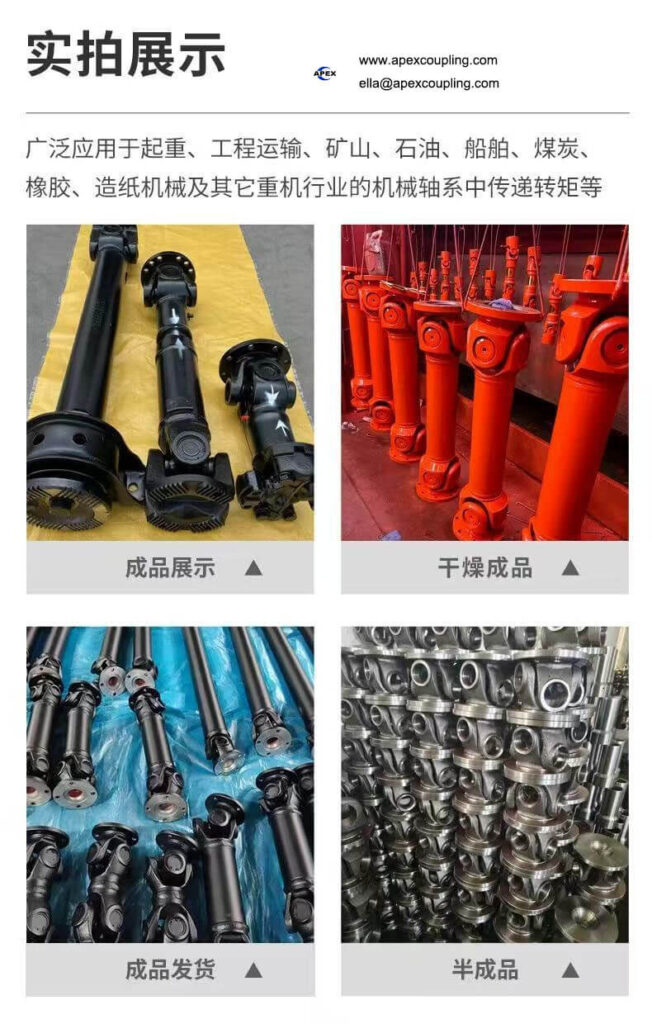

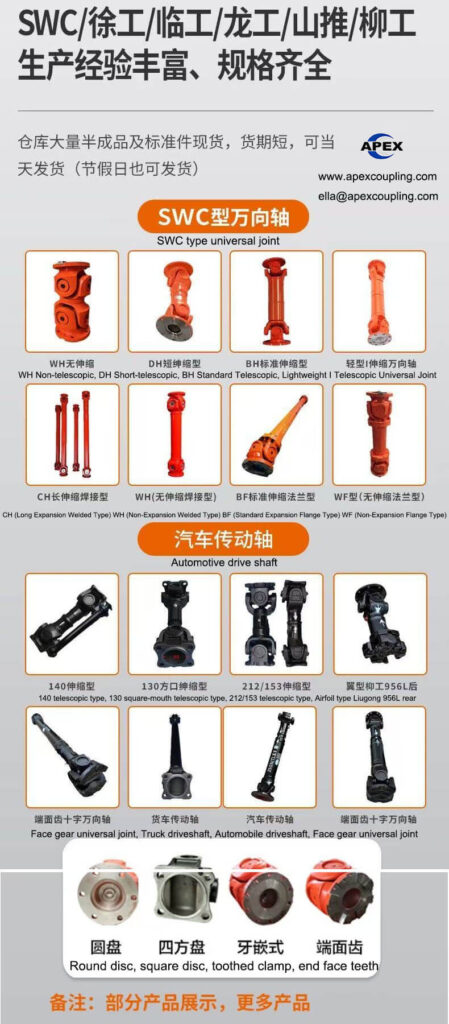

Product Show
