Stainless Steel FCL Type Flexible Spring Couplings Grid Coupling – Specialized for Fans and Pumps, Industrial Drive Components Factory
Model: JS Type, JSB Type
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Product Name: JS Spring Coupling-Stainless Steel FCL Type Flexible Spring Couplings Grid Coupling – Specialized for Fans and Pumps, Industrial Drive Components Factory
Brand: Apexcoupling
Product Number: Spring Coupling
Model: JS Type, JSB Type
Overall Dimensions: 250 (mm)
Coupling Type: Flexible Coupling
Rated Torque: 1800 (N·m)
Allowable Speed: 3600 (r/min)
Shaft Bore: 55, 56, 60, 65, 70, 71, 75 (mm)
Specification Model: ISR SIRES
Shaft Bore Diameter D1: 55, 56, 60, 65, 70, 71, 75
Shaft Bore Diameter D2: Contact Customer Service
Outer Diameter: Contact
Total Length: 200
Product Attributes
| Allowable Torque | 34535 | Feature | High Torque | Maximum Speed | 3600 |
|---|---|---|---|---|---|
| Allowable Angular Misalignment | 0 | Allowable Eccentricity | 9 | Allowable Deviation | Eccentric |
| Material | S45C | Application | General Motor | Color | Green |
| Diaphragm | Single Diaphragm | Surface Treatment | Anodized | Shaft Locking Method | Screw Clamp Type |
| Mounting Hole Type | Keyway Type | Adjustment Ring Material | Polyurethane | Number of Sections | Single Section |
| Inner Bore | 60 |
Stainless Steel FCL Type Flexible Spring Couplings – Specialized for Fans and Pumps, Industrial Drive Components, Factory Wholesale and Processing.
Product Show

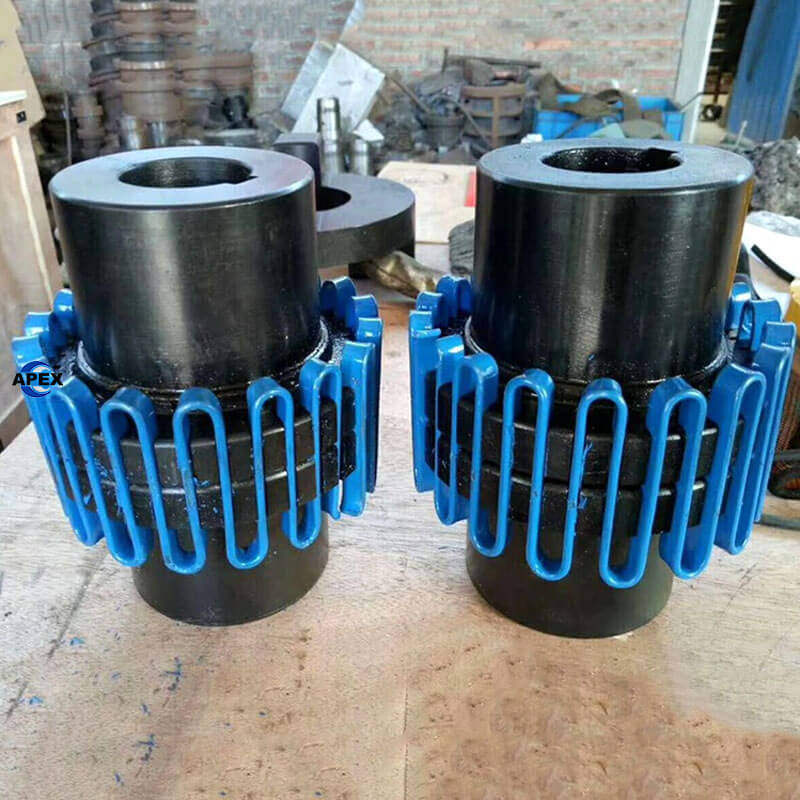

Custom Flexible grid couplings
