Shaft Couplings Universal: The Engineered Solution for High-Angle Power Transmission

In modern mechanical engineering, transmitting power between non-aligned shafts is a common yet critical challenge. Shaft couplings universal, commonly known as universal joints or U-joints, provide the essential flexibility to accommodate angular misalignment while maintaining efficient torque transfer. The G and GD type precision universal joints from Apex Coupling represent the pinnacle of this technology, manufactured from high-strength 42CrMo alloy steel to deliver exceptional durability and performance in demanding industrial applications. When your machinery requires reliable shaft couplings universal that can withstand harsh conditions and heavy loads, our precision-engineered components are the proven choice.

Precision Engineering for Extended Service Life

What sets our shaft couplings universal apart is the meticulous attention to materials and manufacturing tolerances. The core components are forged from 42CrMo high-strength alloy steel, a material renowned for its excellent toughness, fatigue resistance, and ability to withstand high torque loads. This material choice ensures that our universal joints deliver a lifespan increased by approximately 50% compared to standard carbon steel alternatives, making them the top choice for procurement professionals seeking long-lasting transmission parts.

Every component is machined to exacting H7-grade precision, ensuring minimal internal clearance and superior wear resistance. This tight tolerance reduces backlash, vibration, and operational noise while maximizing power transmission efficiency. The result is a shaft coupling universal that maintains its performance characteristics over millions of cycles, reducing maintenance requirements and total cost of ownership.

Versatile Configurations for Every Application

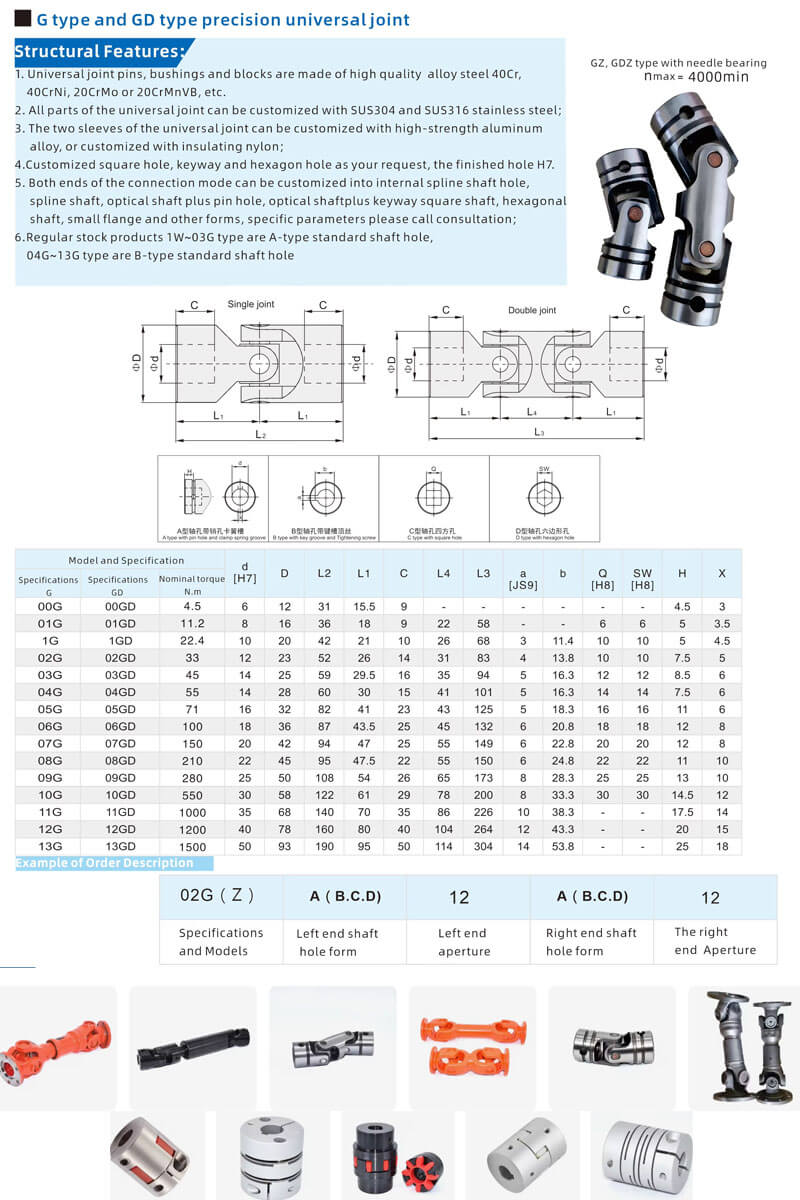

Our G type and GD type precision universal joints are designed to meet the diverse needs of modern machinery:

• G Type (Single Universal Joint): Ideal for applications requiring angular compensation in a single plane. Perfect for connecting shafts where space is limited but misalignment must be accommodated .

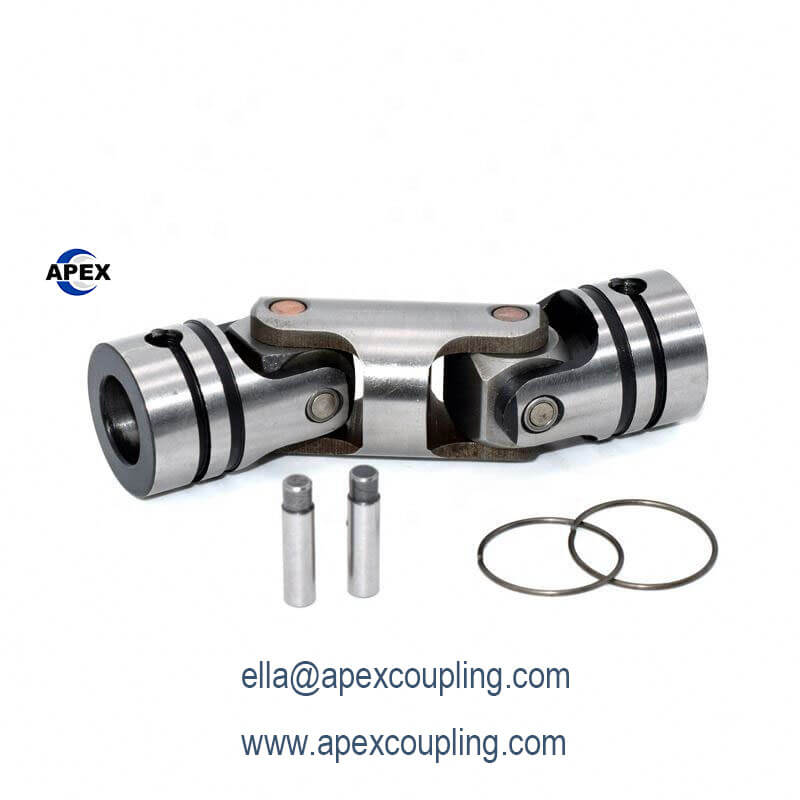

• GD Type (Double Universal Joint): Features two joints in series, capable of offsetting both angular and parallel misalignment while maintaining constant velocity characteristics. Essential for complex drive layouts and applications requiring radial displacement compensation .

Both configurations are available with customizable bore options to match your specific shaft requirements. We offer square holes, hexagon holes, keyway holes, and plain bores with inner diameters ranging from 6mm to 50mm. Outer diameters span from 12mm to 93mm, with overall lengths from 58mm to 304mm to accommodate various installation spaces.

Superior Technical Specifications

These shaft couplings universal are engineered for high-performance applications:

• Operating Angle: Up to 45° per joint, providing exceptional flexibility for complex drive layouts

• Maximum Speed: Capable of up to 4000 rpm, suitable for high-speed industrial drives

• Material Options: Standard 42CrMo alloy steel with zinc plating for corrosion resistance

• Certification: Manufactured under ISO9001 quality management systems

• Customization: Full OEM, ODM, and OBM support for specialized requirements

Ideal Applications Across Industries

The versatility of our shaft couplings universal makes them indispensable in numerous sectors:

• Construction Machinery: Excavators, loaders, and cranes requiring reliable power transmission at varying angles

• Manufacturing Plants: Conveyor systems, packaging lines, and material handling equipment

• Printing Shops: Precision drives requiring accurate registration and smooth operation

• Energy & Mining: Heavy-duty equipment operating in demanding environments

• Machine Tools: Spindle drives and positioning systems demanding high precision

Why Choose Apex Coupling for Your Universal Joints?

With our extensive experience in power transmission components, Apex Coupling delivers shaft couplings universal that meet the highest standards of quality and reliability. Every joint is backed by our 1-year warranty and commitment to customer satisfaction. We understand that your machinery’s performance depends on every component, which is why we manufacture universal joints built to exceed expectations.

Specify with Confidence

Whether you need standard G/GD type precision universal joints or custom configurations for specialized applications, Apex Coupling has the engineering expertise and manufacturing capability to deliver. Our components are designed to provide years of reliable service in the most demanding environments.

Ready to Optimize Your Power Transmission System? Contact our engineering team today with your application requirements. Request detailed specifications, dimensional drawings, and a competitive quotation for our premium shaft couplings universal.
