PU Open Timing Belt – T5/T10/T20/AT5/AT10/AT20/XL/L/H/3M/5M/8M/S3M/S5M/S8M/RPP Series
Model Number
Check below, custom
Industrial PU Timing Belt
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
PU Open Timing Belt – T5/T10/T20/AT5/AT10/AT20/XL/L/H/3M/5M/8M/S3M/S5M/S8M/RPP Series
Factory Direct | Thermoplastic Polyurethane (TPU) | Steel Wire or Kevlar Core | Open-Ended, Cut-to-Length | 1000-20000mm Length | Custom Width & Pitch | OEM/ODM | No MOQ
The Apexcoupling PU Open Timing Belt series is a high-performance polyurethane synchronous belt designed for precision power transmission and linear motion applications. Manufactured from premium thermoplastic polyurethane (TPU) with steel wire or Kevlar tension members, these belts deliver exceptional wear resistance, high tensile strength, and accurate, slip-free synchronous transmission. Available in open-ended (cut-to-length) format, these belts can be supplied in any length from 1000mm to 20000mm, offering maximum flexibility for custom machinery and conveyor systems. With a comprehensive range of pitch profiles – T5, T10, T20, AT5, AT10, AT20, XL, L, H, 3M, 5M, 8M, S3M, S5M, S8M, RPP3M, RPP5M, RPP8M – and customizable belt width, the PU timing belt is the ideal solution for packaging machinery, printing equipment, conveying systems, textile machinery, medical devices, and factory automation.
✅ Open-ended design – cut to any length from 1000-20000mm for maximum flexibility [2†L18-L20]. Thermoplastic polyurethane (TPU) – excellent wear resistance, oil resistance, and chemical resistance [1†L46-L48][4†L18-L19]. Steel wire or Kevlar core – high tensile strength and dimensional stability [2†L23]. No dust generation – clean operation for sensitive environments [4†L14][4†L20-L21]. No MOQ – sample orders welcome. 48-hour shipment for stocked items. OEM/ODM support – hole punching, teeth milling, coating available.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Apexcoupling |
| Product Name | PU Open Timing Belt / Polyurethane Synchronous Belt |
| Material | Thermoplastic polyurethane (TPU) – high abrasion resistance, oil resistance, chemical resistance [4†L18-L19] |
| Tension Member | Steel wire (standard) / Kevlar (optional) [2†L23] |
| Type | Open-ended (cut-to-length) – no pre-fixed ring structure [2†L18-L19] |
| Length Range | 1000 – 20000 mm (custom cut-to-length) [2†L29][2†L33] |
| Cut Tolerance | ±10 mm [2†L33] |
| Belt Width | Customizable |
| Thickness | 0.53 – 10 mm |
| Color | Black (standard), White (food-grade option) |
| Tooth Surface | Fabric (standard) – reduces friction and noise |
| Processing | Cut, hole punching, teeth milling, coating (custom) |
| Pitch Profiles | T5, T10, T20, AT5, AT10, AT20, XL, L, H, 3M, 5M, 8M, S3M, S5M, S8M, RPP3M, RPP5M, RPP8M [3†L7-L9][3†L10-L11] |

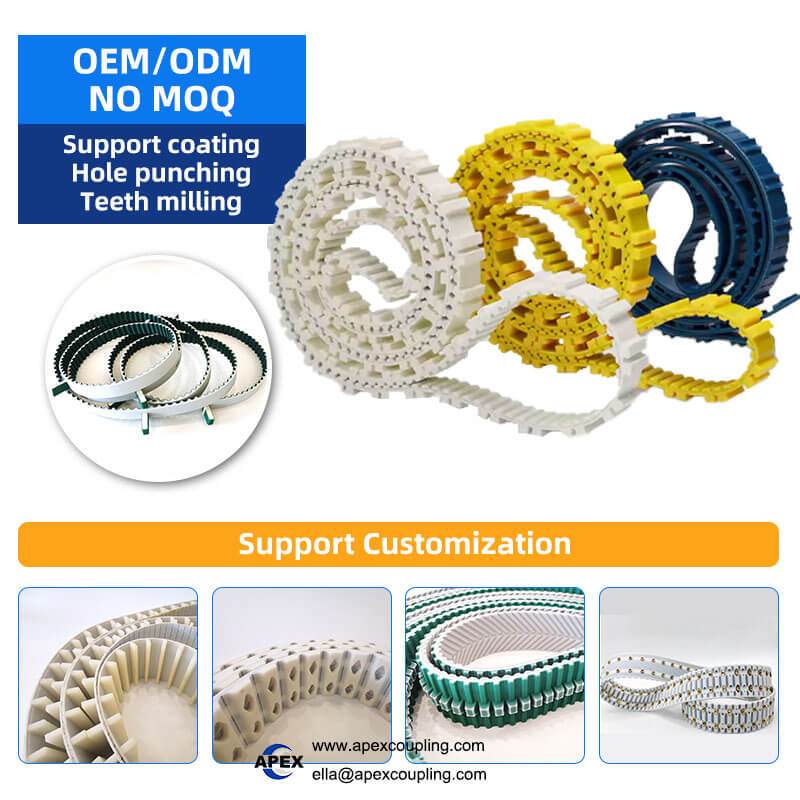

| Customization | OEM – custom width, length, pitch, hole punching, teeth milling, coating |
| MOQ | None – sample orders welcome |

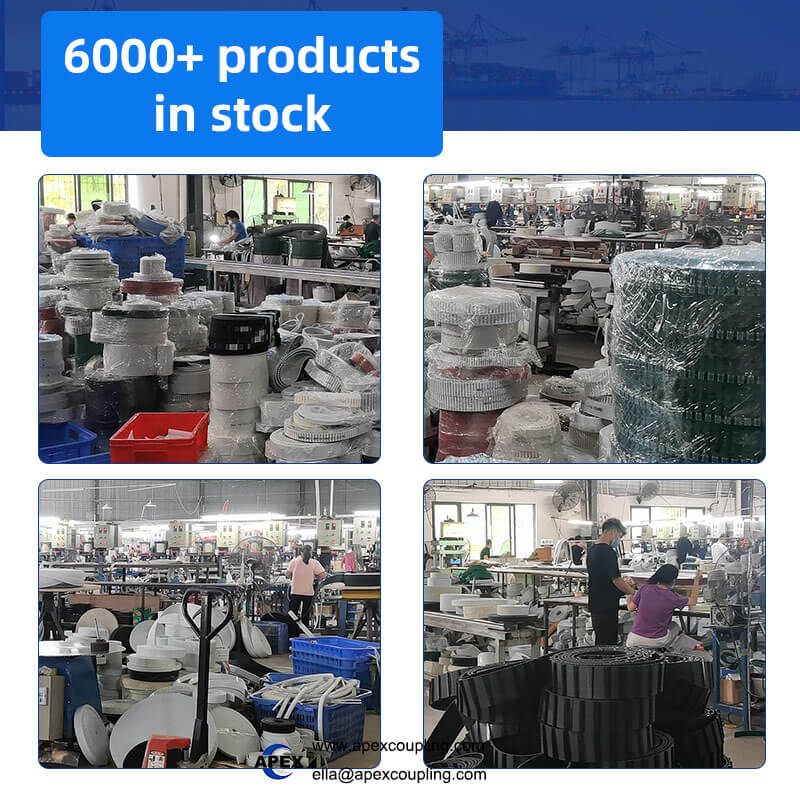

| Stock | 6000+ products in stock |
| Lead Time | 48 hours shipment for stocked items |
| Applicable Industries | Packaging machinery, printing equipment, conveying systems, textile machinery, medical devices, factory automation, advertising, construction, food processing |
| Place of Origin | Guangdong, China |
🔧 Custom lengths, widths, hole punching, teeth milling, and special coatings available. Contact us with your specifications.

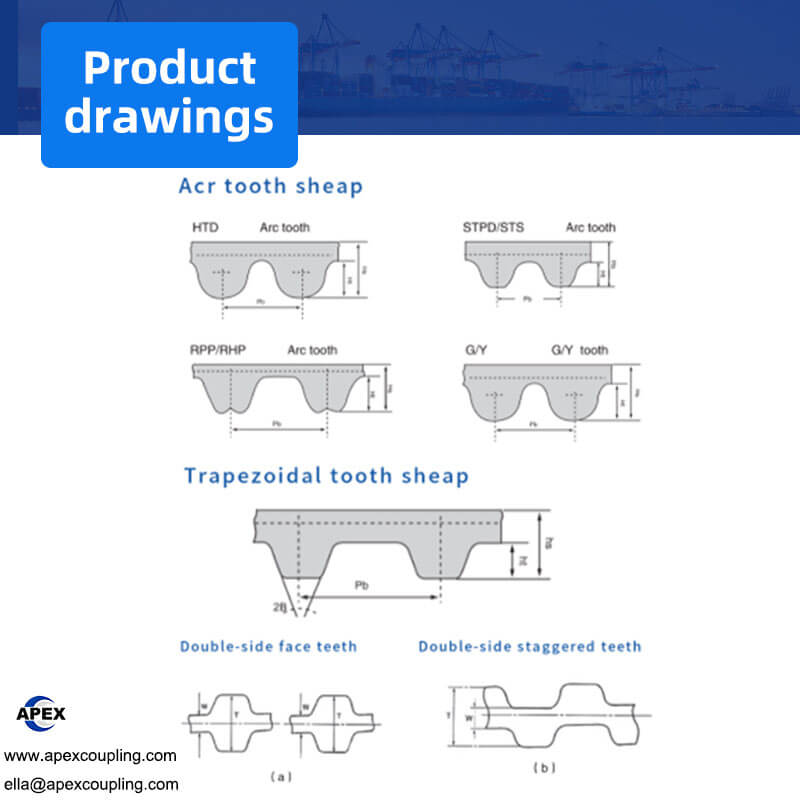

Pitch Profile Overview – Choose the Right Belt
| Pitch Profile | Pitch (mm) | Tooth Height (mm) | Belt Thickness (mm) | Typical Applications |
|---|---|---|---|---|
| T5 | 5 | 1.2 | 2.2 | Light-duty conveying, small drives [3†L10] |
| T10 | 10 | 2.5 | 4.5 | General industrial conveying [3†L10-L11] |
| T20 | 20 | – | – | Heavy-duty conveying |
| AT5 | 5 | 1.2 | 2.7 | High torque, precision positioning [3†L6] |
| AT10 | 10 | – | – | Medium-duty conveying, linear drives |
| AT20 | 20 | – | – | Heavy-duty linear drives |
| XL | 5.08 | 1.27 | 2.3 | Light-duty, small machinery [3†L6] |
| L | 9.525 | – | – | Medium-duty drives |
| H | 12.7 | – | – | Heavy-duty drives |
| 3M | 3 | – | – | Precision, compact drives |
| 5M | 5 | – | – | General industrial, high torque |
| 8M | 8 | – | – | Heavy-duty, high torque |
| S3M | 3 | – | – | High precision, compact [3†L13] |
| S5M | 5 | – | – | High precision, general industrial |
| S8M | 8 | – | – | High precision, heavy-duty |
| RPP3M | 3 | – | – | Round profile, high precision |
| RPP5M | 5 | – | – | Round profile, general industrial |
| RPP8M | 8 | – | – | Round profile, heavy-duty |
📐 Custom pitch profiles and dimensions available upon request. Contact our engineering team for custom sizing.
Product Structure
Thermoplastic Polyurethane (TPU) Body – Provides excellent wear resistance, oil resistance, and chemical resistance [4†L18-L19].
Tension Members – Steel wire or Kevlar reinforcement for high tensile strength and dimensional stability [2†L23].
Tooth Profile – Precision-molded teeth for accurate, slip-free synchronous transmission [0†L45-L47].
Open-Ended Design – No pre-fixed ring structure – can be cut to any length [2†L18-L20].
💡 How it works: The PU timing belt is a toothed belt that drives precision equipment with a pattern of teeth that mate to timing belt pulleys or idlers [0†L45-L47]. The open-ended design allows the belt to be cut to any required length, making it ideal for custom conveyor systems, linear drives, and power transmission applications [2†L18-L20]. The steel wire or Kevlar reinforcement provides high tensile strength and prevents belt stretch under load [2†L23].
Product Features & Advantages
| Advantage | Benefit |
|---|---|
| Open-Ended Design | Cut to any length – maximum flexibility for custom applications [2†L18-L20] |
| Thermoplastic Polyurethane | Excellent wear resistance, oil resistance, and chemical resistance – long service life [1†L46-L48][4†L18-L19] |
| Steel Wire / Kevlar Core | High tensile strength, no stretch, dimensional stability [2†L23] |
| Accurate Synchronous Transmission | No slip – constant rotation rate, precise positioning [0†L45-L47] |
| No Dust Generation | Clean operation – ideal for food, medical, and sensitive environments [4†L14][4†L20-L21] |
| Customizable Length | 1000-20000mm – any length available [2†L29][2†L33] |
| Customizable Width | Any width available – match your application requirements |
| Multiple Pitch Profiles | T, AT, XL, L, H, M, S, RPP series – choose the right pitch for your application [3†L7-L9] |
| OEM Customization | Hole punching, teeth milling, coating – fully customizable |
| No MOQ | Sample orders welcome – test before bulk purchase |
| Fast Delivery | 48-hour shipment for stocked items |
Applications
Packaging Machinery – Conveyor belts, wrapping machines, carton sealers [0†L21-L23]
Printing Equipment – Paper feed, register control, screen printing [4†L14-L15][4†L26-L27]
Conveying Systems – Material handling, assembly lines, food processing [2†L42-L43]
Textile Machinery – Spinning, weaving, finishing equipment
Medical Devices – Clean, dust-free operation [4†L15]
Factory Automation – Linear drives, pick-and-place systems, robotics [4†L7-L8]
Advertising Equipment – Signage, labeling machines, bag-making machines [4†L26-L27]
Food Processing – Food-grade white belts available [0†L41-L42]
Glass & Ceramic Conveying – Electronic and aluminum profile conveying [4†L28]
Office Equipment – Printers, copiers, scanners [4†L40-L42]
Why Choose Apex Coupling for PU Timing Belts?
| Advantage | Description |
|---|---|
| Factory Direct | Competitive B2B pricing – no middlemen |
| Premium TPU Material | High-quality thermoplastic polyurethane – excellent wear and chemical resistance [4†L18-L19] |
| Open-Ended Flexibility | Cut-to-length – any length from 1000-20000mm [2†L18-L20] |
| Wide Pitch Range | T5 to RPP8M – covers all standard industrial pitch profiles [3†L7-L9] |
| OEM Customization | Hole punching, teeth milling, coating – fully customizable |
| No MOQ | Sample orders welcome |
| Fast Delivery | 48-hour shipment for stocked items |
| 6000+ Products in Stock | Wide range of standard sizes ready to ship |
| ISO9001 Certified | Quality assured manufacturing |
FAQ
Q: What is an open-ended PU timing belt?
A: An open-ended PU timing belt is a polyurethane synchronous belt without a pre-fixed ring structure. It can be cut to any length as needed, greatly improving flexibility and customization [2†L18-L20].
Q: What materials are used?
A: The belt body is made of thermoplastic polyurethane (TPU) with steel wire or Kevlar tension members [2†L23][4†L18-L19].
Q: What is the length range?
A: Length range is 1000 – 20000 mm with a cut tolerance of ±10 mm [2†L29][2†L33].
Q: What pitch profiles are available?
A: Available profiles include T5, T10, T20, AT5, AT10, AT20, XL, L, H, 3M, 5M, 8M, S3M, S5M, S8M, RPP3M, RPP5M, RPP8M [3†L7-L9][3†L10-L11].
Q: Can the belt be customized?
A: Yes. We offer OEM customization – custom length, width, hole punching, teeth milling, and coating.
Q: Is there a minimum order quantity?
A: No. Sample orders are welcome – no MOQ.
Q: What is the lead time?
A: Stocked items ship within 48 hours.
Q: Is the belt suitable for food processing?
A: Yes. White food-grade PU belts are available [0†L41-L42].
Q: Does the belt generate dust?
A: No. PU timing belts have no dust generation or flaking during operation – clean belt [4†L14][4†L20-L21].
Request a Quote
Send us your pitch profile, belt width, length, and any customization requirements (hole punching, teeth milling, coating). Our engineers will recommend the optimal belt and provide a quotation within 24 hours.
