Engineered for Accuracy: Premium Precision U Joints for Demanding Drives

In applications where exact angular power transmission and minimal backlash are critical, precision u joints are the undisputed solution. Apexcoupling specializes in manufacturing high-grade precision u joints of the G and GD series, engineered with German-inspired craftsmanship to deliver exceptional stability and longevity. These are not standard universal joints; they are precision u joints built for applications demanding tight tolerances, high speeds, and reliable performance under load. Manufactured from high-strength 42CrMo alloy steel and featuring an H7 precision bore, our precision u joints guarantee a perfect fit and smooth operation, making them the preferred choice for advanced machinery and automated systems.

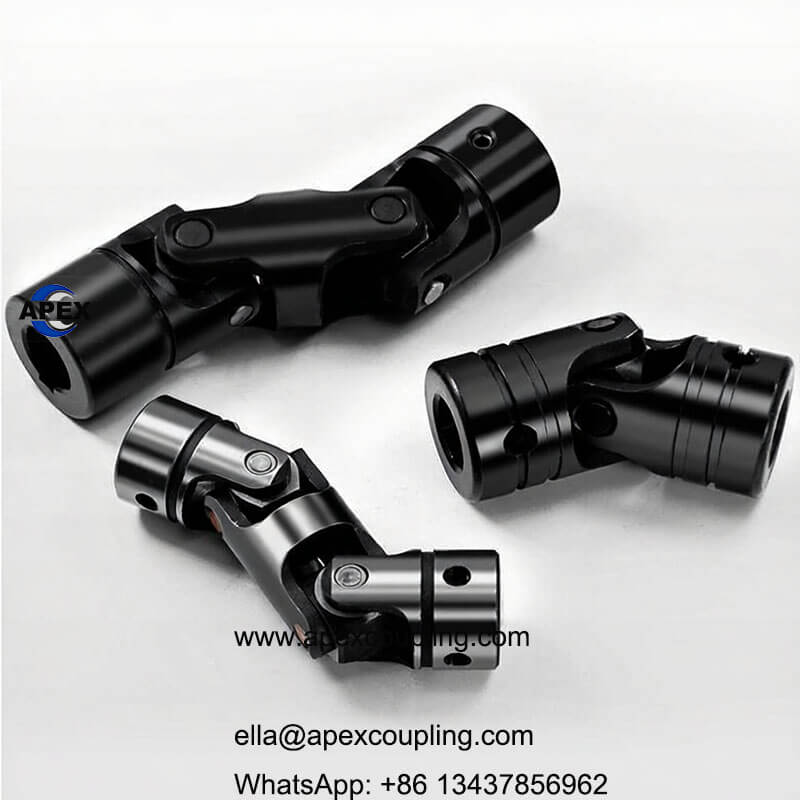

Our precision u joints are available in both single-joint (GD) and double-joint (G) configurations, providing flexible solutions for connecting shafts at angles. Each joint in our precision u joints allows a maximum operating angle of 45°, with a recommended working angle of up to 30° for optimal performance and service life. We offer two distinct versions to suit your specific needs: a heavy-duty pin-type for high-torque, lower-speed applications (up to 1000 RPM), and a needle bearing type within our precision u joints for high-speed operations (up to 4000 RPM). This focus on tailored performance defines our approach to precision u joints.

Why Our Precision U Joints Stand Out

Choosing our precision u joints provides engineers with distinct, measurable advantages:

• Superior Accuracy: H7 tolerance bores ensure a precise, slip-free connection to the shaft, a hallmark of true precision u joints.

• Exceptional Durability: The core is made from 42CrMo alloy steel (HRC 48-52) with bearing pins of HRC 56-58, ensuring our precision u joints are wear-resistant and built for high torque.

• High-Speed Capability: The needle bearing version of our precision u joints is balanced and designed for smooth operation at speeds up to 4000 RPM.

• Full Customization: We support OEM/ODM requests, tailoring the material (e.g., stainless steel), finish, bore type, and mounting style of your precision u joints.

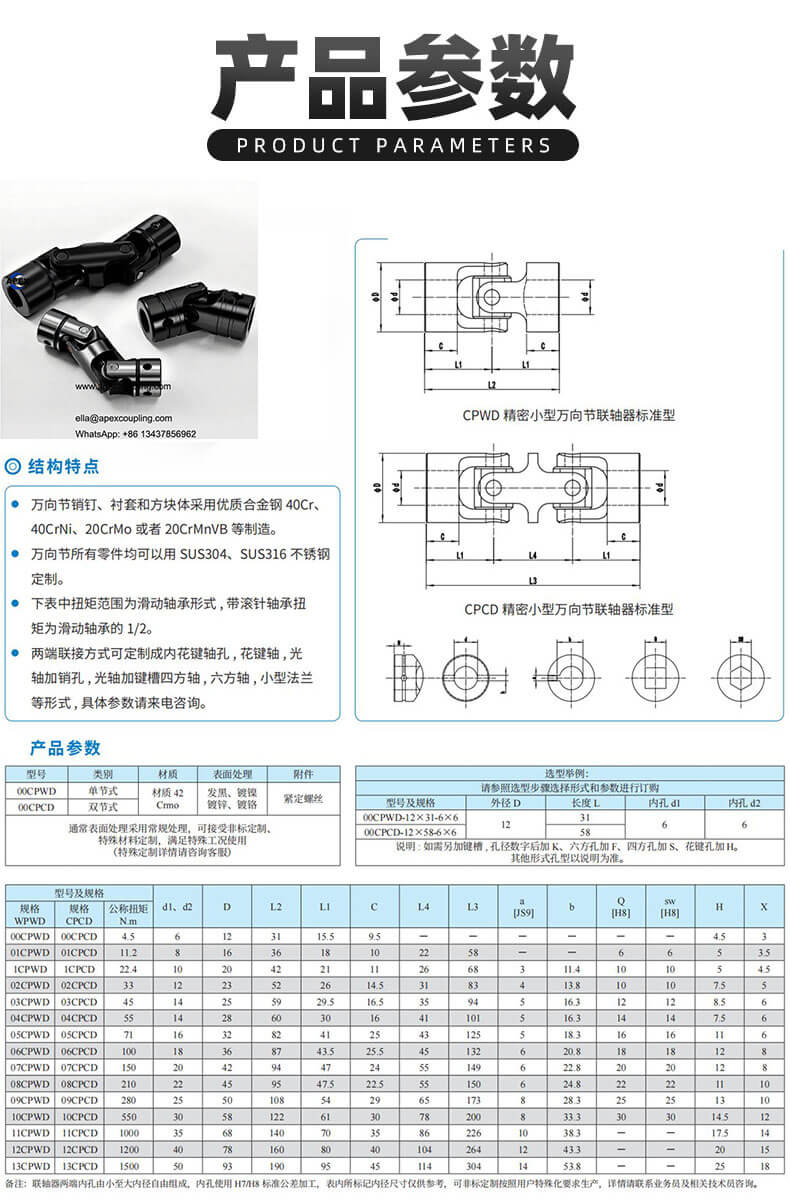

Technical Specifications of Our Precision U Joints

Applications for High-Performance Precision U Joints

Our precision u joints are designed for accuracy-critical sectors:

• Advanced Manufacturing: Multi-axis CNC equipment, automated assembly lines, and precision drills.

• Packaging & Processing: High-speed packaging machines and converting equipment.

• Specialty Machinery: Medical devices, testing apparatus, and robotics requiring reliable angular drives.

• Printing & Textile: Where precise roller synchronization is vital.

Your Partner for Custom Precision U Joint Solutions

Apexcoupling is a leading Chinese manufacturer with a strong focus on quality and technical support. We combine robust production capacity with engineering expertise to deliver both standard and fully custom precision u joints. Our inventory of semi-finished components allows for shorter lead times on customized projects. We provide comprehensive technical documentation and direct factory support for your OEM integration.

Inquire About Your Precision U Joints Project

Need precision u joints that match your exact specifications for torque, speed, and interface? Contact us with your application details. Our team will provide expert selection guidance and a competitive quotation for standard or custom precision u joints.

For technical catalogs and to explore our full range of coupling solutions, visit www.apexcoupling.com. Let us provide the precise, durable drive component your application requires.
