Pin Coupling: The Proven Solution for Reliable Power Transmission with Vibration Damping

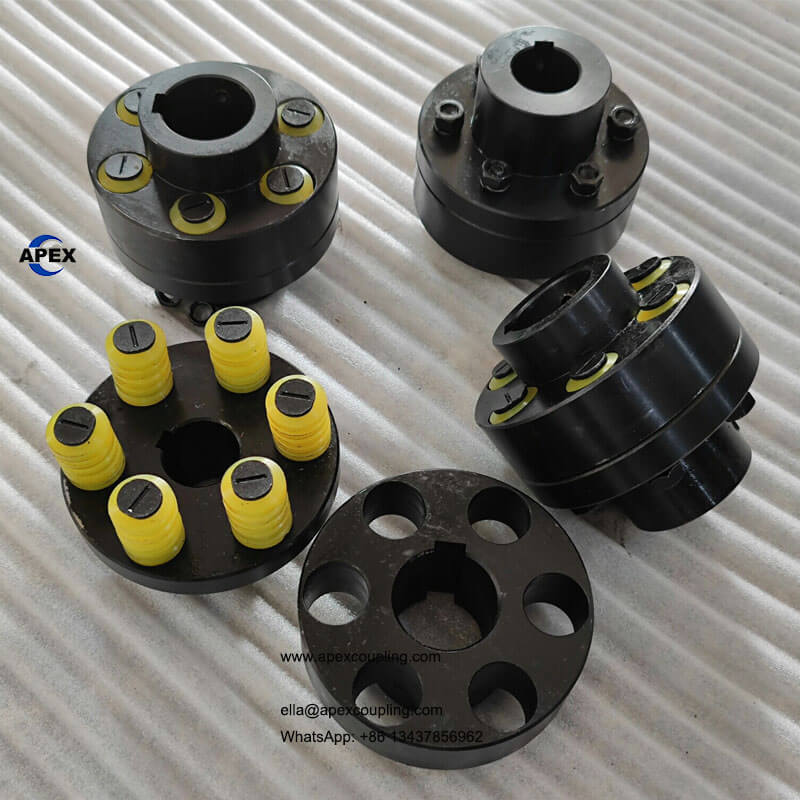

In the field of mechanical power transmission, the pin coupling has established itself as a reliable and versatile component for connecting rotating machinery. Also known as an elastic pin coupling or flexible pin coupling, this design utilizes elastomeric or nylon elements to provide effective vibration damping while accommodating minor misalignments. The LT and LX series pin couplings from Apex Coupling represent the pinnacle of this trusted technology, combining precision-machined 45# steel hubs with high-quality elastic elements to deliver exceptional performance in applications ranging from mask machines to industrial drives. When your system demands a pin coupling that offers durability, flexibility, and maintenance-free operation, our LT/LX series provides the ideal solution.

Superior Materials for Extended Service Life

What sets our pin coupling apart is the meticulous attention to material quality and manufacturing precision:

• 45# Steel Hubs: The coupling hubs are precision-machined from high-strength 45# steel, a material known for its excellent strength, good plasticity, outstanding wear resistance, and wide application range. Each hub undergoes black oxide surface treatment, providing enhanced corrosion resistance and a professional black finish while maintaining precise dimensional accuracy.

• Nylon Elastic Elements: The heart of this pin coupling is its precision-molded nylon elastic elements. This advanced material offers:

  • High strength and wear resistance for long service life

  • Excellent corrosion resistance for use in harsh environments

  • Superior damping characteristics for vibration absorption

  • Consistent performance across the operating temperature range

• Steel Brake Wheel Option: For LXZ series pin couplings, the steel brake wheel outer surface undergoes quenching treatment, providing enhanced durability and wear resistance for demanding applications.

Precision Engineering for Optimal Performance

Every pin coupling from Apex Coupling is manufactured to exacting standards:

• GB/T Standards Compliance: Our LT series complies with GB/T 4323-2002 (replacing GB4323-84), and our LX series complies with GB/T 5014-1985 (2003) , ensuring compatibility and interchangeability with industry-standard components.

• Operating Temperature Range: Designed for reliable operation in temperatures from -20°C to +70°C, ensuring consistent performance across diverse environments.

• Vibration Damping: The elastic pin design provides effective compensation for misalignment and excellent vibration absorption, protecting connected equipment from shock loads.

• Versatile Bore Configurations: Available with various shaft hole types per GB/T 3852-1997, including J-type and Z-type configurations. Keyway types A, B, and C are available to match your specific requirements.

Key Advantages of Pin Coupling Design

The pin coupling offers numerous benefits for power transmission systems:

• Misalignment Compensation: The clearance between the elastic sleeve and the flange holes, combined with elastic sleeve deformation, allows the pin coupling to effectively compensate for both angular and parallel misalignment.

• Vibration Damping: The elastic elements absorb torsional vibrations and shock loads, protecting sensitive equipment.

• Maintenance-Friendly: The simple design allows for easy inspection and replacement of elastic elements without disturbing hub alignment.

• Corrosion Resistance: Nylon elastic elements provide excellent resistance to corrosive environments, extending service life.

• Wide Application Range: Suitable for various industrial applications including mask machines, die cutting equipment, and general machinery.

Technical Specifications

• Hub Material: High-quality 45# steel with black oxide finish

• Elastic Element Material: High-strength nylon with excellent wear resistance

• Operating Temperature: -20°C to +70°C

• Shaft Hole Types: J-type, Z-type, and other configurations per GB/T 3852-1997

• Keyway Types: A, B, C per GB/T 3852-1997

• Brake Wheel Option: Available with quenched steel brake wheel surface

Ideal Applications Across Industries

Our pin couplings are widely used in numerous applications:

• Mask Machines: Reliable power transmission for automated mask production equipment

• Die Cutting Machines: Smooth, accurate drives for die cutting and stamping equipment

• Industrial Drives: Pumps, compressors, fans, and blowers requiring reliable power transmission

• Metallurgical Equipment: Rolling mills and material handling systems

• General Machinery: Versatile coupling solutions for diverse industrial applications

Quality Assurance and Customization

Every pin coupling from Apex Coupling is manufactured under strict quality control:

• Material Quality: Premium 45# steel and high-strength nylon ensure long-term reliability

• Precision Manufacturing: CNC machining for consistent quality and accurate fit

• Standard Compliance: Manufactured to GB/T 4323-2002 and GB/T 5014-1985 (2003) standards

• Customization: OEM, ODM, and OBM support for specialized requirements

Why Choose Apex Coupling for Your Pin Coupling Needs?

• Premium Materials: 45# steel and high-strength nylon ensure long-term reliability

• Standard Compliance: Manufactured to industry standards for interchangeability

• Wide Temperature Range: Reliable operation from -20°C to +70°C

• Vibration Damping: Excellent shock absorption for demanding applications

• Factory Direct: Competitive pricing with extensive customization options

• Technical Support: Engineering assistance for selection and application

Ready to Order Your Pin Coupling?

Contact our engineering team today with your application requirements, shaft sizes, and operating parameters. Request detailed specifications, dimensional drawings, and a competitive quotation for our premium pin couplings. Experience the Apex difference in quality, precision, and service.
