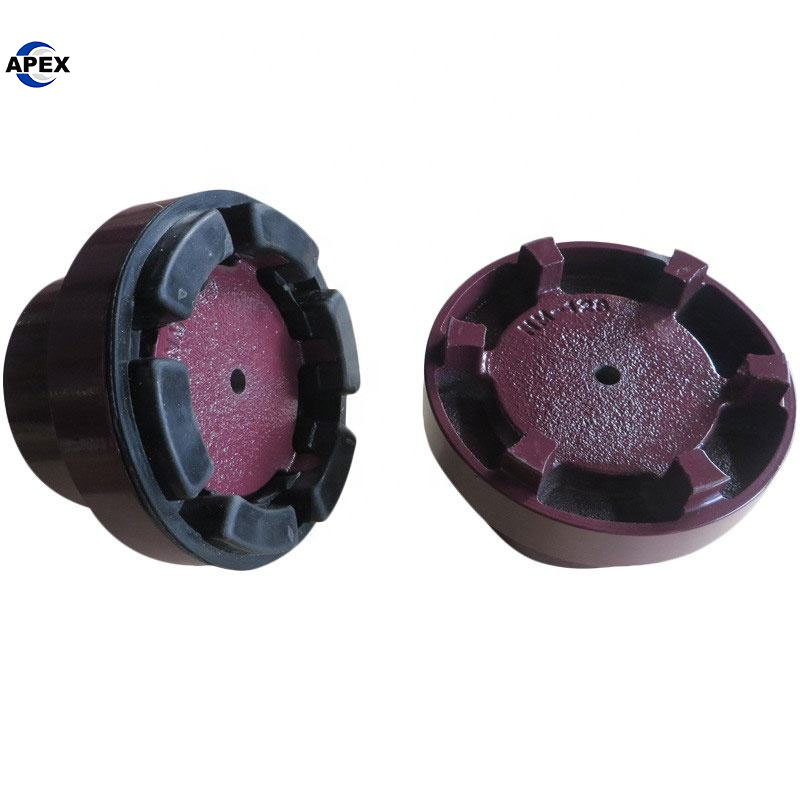

Our NM Series Flexible Coupling is an essential component for efficient and reliable power transmission between motors and driven equipment, specifically designed for pump applications. This flexible motor coupler features a robust cast iron body and a durable, non-metallic spider insert that effectively absorbs vibration, compensates for minor misalignments (parallel, angular, and axial), and dampens shock loads. This protection extends the lifespan of both the motor and the pump.

Engineered for high-speed operation and significant torque transmission, this coupling is compact, lightweight, and requires no lubrication, ensuring minimal maintenance. With a wide range of sizes and shaft hole diameters available, our standard flexible coupling offers a cost-effective and versatile solution for various industrial settings, including HVAC systems, water treatment plants, and manufacturing facilities. Its simple design allows for easy installation and replacement, reducing downtime.

Features

• Material: High-Grade Cast Iron body for superior strength and longevity.

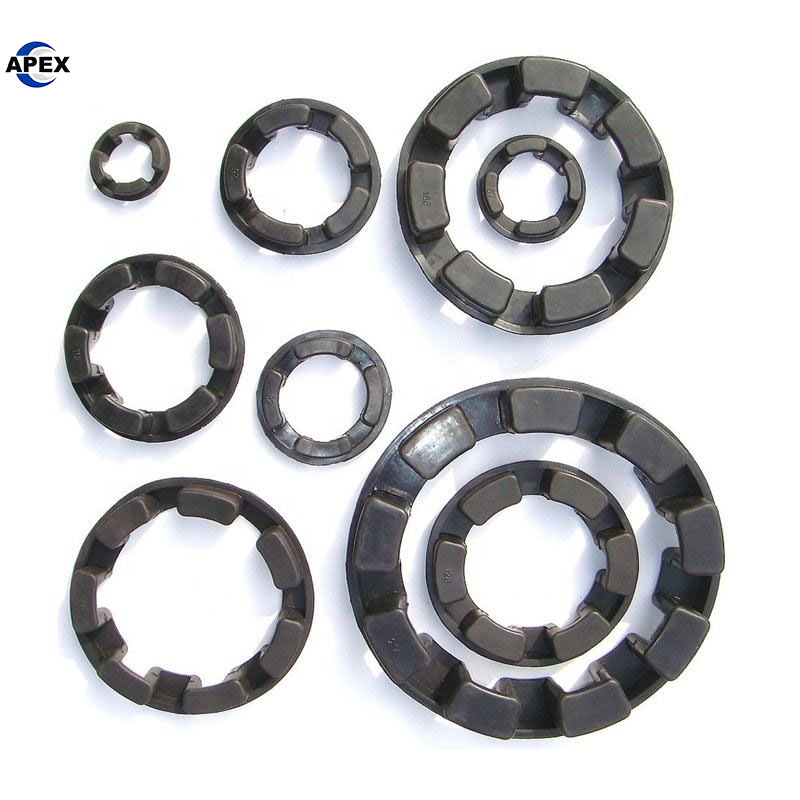

• Spider Insert: Non-metallic (e.g., Nylon, Polyurethane) spider for flexibility, vibration damping, and electrical insulation.

• Standard Design: Conforms to industry standards (e.g., B1104) for easy replacement and compatibility.

• Zero Lubrication: Maintenance-free operation, saving time and cost.

• Easy Installation: Simple design allows for quick assembly and disassembly, minimizing downtime.

• Customizable: Available in various sizes and colors to meet specific application requirements.

Description

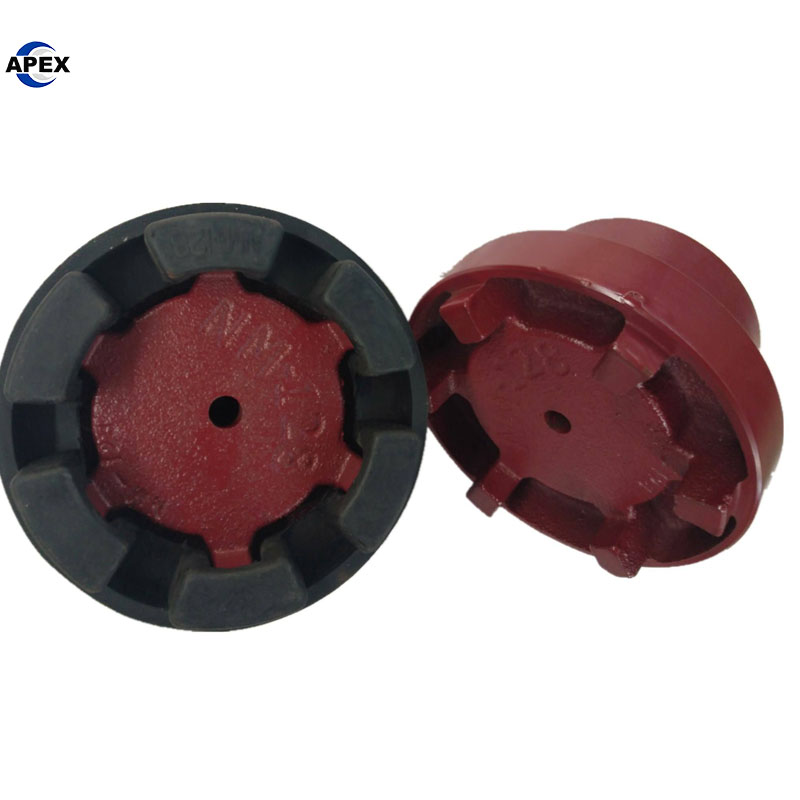

The NM Series Flexible Coupling is engineered to create a resilient connection between two shafts. It transmits torque through a cylindrical, non-metallic spider element positioned between the two coupling halves. This design is particularly suited for high-speed applications with substantial torque requirements and without sharp impacts, making it a premier choice for connecting motors to pumps. The flexibility of the spider element accommodates misalignment, protects bearings, and ensures smooth power transmission. As a leading supplier, we provide these couplings in a comprehensive size range to fit various motor and pump shaft dimensions, ensuring you find the perfect fit for your machinery.

Specifications

 (Advantages)

• flexible coupling for pump motor

• high torque flexible motor coupler

• cast iron flexible shaft coupling

• nm series flexible coupling

• flexible jaw coupling for motor

• standard flexible coupling sizes

• flexible coupling for high speed motor

• non-metallic spider coupling
