NM Jaw Coupling – Flexible Rubber Shaft Coupling for Pump & Motor
Model Number
Check below, custom
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
🔧 Product Overview
The jaw coupling is a flexible shaft coupling designed for efficient power transmission in pumps and motors. This NM jaw coupling consists of two cast iron hubs and a high-quality rubber insert, providing excellent vibration damping and shock absorption.
The jaw coupling ensures stable operation, low noise, and long service life, making it ideal for industrial machinery.

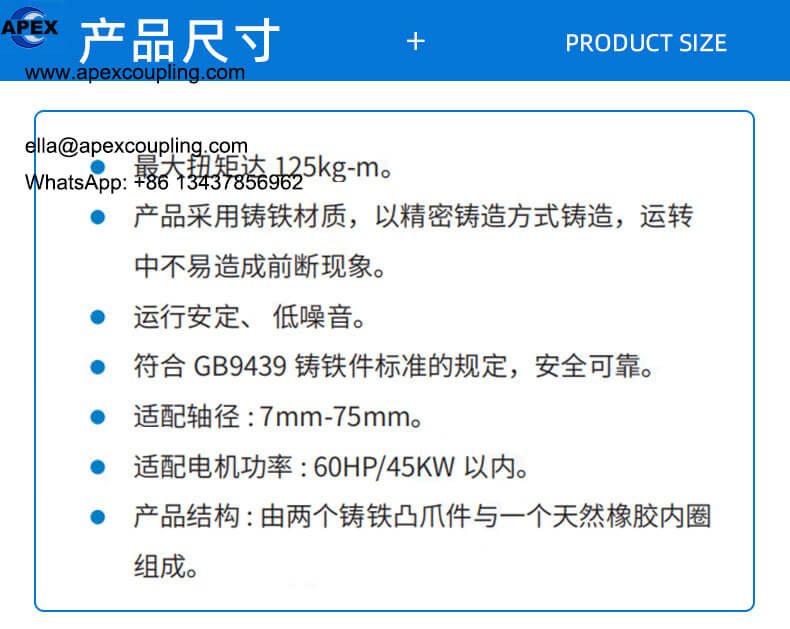

⚙️ Features of Jaw Coupling
- High torque capacity up to 125 kg·m
- Rubber insert for vibration damping
- Durable cast iron construction
- H7 precision bore for accurate fit
- Easy installation and maintenance
🏭 Applications of Jaw Coupling
This jaw coupling is widely used in:
- Water pumps
- Electric motors
- CNC machines
- Packaging machinery
🏭 Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Jaw Coupling |
| Series | NM |
| Material | Cast Iron + Rubber |
| Bore Tolerance | H7 |
| Torque | Up to 125 kg·m |
| Shaft Range | 7–75 mm |
| Power Range | ≤ 45 KW |
| Structure | Two hubs + rubber insert |

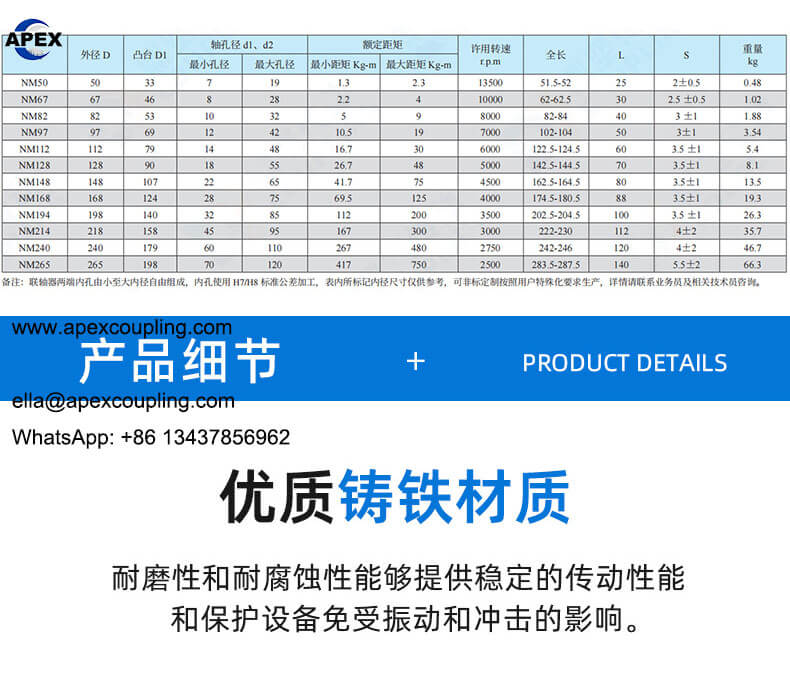

📏 Available Models
| Model | D1 (mm) | D2 (mm) | OD (mm) | Length (mm) |
|---|---|---|---|---|
| NM50 | 7 | 19 | 50 | 25 |
| NM67 | 8 | 28 | 67 | 30 |
| NM82 | 10 | 32 | 82 | 40 |
| NM97 | 12 | 42 | 97 | 50 |
| NM112 | 14 | 48 | 112 | 60 |
| NM128 | 18 | 55 | 128 | 70 |
| NM148 | 22 | 65 | 148 | 80 |
| NM168 | 28 | 75 | 168 | 88 |
| NM194 | 32 | 85 | 198 | 100 |
| NM214 | 45 | 95 | 218 | 112 |
🏆 Why Choose Our Jaw Coupling
- Factory direct supply
- Custom sizes available
- High quality materials
- Reliable performance
📞 CTA
Looking for a reliable jaw coupling supplier? Contact us today for a fast quote!
Product Show

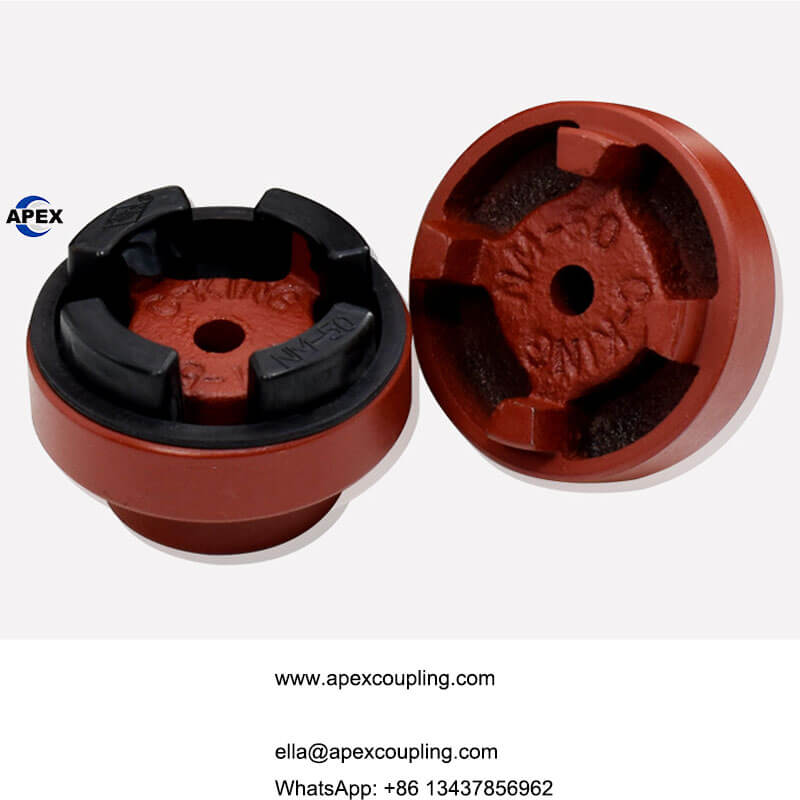

Jaw coupling
