Lovejoy Curved Jaw Coupling - Precision Flexible Shaft Couplings for Industrial Applications
Model Number
One keyway(lf a keyway needsto be made)
D14-L22 d(min)3-d(max)6
D20-L25 d(min)3-d(max)10
D20-L30d(min)3-d(max)10
D25-L30 d(min)4-d(max)14
D25-L34 d(min)4-d(max)14
D30-L35 d(min)5-d(max)16
D30-L40d(min)5-d(max)16
D35-L32d(min)5-d(max)18
D35-L50 d(min)5-d(max)19
D40-L50 d(min)6-d(max)24
D40-L55 d(min)6-d(max)24
D40-L66 d(min)8-d(max)25
D45-L55 d(min)8-d(max)25
D50-L55d(min)8-d(max)25
D55-L49 d(min)12-d(max)32
D55-L78 d(min)12-d(max)32
D65-L90d(min)14-d(max)40
D80-L114 d(min)14-d(max)45
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description

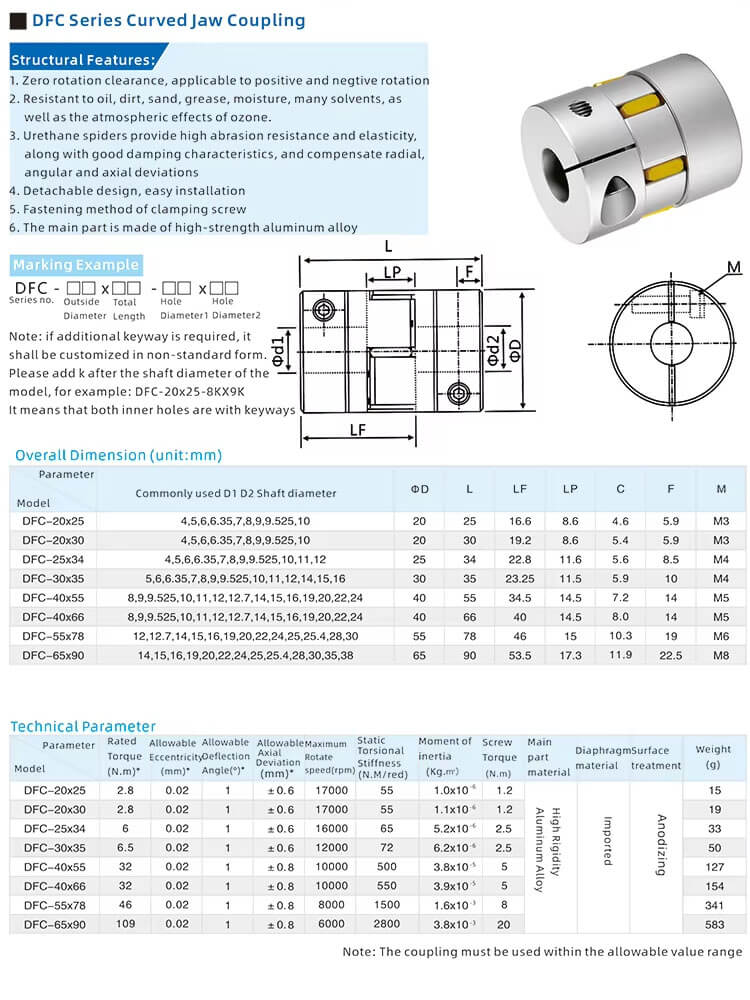

Product Details: Lovejoy Curved Jaw Coupling
The Lovejoy Curved Jaw Coupling by Apexcoupling is a state-of-the-art flexible shaft coupling engineered for industrial applications requiring precision, durability, and reliability. This coupling is ideal for CNC machines, printing shops, and other machinery that demands smooth power transmission and misalignment compensation.
Key Features:
- Zero Rotation Clearance: Ensures smooth, backlash-free operation, making it perfect for positive and negative rotation applications.
- Oil and Chemical Resistance: Resistant to oil, dirt, sand, grease, moisture, solvents, and atmospheric effects like ozone, ensuring long-lasting performance in harsh environments.
- High-Elasticity Urethane Spider: Provides excellent abrasion resistance, elasticity, and damping characteristics, compensating for radial, angular, and axial misalignments.
- Detachable Design: Easy to install and maintain, with a clamping screw fastening method for secure attachment.
- Aluminum Construction: The main body is made of high-strength aluminum alloy, offering lightweight yet robust performance.
Specifications:
- Type: Flexible
- Bore Diameter: 2–22mm
- Rated Torque: 28Nm
- Maximum Speed: 13,000 RPM
- Structure: Jaw/Spider
- Material: Aluminum
- Customization: Supports OEM/ODM for tailored solutions.
- Applicable Industries: Printing shops, CNC machinery, and more.
Why Choose Our Lovejoy Curved Jaw Coupling?
- Precision Engineering: Designed for high-performance applications, ensuring minimal vibration and noise.
- Durability: Resistant to wear and environmental factors, extending the lifespan of your machinery.
- Versatility: Suitable for a wide range of industries and applications.
- Customizable: Tailored to meet specific requirements with OEM/ODM support.
Product Show

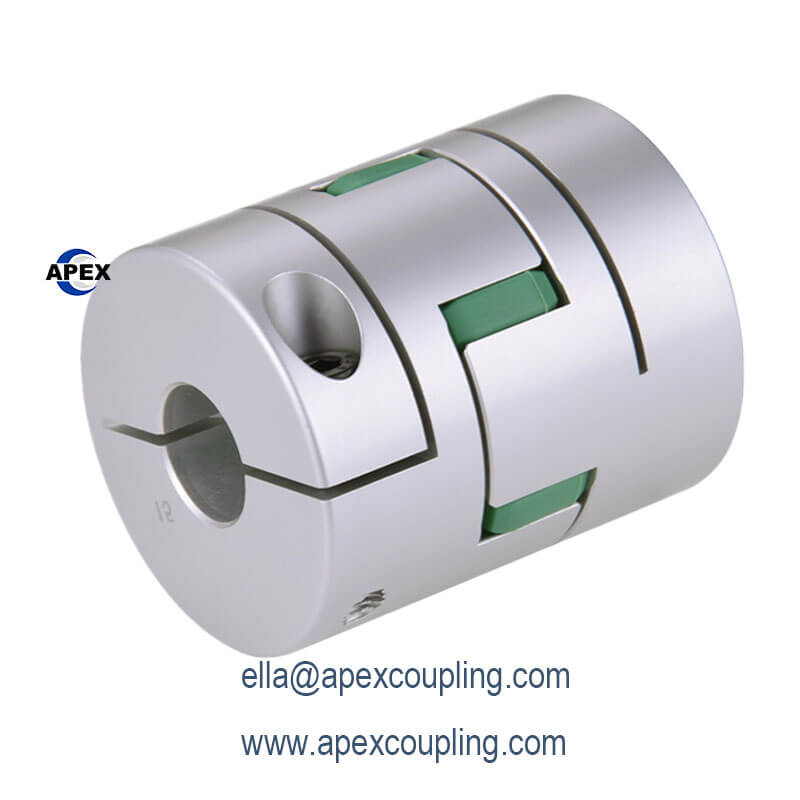

lovejoy curved jaw coupling
