L Type Jaw Coupling - High-Speed Flexible Jaw Type Coupling with NBR Spider for Industrial Equipment
Model Number
L035
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Features
High-Speed Operation: Suitable for up to 30,000 RPM applications
NBR Rubber Spider: Excellent resistance to oil and chemicals
Wide Temperature Range: Operates from -40°C to 100°C
Compact & Lightweight: Minimal space requirements (0.03kg mass)
Maintenance-Free: No lubrication required
Easy Installation: Simple pull-out design for quick maintenance
Standard Bore Sizes: 3mm to 8mm (3/8″) available
Black Oxide Surface: Enhanced corrosion protection
Economical Design: Cost-effective without compromising performance
Flexible Performance: Effective vibration damping and misalignment compensation
- Â
Description
Our L Type Jaw Coupling represents the ideal solution for precision power transmission where reliability and compact design are paramount. This versatile jaw type coupling combines robust steel hubs with a flexible NBR rubber spider element, creating a jaw coupling system that effectively absorbs shock loads, dampens vibrations, and compensates for minor misalignments. The innovative design of this jaw coupling allows for easy installation and maintenance, featuring a simple pull-out mechanism that facilitates quick spider replacement without disassembling connected equipment. As a high-performance jaw type coupling, it delivers smooth power transmission even in challenging environments thanks to its wide temperature tolerance and excellent resistance to oils and chemicals. Whether for pumps, high-speed motors, or compact drive systems, this jaw coupling provides the perfect balance of performance, durability, and value.
Â
Specifications
| Parameter | Value |
|---|---|
| Applicable Industries | Manufacturing Plants, Machinery Repair Shops |
| Body Material | Steel |
| Spider Material | NBR Rubber |
| Structure | Jaw / Spider |
| Standard/Nonstandard | Standard |
| Flexible or Rigid | Flexible |
| Standard Bore | 3mm |
| Maximum Bore | 8mm (3/8″) |
| Rotational Speed | 30,000 RPM |
| Temperature Range | -40°C to 100°C |
| Weight | 0.03kg |
| Package Size | 30×30×30 cm |
| Package Weight | 0.500 kg |
Advantages
| Advantage | Description |
|---|---|
| Cost-Effective | Economical design provides excellent value for industrial applications. |
| Easy Maintenance | Simple pull-out design allows for quick spider replacement. |
| Compact Design | Lightweight construction with minimal space requirements. |
| Chemical Resistance | NBR rubber spider resists oils and chemicals effectively. |
| High-Speed Capability | Handles rotational speeds up to 30,000 RPM reliably. |
| Temperature Resistant | Performs consistently across wide temperature range (-40°C to 100°C). |
| Maintenance-Free | No lubrication required, reducing operational costs. |
Â
l type jaw coupling for pumps
high speed jaw type coupling
flexible jaw coupling with nbr spider
8mm bore jaw type coupling
industrial jaw coupling for motors
compact jaw type coupling
jaw coupling replacement spider
temperature resistant jaw coupling

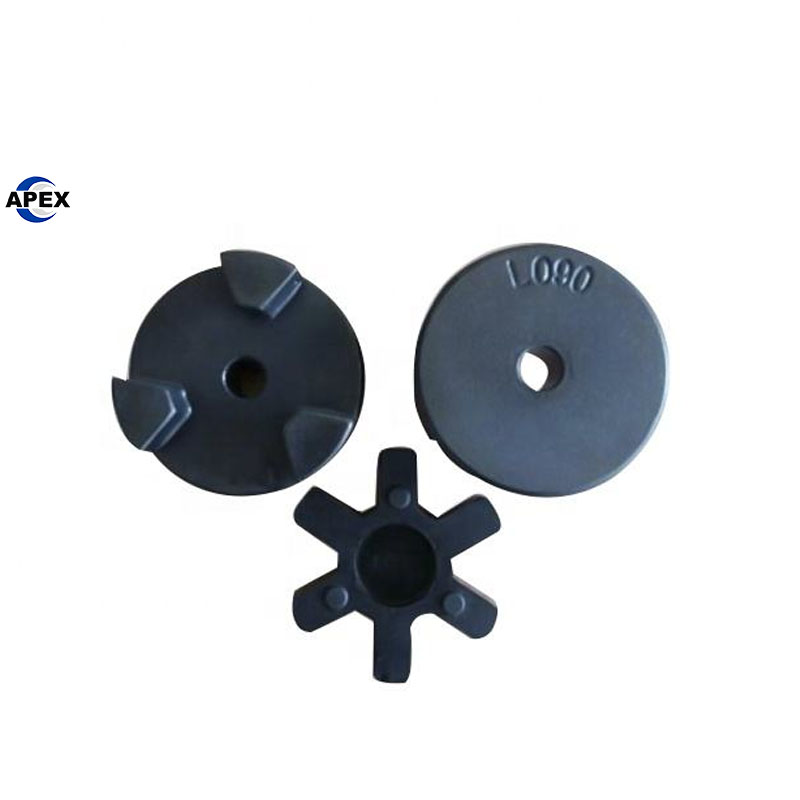

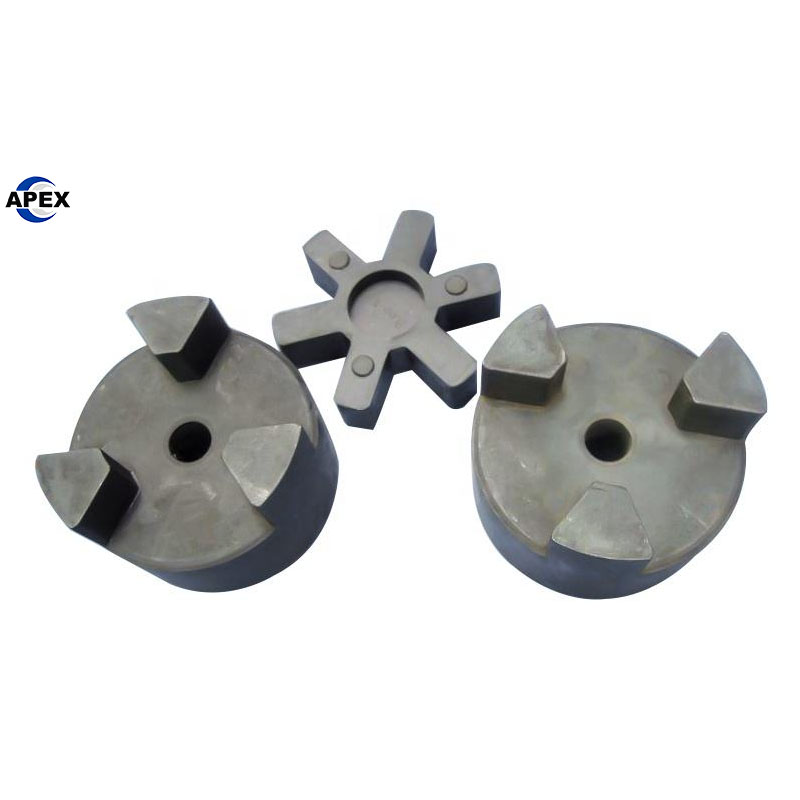

Product Show
L Type Jaw Spider Coupling Used in Pump Standard L Flexible Jaw Coupling
- Model Number
L035
