Robust Rigid Connection for Vertical Drive Systems

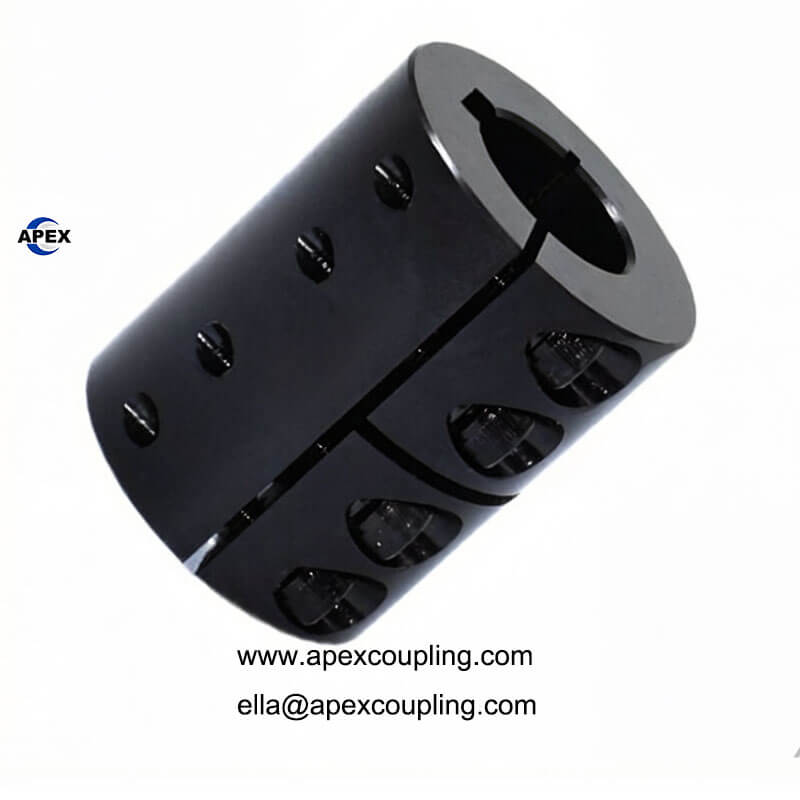

The JQ and JQW Series Clamp Shell Couplings are heavy-duty rigid connectors designed specifically for vertical shaft applications, such as chemical reactors and large-scale mixers. Engineered from high-grade 45# steel, these couplings provide a secure, non-flexible link that can handle massive torque loads while supporting the weight of long suspended shafts through an integrated suspension ring design.

Key Performance Attributes

• Specialized Vertical Suspension: Designed with a central groove and suspension ring to securely hold and connect two vertical shaft ends, preventing axial slippage during operation.

• High Torque Capacity: Capable of transmitting up to 9000 N·m of torque, making it suitable for high-viscosity mixing and heavy industrial agitation.

• Durable 45# Steel Construction: Forged from premium carbon steel with a heat-resistant black oxide finish for long-term structural integrity in demanding environments.

• Rigid Clamping Stability: Provides a zero-play, rigid connection that is perfect for applications where shaft alignment is critical and no compensation is required.

• Integrated Keyway Fixing: Features a standard keyway with screw tightening to ensure a slip-free mechanical bond under steady loads.

Technical Specifications Table
