High Precision JM Series Disc Coupling disco couple costumes- Forged Steel Diaphragm Flexible Coupling for Industrial Machinery
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
| Feature | Description |
|---|---|
| Corrosion Resistant | High-quality forged steel or stainless steel construction prevents rust and corrosion |
| Stable Performance | Reliable operation with consistent torque transmission under varying loads |
| High Hardness & Strength | Heat-treated forged steel provides superior durability and high torque capacity |
| Zero Backlash | Precision diaphragm design ensures accurate positioning with no play |
| High Torque Transmission | Capable of handling significant torque loads for heavy-duty applications |
| Low Inertia | Optimized design reduces rotational mass for improved system responsiveness |
| Easy Maintenance | Simple structure allows for easy inspection and minimal upkeep |
Product Details
Â
Â
| Specification | Details |
|---|---|
| Product Name | Diaphragm Disc Coupling |
| Model | JM Series (Single/Double Diaphragm) |
| Material | 45# Forged Steel / Stainless Steel (S45C) |
| Diaphragm Type | Single or Double Diaphragm |
| Adjustment Ring | Polyurethane |
| Section Type | Single Section |
| Mounting Hole | Round Hole Type, Through Bore |
| Shaft Locking | Keyway & Set Screw Fixing Type |
| Surface Treatment | None (Natural Finish) |
| Color | Black |
| Customization | Supported (OEM/ODM, Custom Drawings/Samples) |
| Allowable Eccentricity | 2 mm |
| Allowable Angle Deviation | 2 degrees |
Product Applications
Â
Â
| Industry | Specific Applications |
|---|---|
| Pump Systems | High-power pumps, chemical pumps, water pumps |
| Fan & Blower Systems | Industrial fans, ventilation systems, blowers |
| Compressor Systems | Air compressors, gas compressors, refrigeration compressors |
| Hydraulic Machinery | Hydraulic pumps, power units, hydraulic systems |
| Petroleum Machinery | Oil drilling, refining, and transportation equipment |
| Printing & Textile Machinery | Printing presses, spinning machines, looms |
| Chemical & Mining Machinery | Mixers, reactors, crushers, conveyors |
| Metallurgical Machinery | Rolling mills, metal processing equipment |
Additional Information
Manufacturing:Â Years of experience with strict factory quality control and inspection
Material Quality:Â Forged from selected steel without sand holes or impurities, superior to ordinary steel
Quality Assurance:Â Each unit undergoes rigorous testing before shipment
Export Ready:Â Packaged securely for international logistics
 “disc coupling for pump systems“, “high torque diaphragm coupling”, “JM series disc coupling price”, “forged steel disc coupling manufacturer”, “zero backlash disc coupling”, “custom disc coupling OEM”, “diaphragm coupling for compressors”

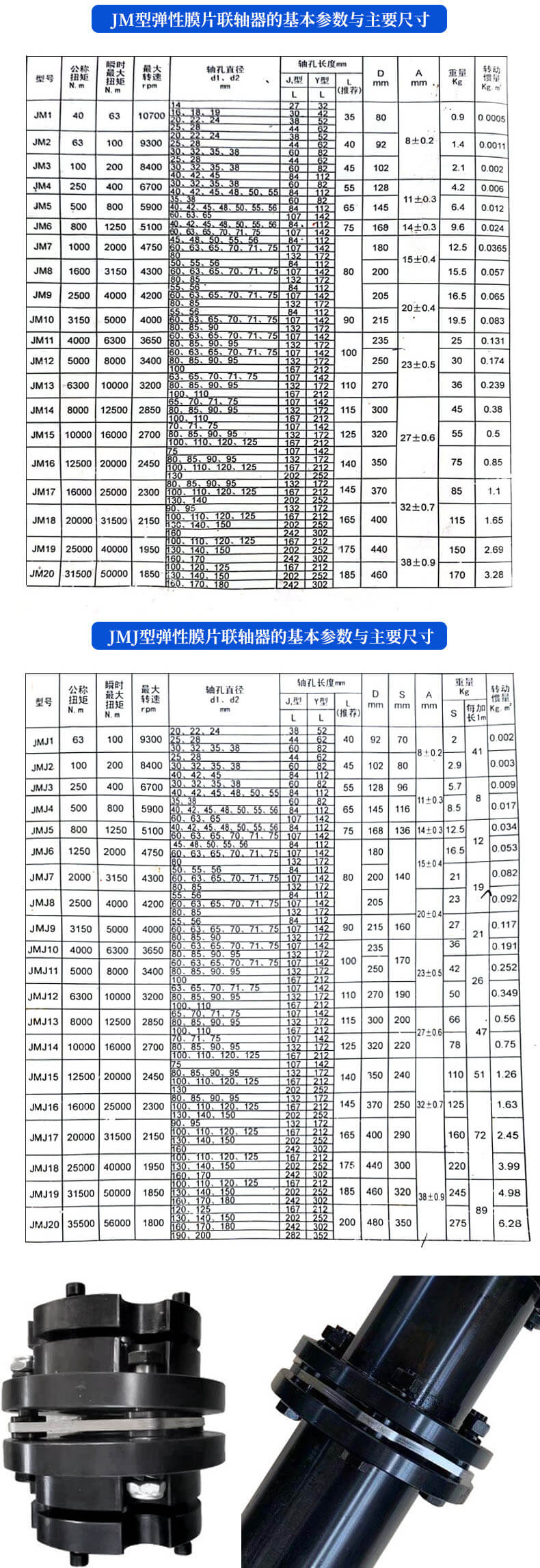

Product Show
The manufacturer produces high-precision elastic diaphragm eccentric coupling, DJM type flexible single or double diaphragm coupling
