Flexible Jaw Coupling Spider: The Essential Component for High-Performance Power Transmission

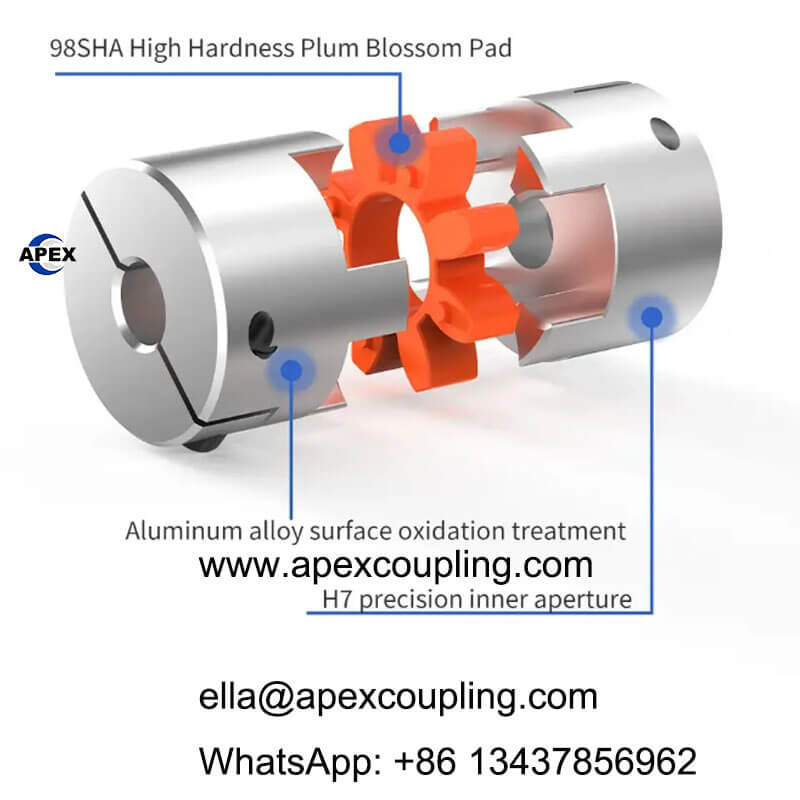

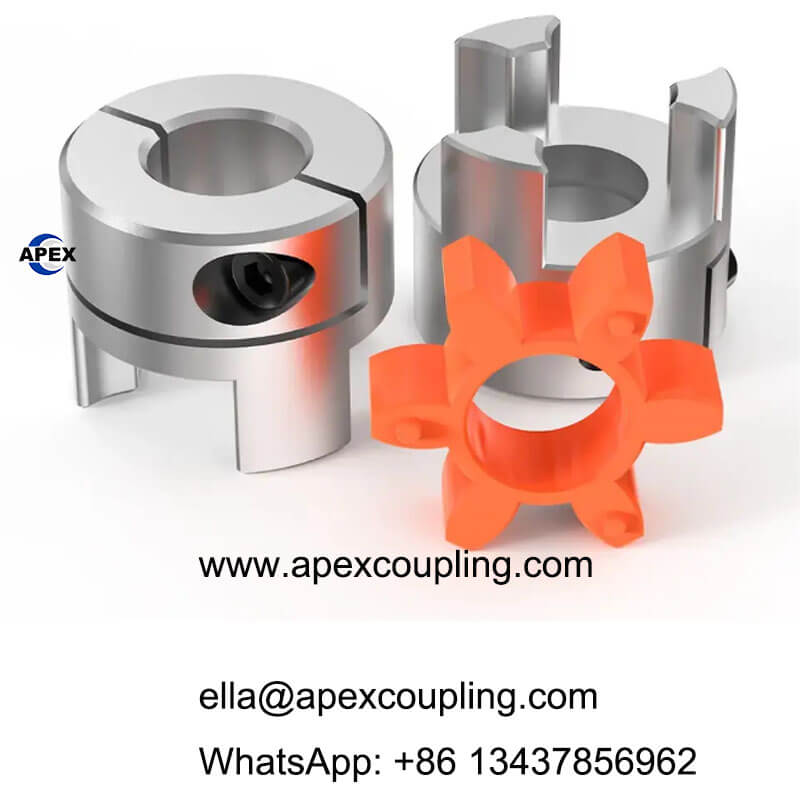

In the world of flexible couplings, the flexible jaw coupling spider is the critical element that determines performance, durability, and reliability. This precision-engineered elastomeric insert, nestled between the two metal hubs of a jaw coupling, is responsible for damping vibrations, compensating for misalignment, and transmitting torque smoothly. The GR Series Flexible Jaw Coupling Spider from Apex Coupling represents the pinnacle of this technology, precision-molded from imported polyurethane (PU) to deliver exceptional performance in applications ranging from pumps and compressors to industrial machinery. When your power transmission system demands a flexible jaw coupling spider that combines durability with precision engineering, our GR series provides the proven solution.

Superior Material Engineering for Extended Service Life

What sets our flexible jaw coupling spider apart is the advanced material formulation and precise manufacturing standards. Each spider is compression-molded from high-quality imported polyurethane, a material specifically chosen for its exceptional mechanical properties:

• Optimal Hardness: Rated at 98 Shore A, providing the perfect balance of flexibility for misalignment compensation and stiffness for positive torque transmission

• High Tear Strength: Resists cracking and deformation under repeated stress cycles, ensuring long-term reliability

• Excellent Elastic Recovery: Returns to original shape after deflection, maintaining consistent performance over millions of cycles

• Chemical Resistance: Resistant to oils, greases, and many industrial solvents commonly encountered in operating environments

The polyurethane material is available in red or white color options, allowing for easy identification of hardness grades and facilitating maintenance inspections. This color-coding system helps maintenance personnel quickly verify that the correct flexible jaw coupling spider is installed for specific application requirements.

Precision Engineering for Zero Backlash Performance

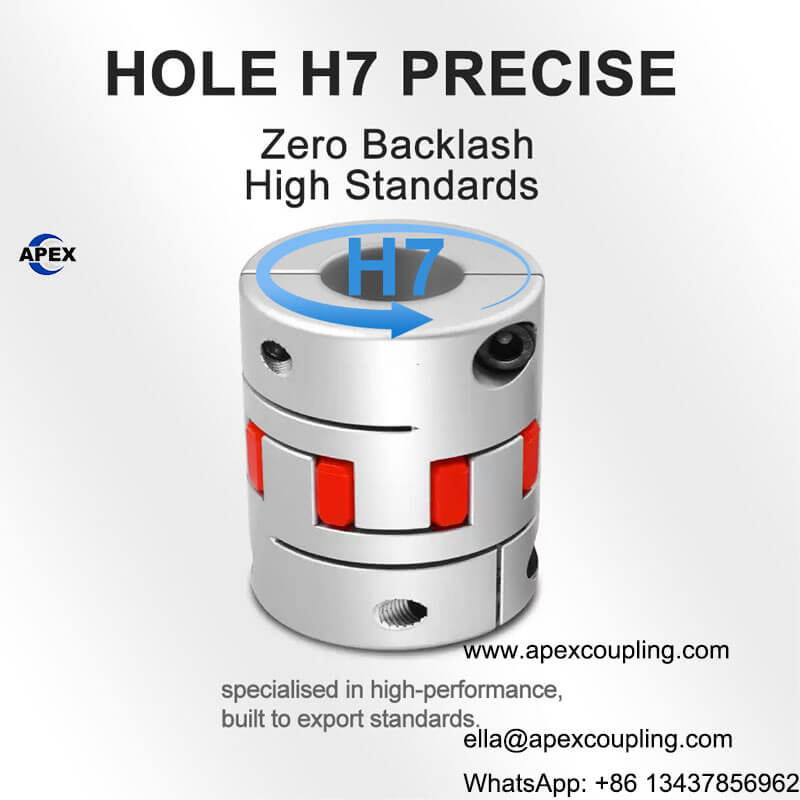

These flexible jaw coupling spiders are manufactured to exacting dimensional tolerances, ensuring perfect fit with standard GR series jaw coupling hubs. The critical interface surfaces are precisely formed to achieve zero rotational clearance when assembled, a characteristic essential for applications requiring:

• Accurate positioning in precision drives and servo applications

• Smooth operation in pumps and compressors where vibration must be minimized

• Reduced wear on connected equipment through effective shock absorption

• Extended component life through minimized impact loads and consistent torque transmission

The spider geometry is optimized to provide progressive compression characteristics, ensuring smooth torque transmission and effective damping across the full operating range. Each flexible jaw coupling spider undergoes 100% visual and dimensional inspection before packaging, guaranteeing consistent quality and performance.

Versatile Configuration Options

Recognizing that every application has unique requirements, our flexible jaw coupling spiders are available in two primary configurations:

• Without Bore: Standard solid spider design for general-purpose applications requiring simple, reliable performance

• With Bore: Specialized configuration for applications requiring specific mounting arrangements or custom fitments, such as through-shaft designs or piloted installations

Both types maintain the same high-performance material characteristics and precision dimensional control, ensuring consistent operation regardless of configuration.

Technical Specifications and Quality Assurance

Every flexible jaw coupling spider from Apex Coupling is manufactured under rigorous quality control and carries multiple certifications:

• Hardness: 98 Shore A ±2, verified through durometer testing on every production batch

• Tolerance: Precision molded to H7/H8 interface dimensions for consistent fit with standard coupling hubs

• Certification: Manufactured under ISO, BV, and RoHS certified processes, ensuring compliance with international quality and environmental standards

• Inspection: 100% visual and dimensional inspection before packaging, with statistical process control throughout manufacturing

• Packaging: Secure carton + wooden box packaging for international shipping, protecting components during transit

Performance Characteristics

These flexible jaw coupling spiders deliver reliable performance across a wide range of operating parameters:

• Rated Torque: Up to 100 N·m depending on coupling size and application requirements

• Maximum Speed: Rated for operation up to 1000 RPM in continuous duty applications

• Bore Diameter: Standard 10mm interface dimension (custom sizes available through our OEM services)

• Temperature Range: Suitable for continuous operation in typical industrial environments from -30°C to +80°C

• Tolerance Grade: Precision H7/H8 fit ensures minimal backlash and optimal performance

Ideal Applications Across Industries

The versatility of these flexible jaw coupling spiders makes them suitable for numerous applications:

• Pumps and Compressors: Smooth power transmission with effective vibration damping for extended equipment life

• Manufacturing Plants: Reliable connections for production machinery, assembly lines, and material handling equipment

• Printing Shops: Precision drives requiring accurate registration and smooth, consistent operation

• Construction Equipment: Durable connections for demanding environments with shock loads and vibration

• Energy & Mining: Heavy-duty applications requiring long service life and minimal maintenance

• General Shaft Connections: Universal solution for diverse power transmission needs across all industries

Customization and OEM Support

Apex Coupling offers comprehensive OEM, ODM, and OBM customization services for flexible jaw coupling spiders. Our engineering team can tailor:

• Bore configurations to match specific hub requirements and mounting arrangements

• Color coding for hardness identification or brand-specific requirements

• Material formulations for specialized applications requiring specific chemical or temperature resistance

• Packaging for integration with your assembly processes and inventory management systems

• Custom sizes for non-standard coupling designs or retrofit applications

With a Minimum Order Quantity (MOQ) of 1 piece and flexible FOB trade terms, we make it easy to source high-quality components for both prototyping and production runs. Our extensive inventory ensures quick delivery of standard sizes, while our engineering team works closely with customers to develop custom solutions for unique applications.

Choose Apex Coupling for Your Power Transmission Needs

With our extensive experience in manufacturing flexible coupling components, Apex Coupling delivers flexible jaw coupling spiders that meet or exceed the highest industry standards. Our commitment to quality and customer satisfaction ensures you receive components that provide reliable, long-lasting performance in your most demanding applications. Every spider is backed by our 1-year warranty and our promise of exceptional customer service.

Ready to Specify Flexible Jaw Coupling Spiders for Your Application? Contact our engineering team today with your coupling size, hardness requirements, and application details. Request detailed specifications, dimensional drawings, and a competitive quotation for our premium GR series flexible jaw coupling spiders. Our technical experts are standing by to assist you in selecting the perfect spider for your specific requirements.
