High-Speed Stainless Steel Single Diaphragm High Torsional Stiffness Crown Gear Coupling Suppliers
Model Number
GIICL. GICL, WG, WGT, WGP
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
| Category | Specifications / Details | |||
|---|---|---|---|---|
| 1. Product Overview & Manufacturer | Â | |||
| Product Title | High-Speed Stainless Steel Single Diaphragm High Torsional Stiffness Crown Gear Coupling | |||
| Main Products | Various models of couplings: Diaphragm Couplings, Plum Blossom Elastic Couplings, Elastic Couplings, Chain Couplings, Elastic Pin Couplings, Crown Gear Couplings, etc. | |||
| Manufacturer Profile | • Status: Source Factory (Direct Manufacturer) • Model Range: Complete • Expertise: Skilled Technology • Capacity: Strong Production Capability | |||
| 2. Product Parameters (Crown Gear Coupling) | Â | |||
| Product Name | Crown Gear Coupling | |||
| Product Material | 45# Steel (Stainless Steel option as per title) | |||
| Surface Treatment | Phosphating & Blackening / Spray Coating, etc. | |||
| Product Models | GIICL, GICL, WG, WGT, WGP | |||
| Product Features | High torque transmission, Easy disassembly/assembly, High load capacity, Compact radial dimensions | |||
| Scope of Application | Applied in metallurgical equipment, mining machinery, transportation equipment, and other related industries. | |||

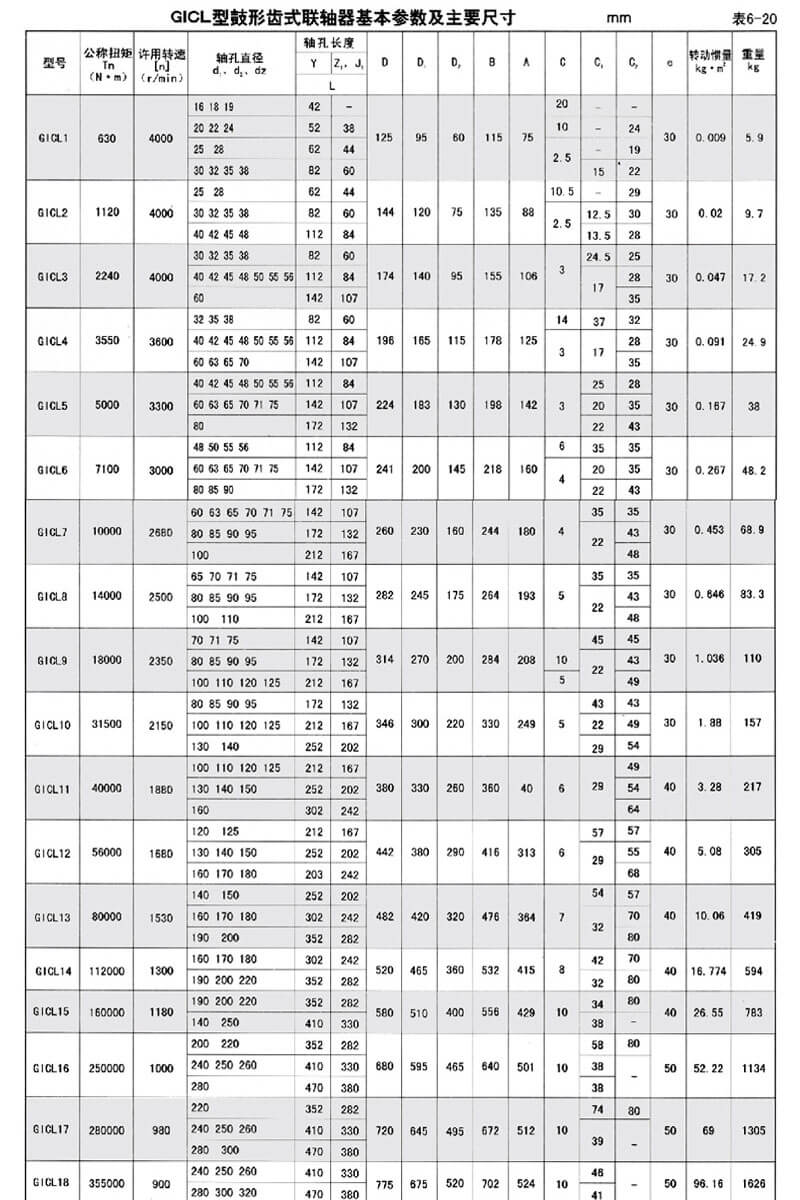

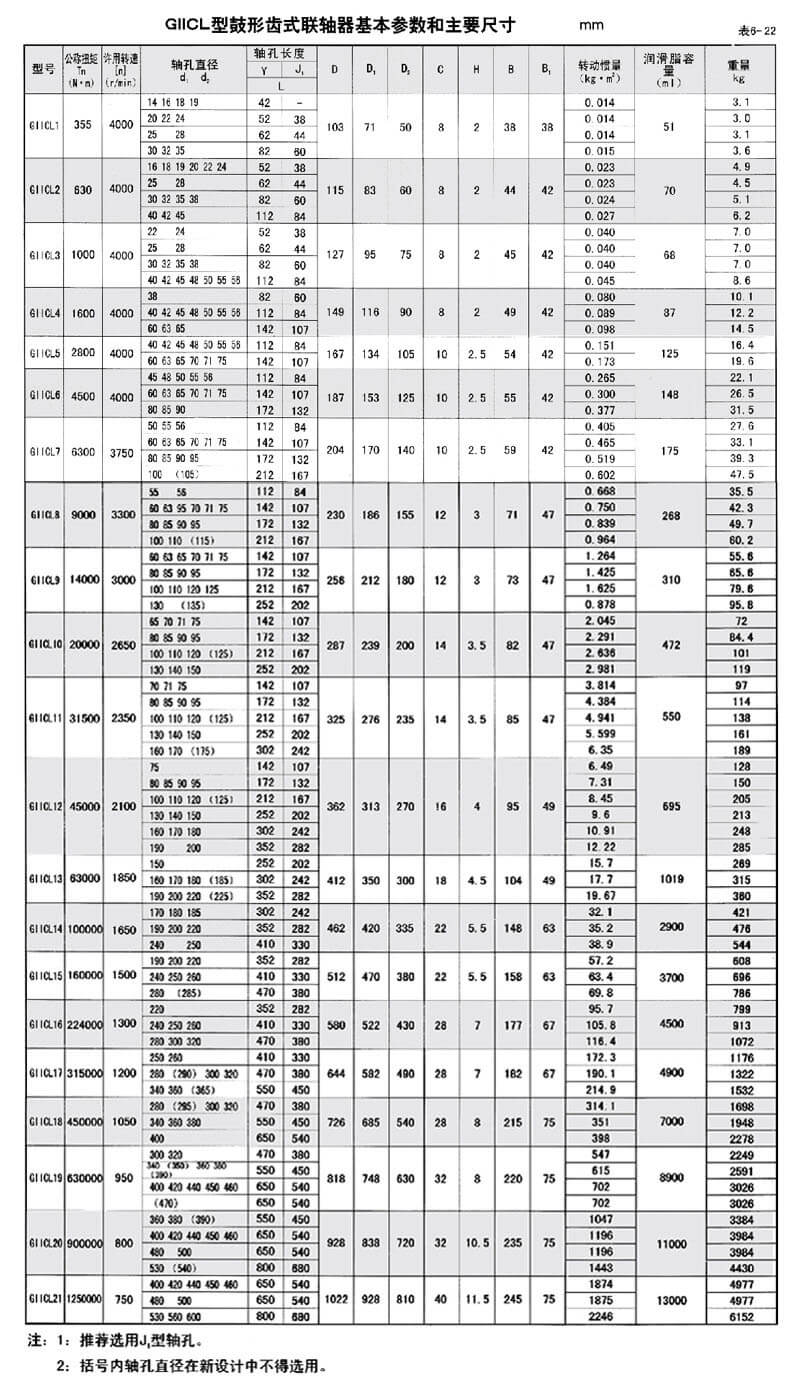

| 3. Specifications & Dimensions Table | Â | |||
| Model | Shaft Bore D1 (mm) | Shaft Bore D2 (mm) | Outer Diameter (mm) | Overall Length (mm) |
| GIICL | 10 | 38 | 168 | 25-160 |
| GICL | 11 | 38 | 168 | 25-160 |
| WG | 12 | 38 | 168 | 25-160 |
| WGT | 140 | 38 | 168 | 25-160 |
| WGP | 150 | 38 | 168 | 25-160 |
| 4. Product Attributes | Â | |||
| Brand | Apexcoupling | |||
| Feature | High Torsional Stiffness | |||
| Maximum Speed | 5000 | |||
| Allowable Torque | Customizable | |||
| Allowable Eccentricity | – | |||
| Allowable Deviation | Eccentric | |||
| Allowable Angular Misalignment | Customizable | |||
| Application | General Purpose Motor | |||
| Color | Black | |||
| Material | 40Cr | |||
| Surface Treatment | Anodized | |||
| Shaft Locking Method | Round Hole with Key Connection | |||
| Diaphragm | Single Diaphragm | |||
| Adjustment Ring Material | Nylon | |||
| Number of Sections | Single Section | |||
| Mounting Hole Type | Round Hole Type | |||
| Inner Bore | 42 |

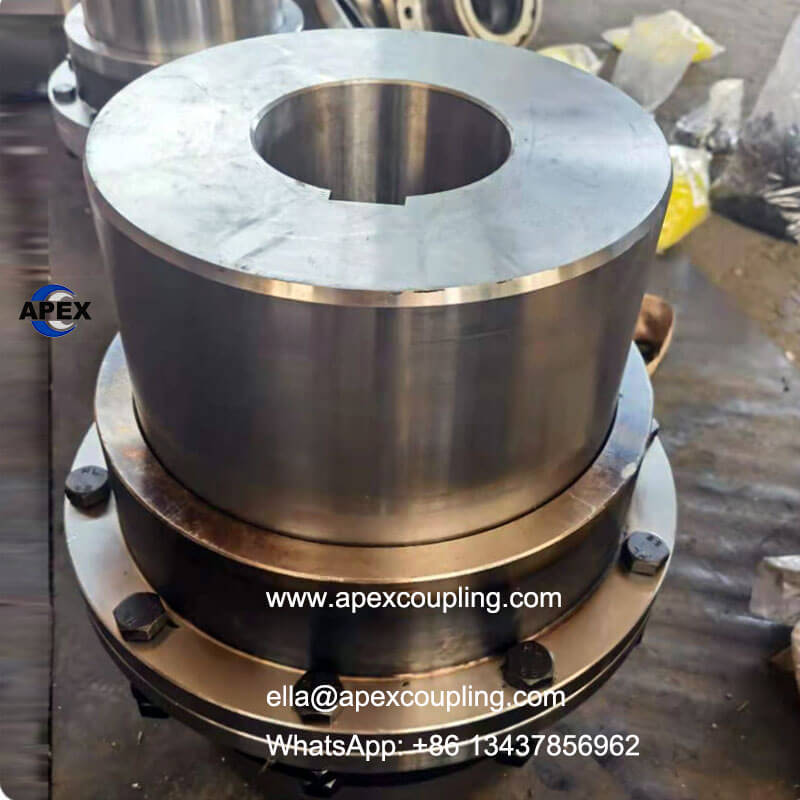

Product Show
Source Factory Supply of High-Speed Stainless Steel Single Diaphragm High Torsional Stiffness Crown Gear Coupling
“jaw coupling spider replacement”, “flexible jaw coupling for conveyors”, “curved jaw coupling high torque”, “elastomeric spider coupling manufacturer”, “jaw coupling for pump systems”, “maintenance-free jaw coupling spider”
