Ultimate Precision and Flexibility with DM Series High-Speed Beam Couplings

In the demanding world of precision motion control, where zero backlash, high-speed capability, and accurate torque transmission are paramount, beam couplings represent an engineering ideal. Apexcoupling specializes in manufacturing the premium DM series of beam couplings, engineered from a single piece of high-strength aluminum alloy. These are not ordinary flexible joints; they are precision beam couplings designed explicitly for high-performance applications such as connecting encoders, stepper motors, servo motors, and other sensitive instrumentation to driven shafts. The unique monolithic design of our beam couplings provides exceptional torsional rigidity while offering flexible compensation for installation misalignments. As your dedicated factory partner, we provide both standard catalog beam couplings and fully customized OEM solutions, ensuring you find the perfect coupling to protect your sensitive equipment and guarantee system accuracy.

The core innovation of our beam couplings lies in their integrated “beam” or “helical” design, machined from solid aluminum stock. This one-piece construction is the key advantage of these beam couplings, eliminating backlash entirely and providing a consistent, reliable connection. The pattern of helical cuts machined into the body of the beam couplings creates multiple flexible beams. These beams allow the beam couplings to elastically deform, thereby compensating for parallel (radial), angular, and axial misalignment between connected shafts—a common challenge in precise assembly. Furthermore, this beam structure gives the beam couplings a inherent damping characteristic, cushioning the drive system against minor vibrations and shock loads. Engineered for ultra-high-speed operation, our beam couplings can reliably reach speeds up to an impressive 30,000 RPM, making them suitable for the fastest spindles and sensors. Installation is simplified with a clamping screw mechanism on each end of the beam couplings, ensuring a secure, slip-free grip on the shaft without causing damage.

Why DM Series Beam Couplings Are the Engineer’s Choice

Selecting our professional-grade beam couplings delivers critical performance benefits for precision systems:

• Zero Backlash: The solid, one-piece design of these beam couplings ensures absolutely no lost motion, crucial for encoder feedback and precise positioning.

• High-Speed Excellence: Balanced and machined from lightweight aluminum, these beam couplings are optimized for extremely high rotational speeds.

• Superior Misalignment Compensation: These beam couplings effectively absorb and compensate for radial, angular, and axial shaft deviations.

• Excellent Torsional Stiffness: While flexible laterally, these beam couplings offer high rigidity in rotation, ensuring accurate torque transmission.

• Maintenance-Free & Long-Lasting: With no moving parts or wearing elastomers, these beam couplings provide a long, reliable service life.

• Customizable for Your Needs: We offer complete OEM services for these beam couplings, tailoring the bore size (2-32mm), length, number of beams, and torque rating to your application.

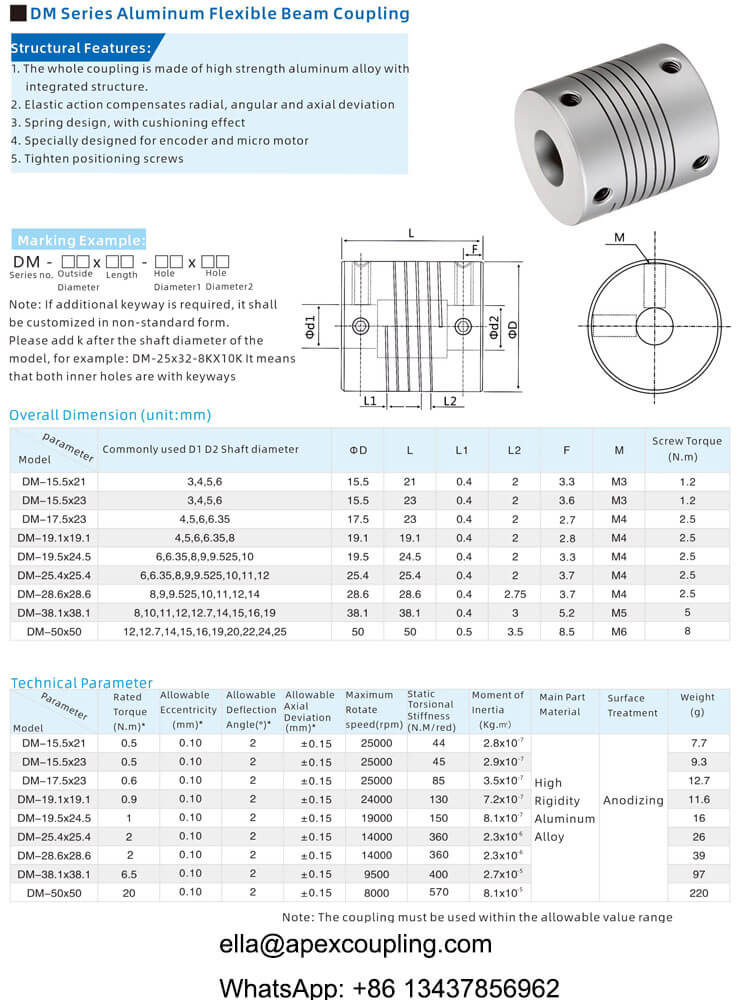

Technical Specifications of DM Series Aluminum Beam Couplings

Critical Applications for Precision Beam Couplings

Our DM series beam couplings are indispensable in high-accuracy and high-speed sectors:

• Encoder & Resolver Connections: Protecting sensitive feedback devices from shaft misalignment is a primary role for these beam couplings.

• Stepper & Servo Motor Systems: Providing a precise, backlash-free link between the motor and lead screw or pulley in CNC, 3D printers, and automation.

• Medical & Laboratory Equipment: Where smooth, precise, and reliable motion is critical, these beam couplings are the preferred component.

• Optics & Positioning Stages: Used in devices requiring minute, accurate adjustments without any play.

• General Precision Engineering: Any application where traditional couplings introduce error benefits from the accuracy of beam couplings.

Your Trusted Source for High-Performance Beam Couplings

Apexcoupling is more than a manufacturer; we are a precision engineering partner. We understand the critical role that a reliable beam couplings play in the overall performance of a motion system. Our production utilizes advanced CNC machining to ensure every beam couplings meets exacting tolerances for balance and dimensional accuracy. We support customers from the prototype stage through to volume production, offering expert advice on selecting and integrating the right beam couplings. Our commitment to quality and customer satisfaction makes us the ideal partner for your most challenging projects.

Request a Quote or Custom Beam Coupling Design

Ready to integrate precision and reliability into your drive system? Contact our engineering team today. Provide your specifications for shaft sizes, required torque, maximum speed, and the level of misalignment compensation needed. We will recommend the optimal DM series beam couplings or develop a custom beam couplings solution tailored for you.

Explore our full technical portfolio and capabilities by visiting our official website: www.apexcoupling.com. Partner with Apexcoupling for beam couplings that deliver uncompromising precision, speed, and durability.
