Engineered for Precision: The Ultimate Helical Coupling for Modern Automation

In the world of precision motion control, where accuracy, zero backlash, and reliability are non-negotiable, the Helical Coupling stands out as a superior solution. Apexcoupling is proud to manufacture the DC series, a high-performance Helical Coupling crafted from lightweight yet durable aluminum alloy. This specific type of Helical Coupling is engineered with a unique one-piece, single- or multi-start helical cut design that provides exceptional torsional stiffness while accommodating parallel and angular misalignments. Unlike traditional jaw or elastomeric couplings, the Helical Coupling offers virtually zero backlash, making it the ideal choice for servo-driven applications, CNC machinery, and particularly, high-accuracy 3D printers. As a leading factory, we provide both standard models and fully customized Helical Coupling solutions through our OEM services, ensuring a perfect match for your most demanding drive system requirements.

The fundamental advantage of a Helical Coupling lies in its monolithic structure. Machined from a single piece of material—in this case, premium aluminum alloy—the Helical Coupling eliminates the need for additional components like spiders or grids. This design grants the Helical Coupling several critical benefits: exceptional balance for high-speed operation (up to 3000 RPM), excellent flexibility within its helical cuts to absorb vibration and minor misalignment, and remarkable consistency in torque transmission. The DC series Helical Coupling is designed to connect two shafts via a clamping mechanism on each end, with a standard bore diameter of 30mm and a rated torque capacity of 2000 N·m. The silver-white, anodized aluminum surface not only provides a corrosion-resistant finish but also ensures the Helical Coupling remains lightweight, reducing the system’s moment of inertia—a crucial factor for rapid start-stop cycles and precision positioning.

Why Our Helical Coupling is the Preferred Choice for Precision Engineers

Selecting our professional-grade Helical Coupling delivers unparalleled performance for sensitive applications:

• Zero Backlash: The seamless design of this Helical Coupling ensures no lost motion, guaranteeing precise positional accuracy for CNC and robotic systems.

• High Torsional Stiffness: This Helical Coupling maintains rigidity under load, providing immediate response to torque changes without wind-up.

• Compensates for Misalignment: The helical beam design allows the Helical Coupling to flex, accommodating both parallel and angular shaft misalignment.

• Lightweight & Balanced: Made from aluminum, this Helical Coupling minimizes rotational mass, leading to higher possible accelerations and reduced bearing loads.

• Maintenance-Free: With no moving parts or elastomers to wear out, this Helical Coupling offers a long, reliable service life.

• Customizable: We offer full OEM support to tailor the Helical Coupling‘s bore size, length, outer diameter, and torque rating to your exact needs.

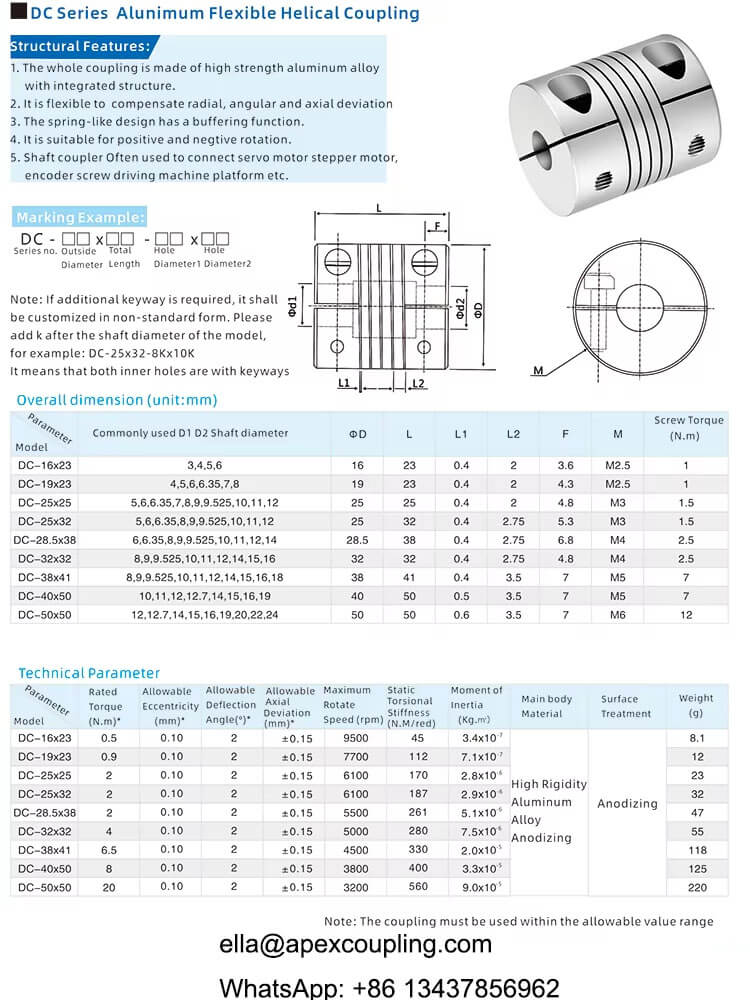

Technical Specifications of DC Series Helical Coupling

Precision Applications for Helical Couplings

Our DC series Helical Coupling is the drive component of choice for high-accuracy systems:

• 3D Printers & Additive Manufacturing: Connects stepper/servo motors to lead screws, ensuring precise layer height and dimensional accuracy. The Helical Coupling is critical here.

• CNC Machinery & Machine Tools: Used in spindle drives, rotary tables, and linear axes where positional repeatability is paramount. A high-quality Helical Coupling is essential.

• Optical & Medical Equipment: In devices requiring smooth, precise, and backlash-free rotation. The Helical Coupling excels in these sensitive environments.

• Robotics & Automation: For joints and actuators demanding high responsiveness and accuracy. The Helical Coupling provides the necessary performance.

• General Precision Drives: Any application where traditional couplings introduce unacceptable play benefits from a Helical Coupling.

Your Expert Partner for Helical Coupling Solutions

Apexcoupling is a specialized manufacturer with a deep understanding of the requirements for precision power transmission. We don’t just produce couplings; we engineer solutions. Our in-house capability to machine complex helical geometries from solid aluminum stock ensures the highest quality and consistency for every Helical Coupling we ship. We are equipped to handle both prototype requests and volume production runs, offering expert guidance to integrate the perfect Helical Coupling into your design. Our commitment to quality is underscored by our adherence to stringent manufacturing standards.

Request a Quote or Custom Design Consultation

Ready to eliminate backlash and elevate the precision of your machine? Contact our engineering team today. Provide your specifications for shaft sizes, required torque, operational speed, and any space constraints. We will recommend the optimal DC series Helical Coupling or develop a fully custom Helical Coupling design to meet your challenge.

To view our full technical portfolio and learn more about our custom manufacturing services for Helical Coupling and other precision components, visit our official website: www.apexcoupling.com. Partner with Apexcoupling for a Helical Coupling that delivers uncompromising accuracy and reliability.
