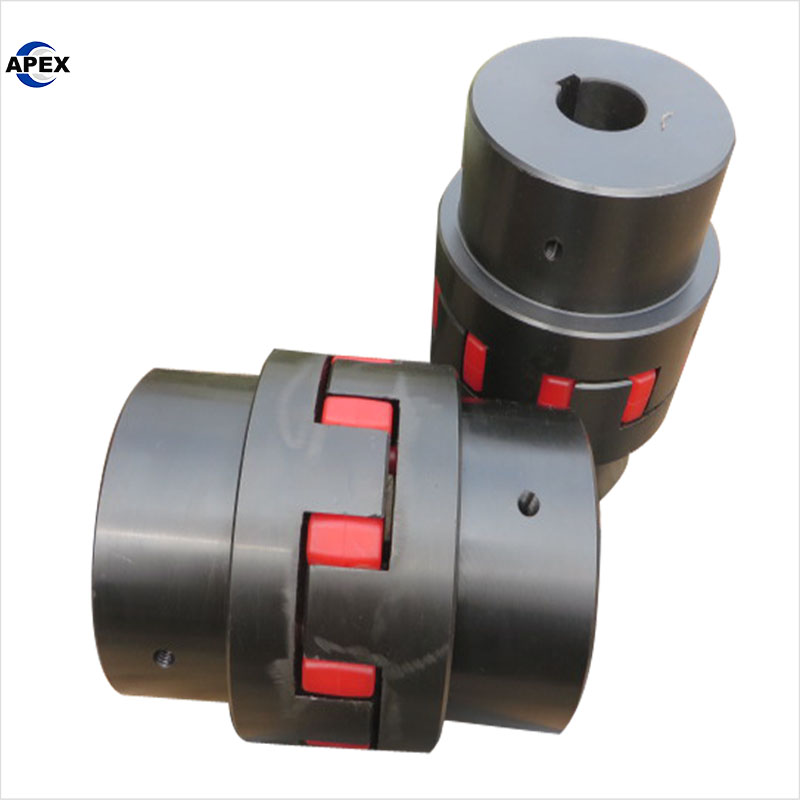

The ML Series claw-type flexible coupling delivers exceptional performance for industrial power transmission systems requiring reliable torque transmission and misalignment compensation. This robust shaft coupling features precision-machined steel construction with oxidation surface treatment, ensuring durability and corrosion resistance in demanding environments. The unique claw and spider design incorporates high-quality rubber elastomers that effectively dampen torsional vibrations, absorb shocks, and compensate for radial and angular shaft deviations.

With a rated torque of 2000 N.m and maximum torque capacity reaching 8200 N.m, this flexible coupling handles heavy-duty applications while maintaining smooth operation at speeds up to 5000 RPM. The axial plug-in design enables quick installation and maintenance-free operation, while the compact mounting length makes it ideal for applications with limited space. Available with multiple elastomer options in different hardness levels (≥75 Shore A) and petal configurations (4, 6, 8, or 10 petals), this claw-type coupling can be customized to meet specific application requirements across manufacturing plants, machinery repair shops, and various industrial settings.

Features

• Robust Steel Construction: Precision-machined with oxidation surface treatment for enhanced durability

• Advanced Claw/Spider Design: Effectively compensates for misalignment and dampens vibrations

• High Torque Capacity: Rated torque 2000 N.m with maximum torque up to 8200 N.m

• Multiple Elastomer Options: Available in three hardness levels and various petal configurations

• Easy Installation: Axial plug-in design for quick assembly and maintenance-free operation

• Compact Design: Minimal mounting length ideal for space-constrained applications

• Wide Temperature Range: Operates efficiently from -30°C to +80°C

•

Description

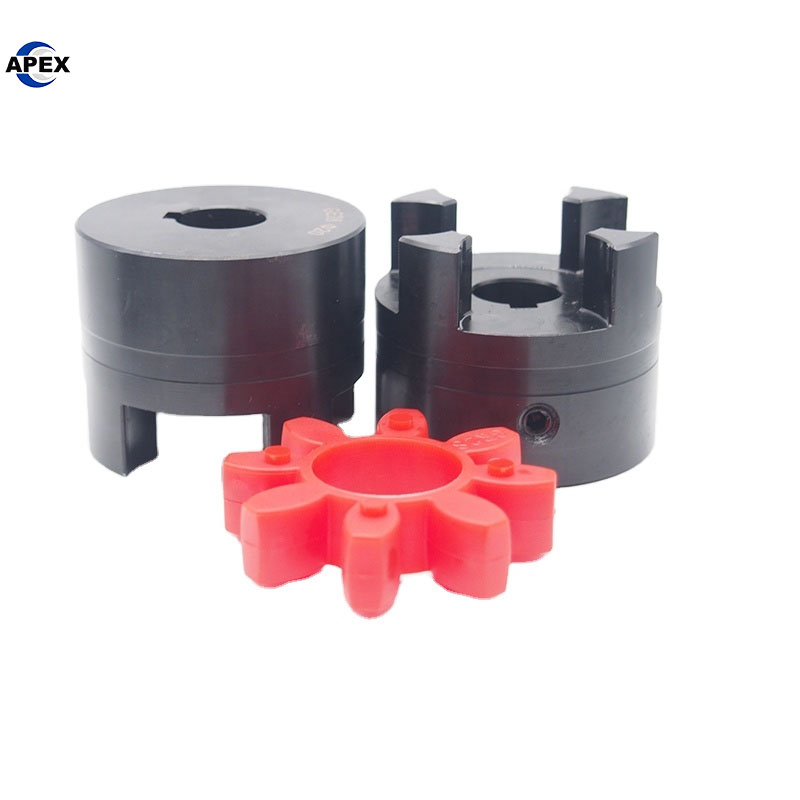

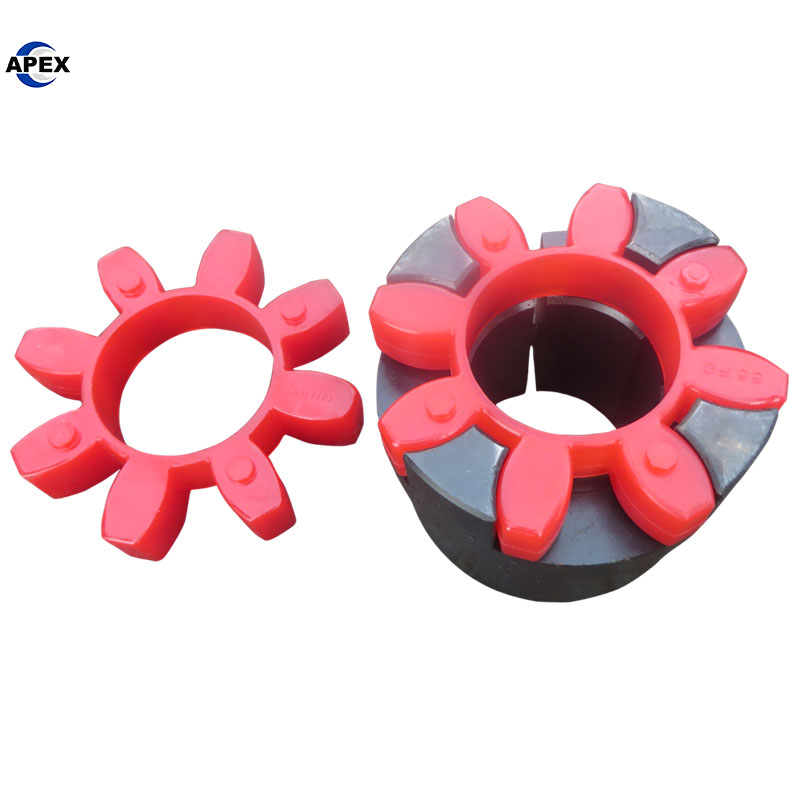

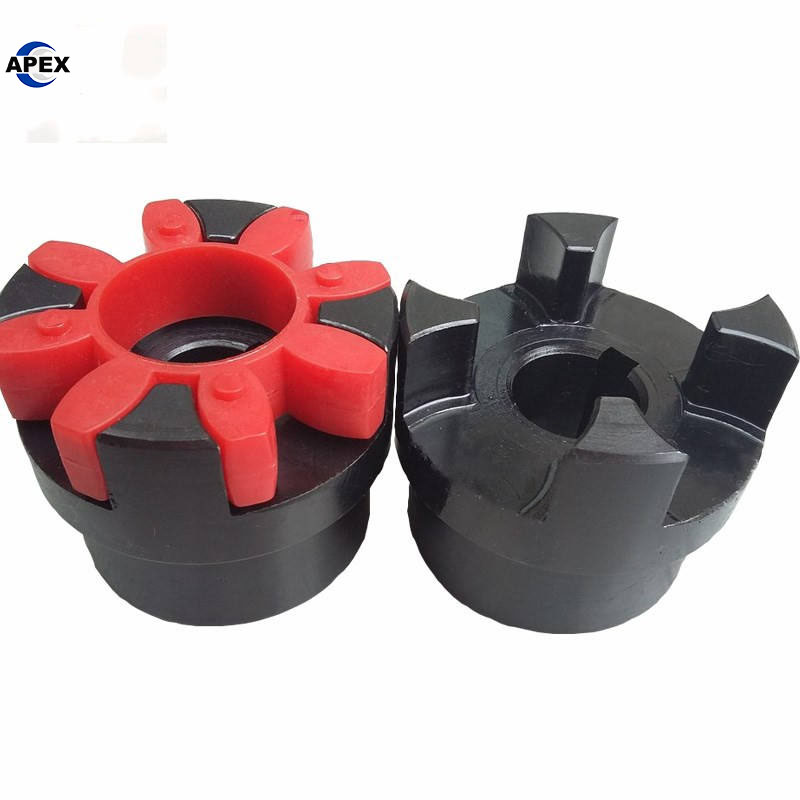

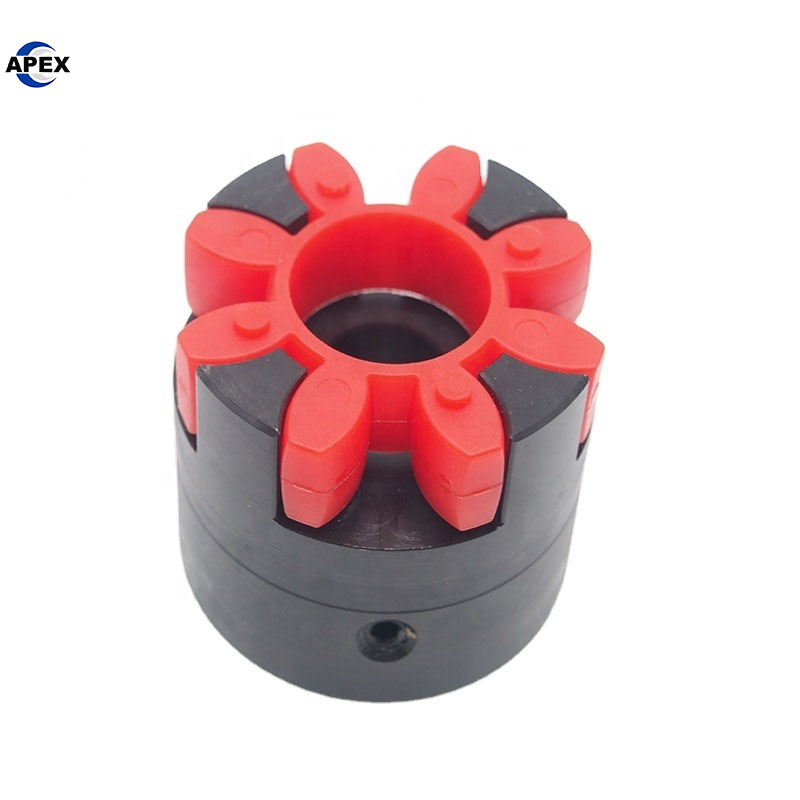

The ML Series claw-type flexible coupling represents advanced engineering in power transmission components, designed to connect rotating shafts while accommodating misalignment and absorbing destructive vibrations. This shaft coupling utilizes an interlocking claw configuration with a flexible spider element that transmits torque smoothly while compensating for angular, parallel, and axial misalignments. The steel hubs provide superior strength and longevity, while the replaceable elastomer spider allows for customization based on specific application needs.

Ideal for servo motors, pumps, compressors, and various industrial machinery, this flexible coupling offers reliable performance in challenging operating conditions. With multiple fixation options including setscrew, clamping, and keyway methods, the ML coupling ensures secure shaft connection while the spider element provides electrical insulation and noise reduction. The maintenance-free design and wide operating temperature range make this claw-type coupling a versatile solution for numerous industrial applications.

Specifications

Advantages

• claw-type flexible coupling for servo motors

• ML series shaft coupling specifications

• steel spider coupling with high torque capacity

• flexible shaft coupling with vibration damping

• industrial claw coupling replacement for ROTEX

• custom bore diameter flexible coupling

• maintenance free claw-type coupling

• heavy duty shaft coupling for industrial machinery
