H Type Flexible Pin Jaw Coupling | Interchangeable for N-EUPEX & N-EUPEX DS Series

Model Number
Check below, custom

Size
80
95
110
125
140
160
180

Product Description

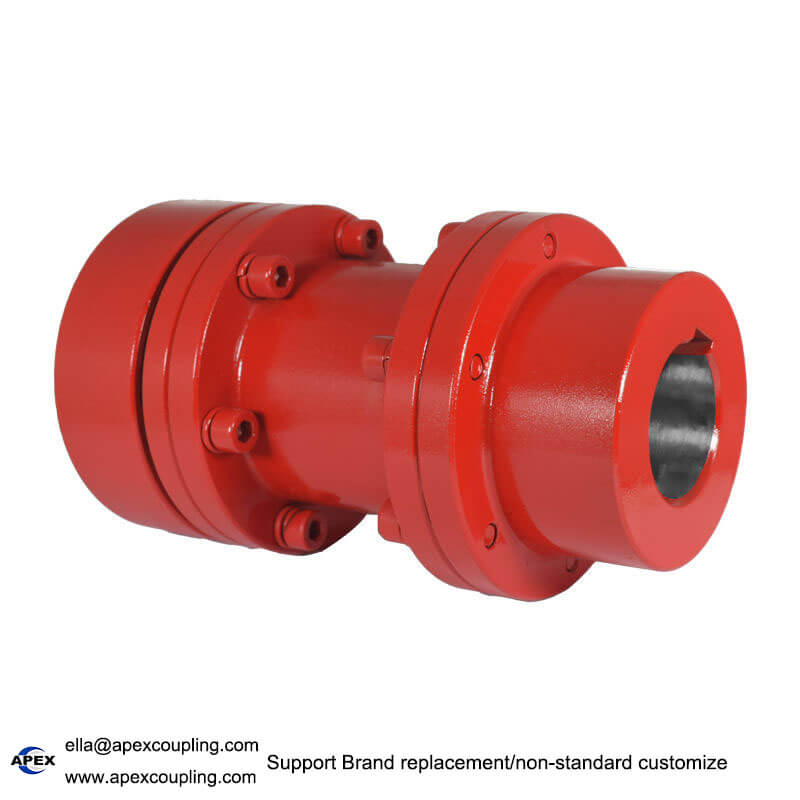

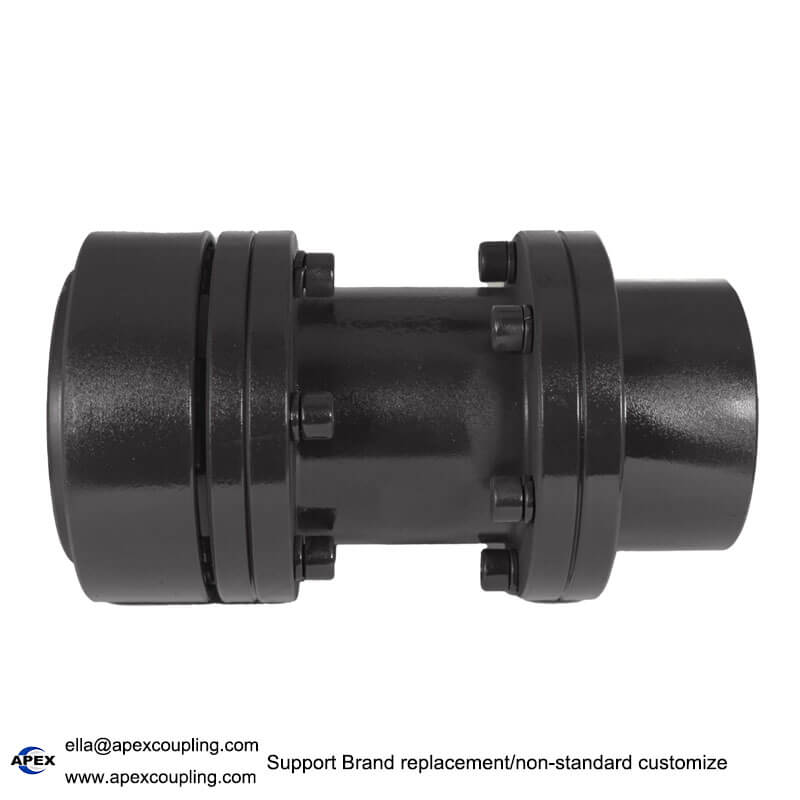

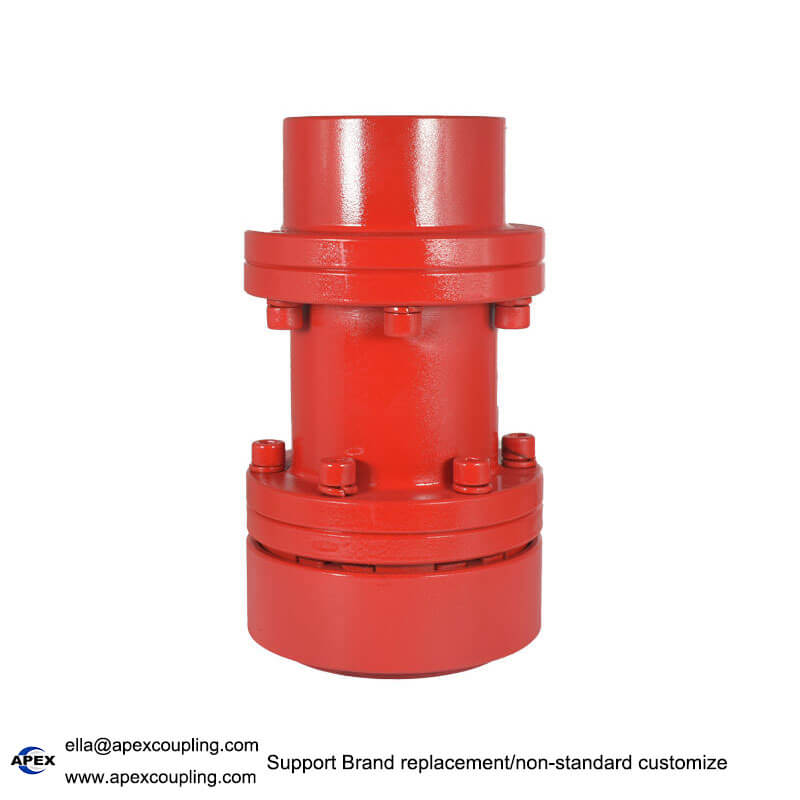

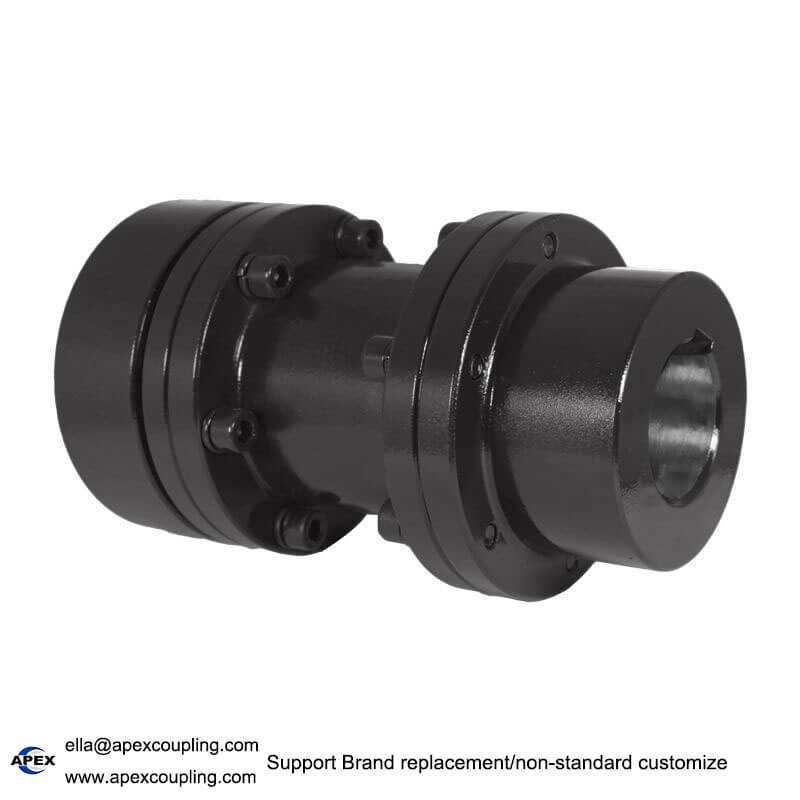

H Type Flexible Jaw Pin Coupling (N-EUPEX & N-EUPEX DS Equivalent)

Heavy-Duty Steel Shaft Coupling | Direct Interchange for Flender N-EUPEX Series

The H Type Flexible Pin & Jaw Coupling is designed for demanding power transmission applications requiring high torsional damping and rugged durability. Manufactured with high-strength forged steel hubs and elastomeric flexible inserts, this series serves as a direct, high-quality replacement for industry-standard Flender N-EUPEX and N-EUPEX DS series couplings. Available in standard sizes including H80, H95, H110, H125, H140, H160, and H180, it provides reliable shaft connection and misalignment compensation for heavy industrial machinery.

Key Advantages & Features

Direct Global Brand Interchange: Dimensional compatibility for quick and seamless replacement of Flender N-EUPEX and N-EUPEX DS series couplings, saving costly machinery downtime.
High-Strength Steel Construction: Premium forged/machined steel hubs deliver exceptional impact resistance, fatigue strength, and high rated torque capacity up to 500 N·m (and higher for larger frame sizes).
Torsional Vibration Damping: High-performance elastomeric elements absorb operational shock loads, reduce noise, and damp harmful torsional vibrations across drive systems.
Multi-Directional Misalignment Compensation: Effectively accommodates radial, axial, and angular shaft deviations to protect motor bearings, gearboxes, and driven machinery.
Fail-Safe & Durable Design: Engineered for continuous operation in severe industrial environments, ideal for machinery overhaul, OEM equipment, and repair shops.

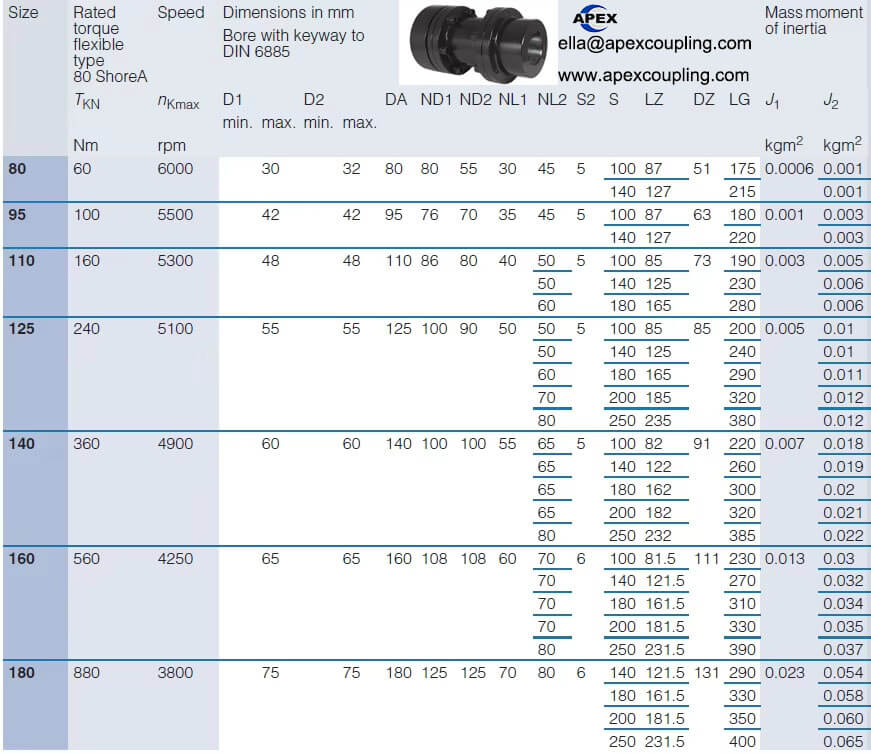

Technical Specifications

Parameter	Specification Details
Coupling Series	H Type / N-EUPEX & N-EUPEX DS Interchange Series
Available Standard Sizes	H80, H95, H110, H125, H140, H160, H180 (Custom sizes available)
Hub Material	High-Grade Steel / Forged Steel
Elastomeric Insert Material	High-Durability Synthetic Rubber / NBR Flexible Elements
Rated Torque	500 N·m (368.78 lb·ft)
Maximum Speed	2,000 RPM
Standard Shaft Bore	30 mm (1.18″) – Custom bore sizes available upon request
Structure Type	Flexible Jaw / Pin & Bush Elastomeric Coupling
Customization Support	OEM, ODM, Non-Standard Bores & Keyways Supported

Applications & Industries Served

The H Type N-EUPEX equivalent coupling is widely used across heavy industrial power transmission sectors, including:

Machinery Maintenance & Repair: Direct replacement part for plant maintenance, machinery repair shops, and field servicing.
Heavy Equipment & Drives: Industrial gearboxes, conveyors, bucket elevators, crushers, and mill drives.
Pumps & Compressors: Large-capacity industrial pumps, centrifugal fans, blowers, and air compressors.

Custom & OEM/ODM Manufacturing (Brand Replacement Solutions)

At ApexCoupling, we specialize in high-precision brand-interchange shaft couplings. If you are looking for an alternative to expensive OEM replacements or discontinued international brand parts (e.g., Flender, KTR, Lovejoy), our engineering team can produce exact matches according to your technical drawings or sample measurements.

How to Request an Interchange Quote:

To ensure 100% fit and performance alignment, please provide us with:

Your existing coupling model number (e.g., N-EUPEX H110 or H140) or technical drawings.
Exact shaft bore diameters (d1 & d2) and keyway specifications.
Motor power (kW/HP), operating speed (RPM), and application torque.
