Flexible XL Star Jaw Spider Clamp Type Coupling

Model Number
M Type

B Type

Product Description

Category	Specifications / Details
1. Main Products (Manufacturer’s Range)	Various types of couplings: Diaphragm Couplings, Plum Blossom (Spider) Elastic Couplings, Elastic Couplings, Chain Couplings, Elastic Pin Couplings, Crown Gear Couplings, Universal Couplings, Universal Joints, etc.
2. Product Parameters (XL Star Coupling)
Product Name	XL Star Coupling
Product Material	45# Steel
Surface Treatment	Phosphating & Blackening / Spray Coating, etc.
Product Model	XL
Product Features	High torque transmission, Easy disassembly/assembly, High load capacity, Compact radial dimensions
Scope of Application	Applied in metallurgical equipment, mining machinery, transportation equipment, and other related industries.
3. Specifications Table (XL Star Coupling)
Model / Specification	Shaft Bore D1 (mm)	Shaft Bore D2 (mm)	Notes
M Type	110	Contact Customer Service
b Type	110	Contact Customer Service
4. Product Attributes
Brand	Apexcoupling
Feature	High Torsional Stiffness
Maximum Speed	2 (Unit may require verification)
Allowable Torque	2342
Allowable Eccentricity	2
Allowable Deviation	Eccentric
Allowable Angular Misalignment	1
Application	General Purpose Motor (for Reducers & Machinery)
Color	Black
Material	S45C
Surface Treatment	None
Shaft Locking Method	Screw Clamp Type
Diaphragm	Single Diaphragm
Adjustment Ring Material	Polyurethane
Number of Sections	Single Section
Mounting Hole Type	Round Hole Type
Inner Bore	110 mm

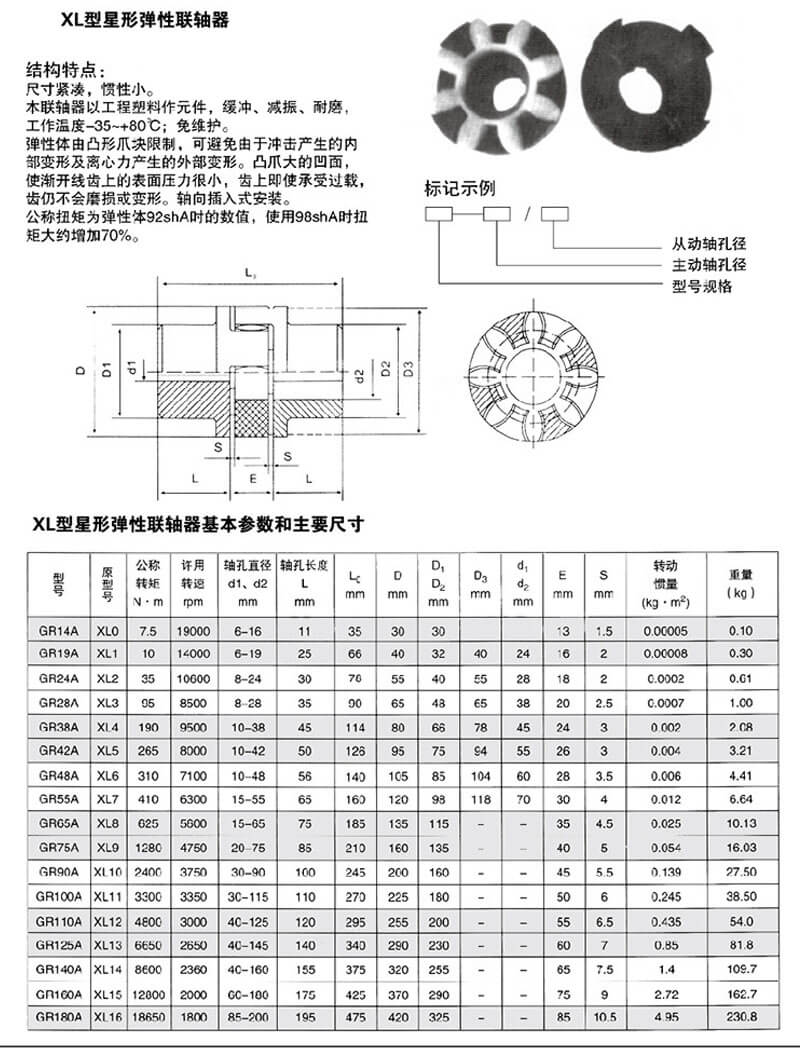

5. Structural Characteristics

Compact Design: Compact size and low inertia.
Elastic Element: Uses an engineering plastic component for cushioning, vibration damping, and wear resistance. Operating temperature: -35°C to +80°C. Maintenance-free.
Deformation Prevention: The elastomer is constrained by convex claw blocks, which prevents internal deformation caused by impact and external deformation due to centrifugal force. The large concave surface of the convex claws results in very low surface pressure on the involute teeth. Even under overload, the teeth do not wear or deform.
Installation: Axial plug-in type installation.
Nominal Torque Note: The rated torque value is based on an elastomer hardness of 92 ShA. When using a 98 ShA elastomer, the torque capacity increases by approximately 70%.

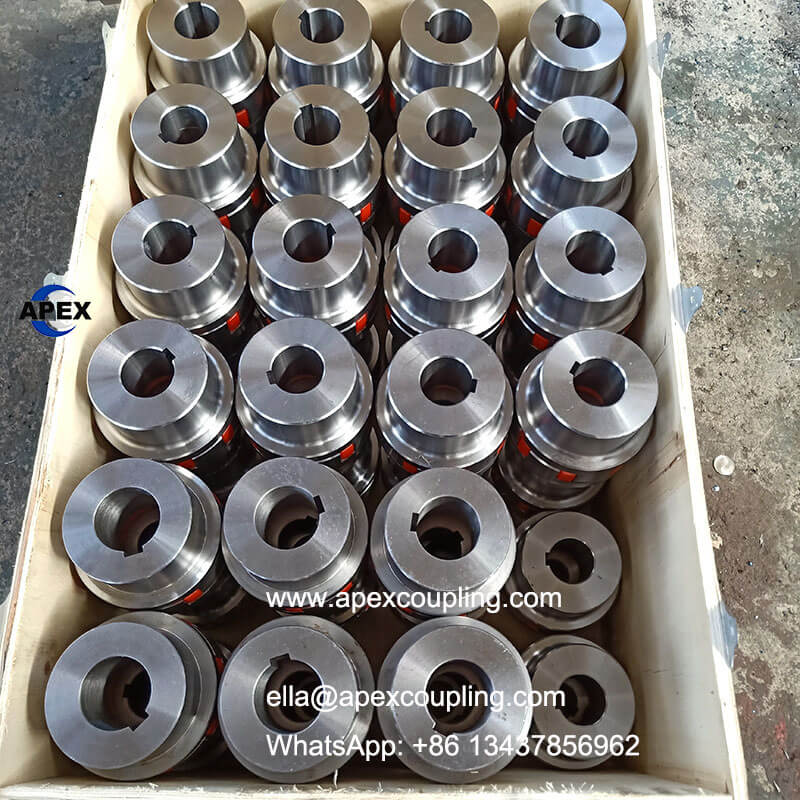

Product Show

Manufacturer Processing & Wholesale XL Star (Spider) Clamp Type Coupling for Reducer and Electromechanical Machinery
