Precision Engineering: The Importance of a Flexible Coupling Drawing

In high-precision motion control, the accuracy of a flexible coupling drawing serves as the blueprint for system reliability. Apexcoupling (www.apexcoupling.com), a specialist “Source Factory”,  understands that engineers require a detailed flexible coupling drawing to ensure seamless integration with stepper and servo motors. Our DLZ series expansion sleeve plum couplings are designed with high-strength aerospace aluminum alloy, providing the torsional rigidity and dampening required for modern transmission machinery.

Material Excellence and German-Standard Buffering

When reviewing a flexible coupling drawing for the DLZ series, the focus is often on the spider—the elastic heart of the component. Apexcoupling utilizes imported German polyurethane for our plum-shaped buffer pads. This choice of material, clearly marked on every flexible coupling drawing, offers superior impact resistance, corrosion protection, and a wide adjustable range. Complementing this is the hub construction: overall high-strength aviation aluminum that has undergone oxidation and polishing for a durable, professional finish. For specialized environments, we also provide 304 stainless steel torque options as indicated in our technical flexible coupling drawing documentation.

Why Engineers Trust Apexcoupling for Flexible Coupling Drawing Accuracy:

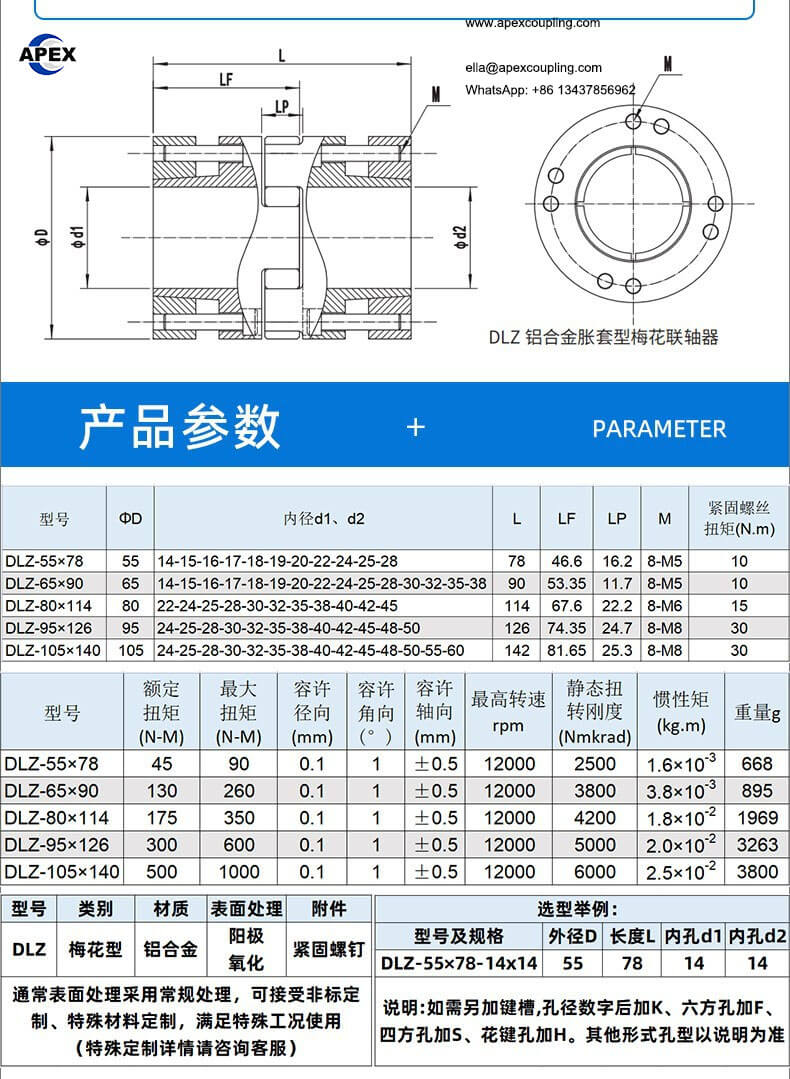

• H7 Bore Precision: Every flexible coupling drawing specifies a strict H7 tolerance for internal bores. This ensures high concentricity and a powerful clamping force that eliminates slippage during high-speed operation.

• Expansion Sleeve Locking: Our flexible coupling drawing showcases the expansion sleeve mechanism, which provides a more uniform grip on the shaft compared to traditional set screws, protecting your motor shafts from damage.

• Customization Capabilities: We provide the flexible coupling drawing for standard sizes like DLZ-55*78 and DLZ-65*90, but we also offer non-standard customization to meet specific machine footprints.

• Vibration Dampening: The elastic polyurethane spider featured in our flexible coupling drawing effectively absorbs shock and compensates for minor angular and radial misalignments.

Your Direct Source for High-Performance Couplings

As a premier manufacturer, Apexcoupling provides more than just a component; we provide the technical expertise of a source factory with “after-sales worry-free” support. By referencing our flexible coupling drawing library, engineers can optimize the performance of CNC lathes, food machinery, and automated production lines. Our one-stop purchase platform ensures that your flexible coupling drawing requirements are met with factory-direct pricing and 100% material authenticity. Whether you need the high-torque capacity of 304 stainless steel or the lightweight efficiency of aluminum, our flexible coupling drawing catalog is the definitive resource for your next project. Explore the full range of DLZ series solutions at www.apexcoupling.com and secure the precision your machines deserve.
