Flexible Cardan Shafts: The Versatile Solution for Reliable Power Transmission at Any Angle

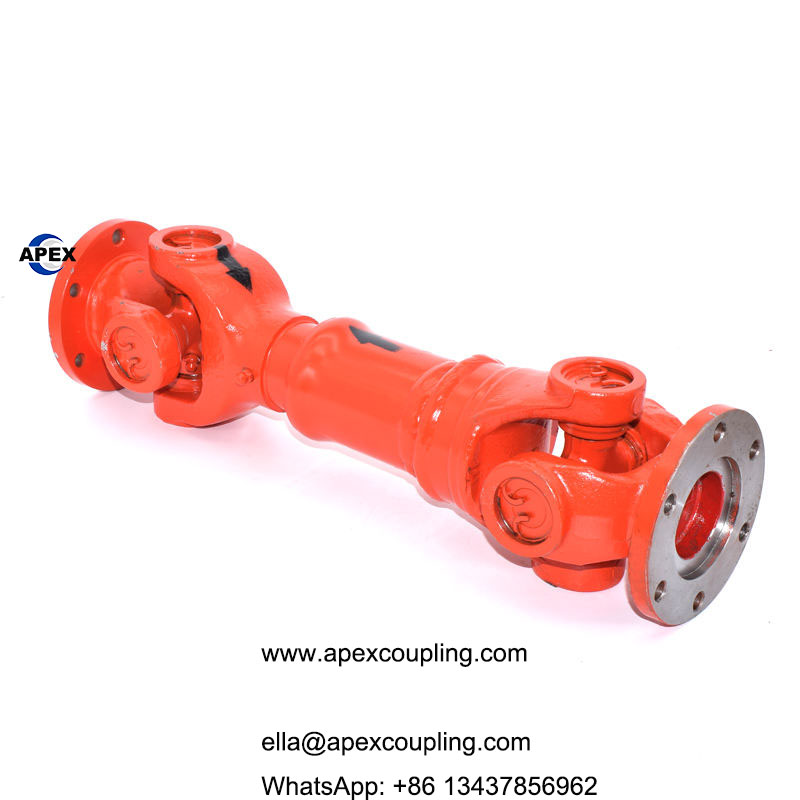

In the world of mechanical power transmission, few components offer the versatility and reliability of flexible cardan shafts. These precision-engineered universal joints, also known as cardan shafts or gimbal couplings, are designed to transmit torque efficiently between shafts that are not collinear. The Flange Disc Universal Coupling (Light Duty Series) from Apex Coupling represents a refined approach to this classic technology, offering a compact, durable solution for applications where space is limited but performance cannot be compromised. When your machinery requires flexible cardan shafts that deliver smooth operation across a range of operating angles, our engineered components provide the answer.

Engineered for Optimal Performance and Durability

The design philosophy behind our flexible cardan shafts focuses on delivering maximum performance within a compact footprint. The coupling features a robust flange disc configuration that provides excellent torsional stiffness while maintaining the flexibility needed to accommodate angular misalignment. This design is particularly well-suited for light-duty applications where space constraints make traditional cardan shafts impractical.

Key engineering features include:

• Precision-Machined Components: Each flexible cardan shaft is manufactured from high-quality materials with tight tolerances to ensure smooth operation and long service life

• Optimized Yoke Design: The yoke geometry is engineered to provide maximum strength while minimizing weight and rotational inertia

• Balanced Construction: Careful attention to balance ensures vibration-free operation even at higher speeds within the operating range

Superior Materials for Extended Service Life

Material selection is critical to the performance of any flexible cardan shaft. Our couplings utilize a combination of materials chosen for their specific properties:

• Main Material: High-strength S45C steel provides the foundation for the coupling body, offering excellent strength and durability

• Critical Components: Key elements undergo specialized 20CrMo quenching processes, achieving enhanced surface hardness and wear resistance for extended service life

• Corrosion Protection: Appropriate surface treatments protect against environmental factors, ensuring reliable operation in diverse conditions

This material strategy ensures that our flexible cardan shafts maintain their performance characteristics over millions of operating cycles, even in demanding industrial environments.

Technical Specifications and Versatility

Our flexible cardan shafts offer impressive performance capabilities across a comprehensive size range:

• Inner Hole Diameter: Customizable to match your specific shaft requirements

• Outer Diameter: Available from 58mm to 225mm to accommodate various torque requirements and space constraints

• Speed Capability: Rated for operation up to 5000 RPM, suitable for a wide range of industrial applications

• Torque Range: Allowable torque from 180 N.m to 22,000 N.m, covering light to medium-duty applications across multiple industries

• Fixed Method: Secure bolt-on flange connection ensures reliable power transmission and easy installation

• Application Scope: Ideal for Manufacturing Plants, Machinery Repair Shops, Food & Beverage Facilities, Printing Shops, Construction Works, and Energy & Mining operations

Key Advantages of Flexible Cardan Shafts

The flexible cardan shaft design offers several distinct advantages over alternative coupling technologies:

• Angular Flexibility: Accommodates significant angular misalignment between connected shafts, simplifying installation and compensating for operational movement

• Constant Velocity Operation: Maintains uniform rotational speed throughout the drive train, essential for precision applications

• High Torsional Stiffness: Provides excellent torque transmission characteristics with minimal wind-up

• Compact Design: The flange disc configuration offers a space-saving alternative to traditional cardan shafts

• Easy Maintenance: Simple design allows for straightforward inspection and service when required

Ideal Applications Across Industries

The versatility of these flexible cardan shafts makes them suitable for numerous applications:

• Manufacturing Plants: Power transmission for assembly lines, conveyors, and production machinery

• Printing Shops: Precision drives requiring accurate registration and smooth power flow

• Construction Equipment: Reliable connections for light to medium-duty construction machinery

• Food & Beverage Processing: Clean, efficient power transmission for processing equipment

• Energy & Mining: Durable performance in demanding environments with minimal maintenance requirements

Quality Assurance and Customization

Every flexible cardan shaft from Apex Coupling is manufactured under strict quality control and backed by our commitment to excellence:

• Customization: Full OEM, ODM, and OBM support for specialized requirements

• Warranty: Backed by our 1-year warranty against manufacturing defects

• Support: Engineering assistance available for application-specific requirements

Choose Apex Coupling for Your Power Transmission Needs

With our extensive experience in manufacturing universal joints and flexible couplings, Apex Coupling delivers flexible cardan shafts that meet the highest standards of quality and reliability. Our components are designed to provide years of trouble-free service in the most demanding applications.

Ready to Specify Flexible Cardan Shafts for Your Application? Contact our engineering team today with your torque requirements, operating angles, and dimensional constraints. Request detailed specifications, dimensional drawings, and a competitive quotation for our premium flexible cardan shafts.
