Double Diaphragm Shaft Coupling: The Ultimate Solution for High-Precision Motion Control Applications

In the demanding world of precision motion control, the double diaphragm shaft coupling has emerged as the gold standard for applications requiring zero backlash, high torsional stiffness, and reliable performance at high speeds. Unlike traditional couplings that may introduce compliance or positional error, the double diaphragm shaft coupling provides a rigid yet flexible connection that maintains accuracy while accommodating misalignment. The DS/DL series double diaphragm shaft coupling from Apex Coupling represents the pinnacle of this engineering achievement, combining premium materials with precision manufacturing to deliver exceptional performance in stepper motor, servo motor, and high-precision automation applications.

Superior Materials for Uncompromising Performance

What sets our double diaphragm shaft coupling apart is the meticulous attention to material quality and manufacturing precision:

• 7075 Aerospace Aluminum Alloy Hubs: The coupling hubs are precision-machined from 7075 aluminum alloy, a material specifically chosen for its exceptional strength-to-weight ratio and dimensional stability. Each hub undergoes anodized surface treatment, providing enhanced corrosion resistance and a professional appearance while maintaining precise dimensional accuracy.

• 304 Stainless Steel Diaphragm: The heart of this double diaphragm shaft coupling is its precision-formed diaphragm pack, manufactured from 304 stainless steel. This industrial-grade four-hole flexible spring design offers:

  • Excellent corrosion resistance and oxidation protection

  • Superior fatigue strength for long-term reliability

  • Zero backlash operation for accurate motion control

  • Effective misalignment compensation without generating reaction forces

• 12.9 Grade High-Strength Screws: All fastening hardware is manufactured to Grade 12.9 specifications, providing maximum clamping force and reliability under demanding operating conditions. The black oxide finish adds corrosion protection.

Precision Engineering for Optimal Performance

Every double diaphragm shaft coupling from Apex Coupling is manufactured to exacting standards:

• H7 Precision Bores: All finished bores are machined to H7 tolerance and 100% inspected with go/no-go gauges, ensuring minimal clearance and precise shaft engagement. This high concentricity guarantees accurate alignment, reduces vibration, and maximizes power transmission efficiency.

• 5-Axis CNC Machining: All components are manufactured on 5-axis CNC machining centers in a single setup, ensuring perfect concentricity and consistent quality across every double diaphragm shaft coupling.

• Safety-Enhanced Design Features:

  • Chamfered Socket Head Cap Screws: All screw heads feature (radius chamfering) to prevent finger injuries during installation.

  • R-Type Groove Radius: All slot junctions feature R-type radius treatment to avoid stress concentration and premature failure.

  • Full Edge Chamfering: All machined surfaces are fully chamfered for safe handling and a premium appearance.

Key Advantages of Double Diaphragm Shaft Coupling Design

The double diaphragm shaft coupling offers numerous benefits for precision motion control applications:

• Zero Backlash Operation: Essential for stepper and servo motor applications requiring accurate positioning and repeatability.

• High Torsional Stiffness: Provides excellent torque transmission without wind-up or compliance.

• No Reaction Force: The diaphragm design accommodates misalignment without generating damaging reaction forces on bearings.

• High-Speed Capability: Rated for operation up to 9000 RPM, suitable for high-speed spindle and servo applications.

• Misalignment Compensation: Accommodates angular, parallel, and axial misalignment while maintaining constant velocity.

• Maintenance-Free: No wearing parts, providing long-term reliability without lubrication.

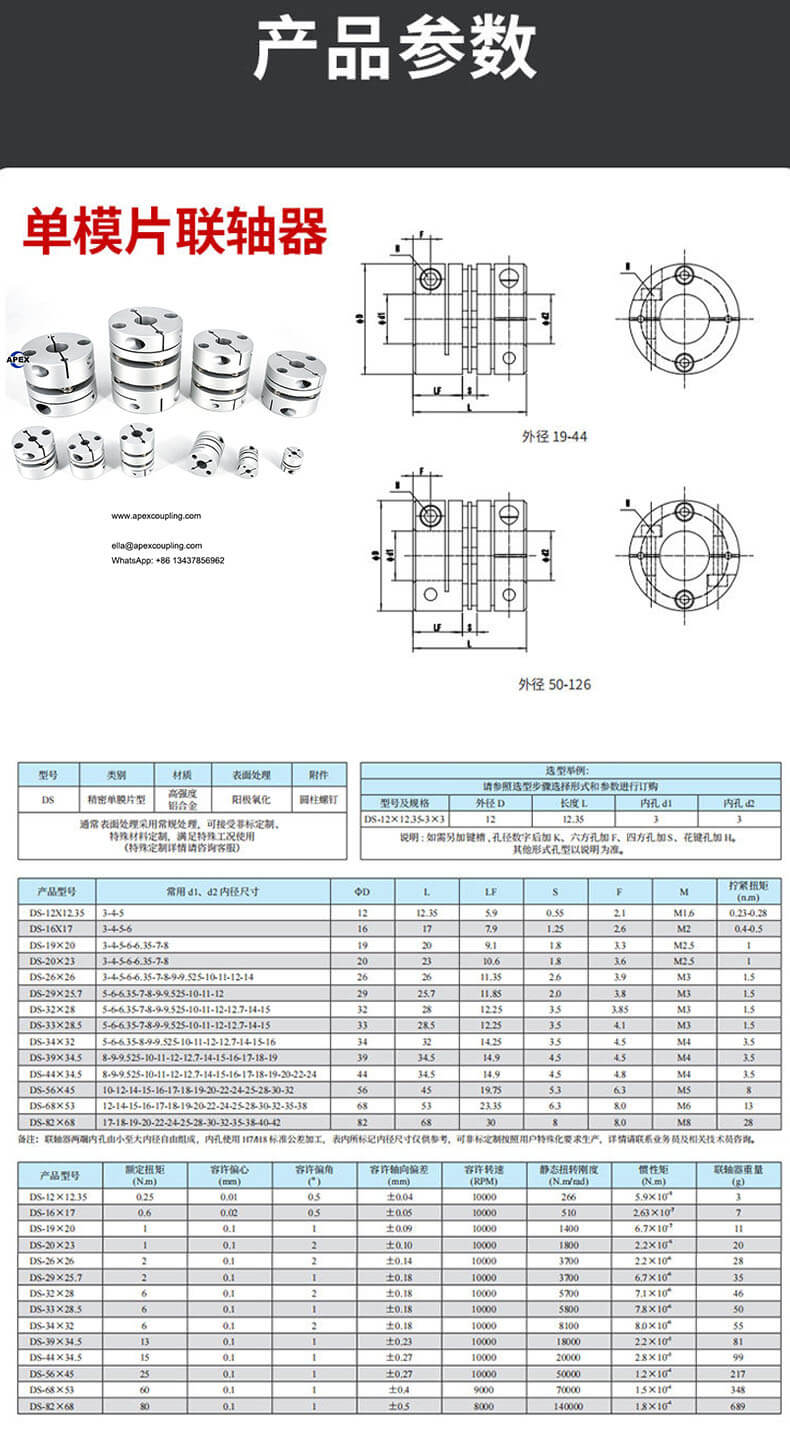

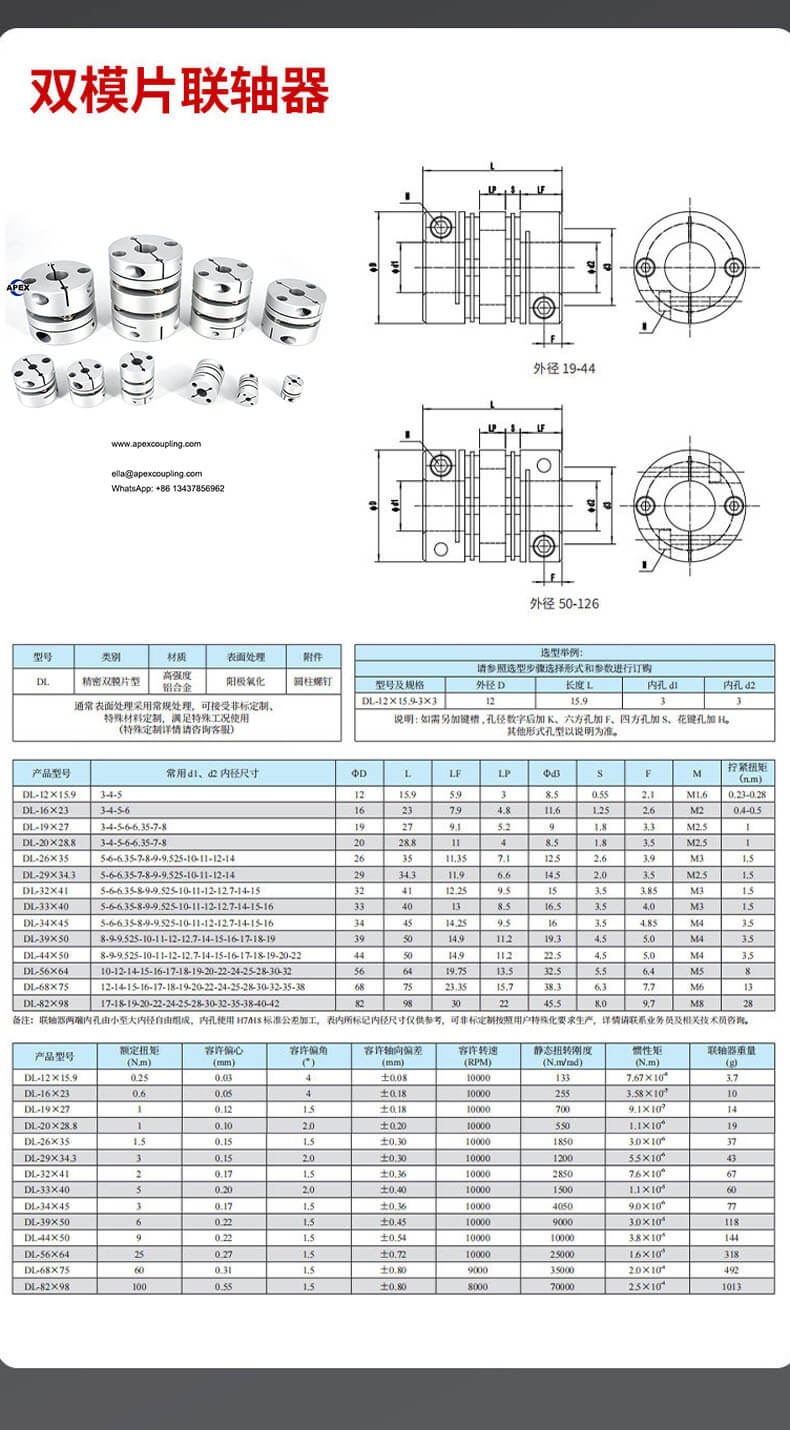

Technical Specifications

• Hub Material: 7075 Aerospace Aluminum Alloy with anodized finish

• Diaphragm Material: 304 Stainless Steel (industrial-grade four-hole flexible spring)

• Adjusting Ring Material: Alloy Steel

• Fastening: 12.9 grade socket head cap screws with black oxide finish

• Maximum Speed: 9000 RPM

• Allowable Torque: Up to 10,000 N·m

• Allowable Eccentricity: 0.1 mm

• Allowable Angular Misalignment: 1°

• Axial Deviation: Accommodates axial movement

• Bore Type: Through-hole design

• Locking Method: Screw clamping type

• Number of Sections: Single section

• Diaphragm Configuration: Single or double diaphragm options available

• Color: Natural anodized finish

Ideal Applications

Our double diaphragm shaft coupling is specifically engineered for high-precision applications:

• Stepper Motor Drives: Zero backlash operation ensures accurate positioning for step motor applications.

• Servo Motor Systems: High torsional stiffness and rapid response for closed-loop control.

• CNC Machinery: Precision power transmission for machine tools and machining centers.

• Robotics: Reliable connections for robotic arms and automated systems.

• Semiconductor Equipment: Clean, maintenance-free operation for wafer handling and processing.

• Medical Devices: Precision motion control for diagnostic and therapeutic equipment.

• Printing Machinery: Smooth, accurate drives for registration-critical equipment.

Quality Assurance and Customization

Every double diaphragm shaft coupling from Apex Coupling is manufactured under strict quality control:

• 100% Inspection: All H7 bores are inspected with go/no-go gauges.

• 5-Axis Machining: Single-setup machining ensures perfect concentricity.

• Material Traceability: Premium materials sourced from certified suppliers.

• Customization: OEM, ODM, and OBM support for specialized requirements including custom bores, keyways, and special configurations.

Why Choose Apex Coupling for Your Double Diaphragm Shaft Coupling Needs?

• Premium Materials: 7075 aluminum alloy and 304 stainless steel ensure long-term reliability.

• Precision Manufacturing: 5-axis CNC machining with full inspection.

• Safety-First Design: Full chamfering and radius treatment prevent injuries and stress concentration.

• Factory Direct: Competitive pricing with extensive customization options.

• Technical Support: Engineering assistance for selection and application.

Ready to Order Your Double Diaphragm Shaft Coupling?

Contact our engineering team today with your application requirements, shaft sizes, and operating parameters. Request detailed specifications, dimensional drawings, and a competitive quotation for our premium double diaphragm shaft couplings. Experience the Apex difference in quality, precision, and service.
