DJM Single & SJM Double Stainless Steel Disc Couplings | 45# Carbon Steel Diaphragm Shaft Couplings

Model Number
Check below, custom

Product Description

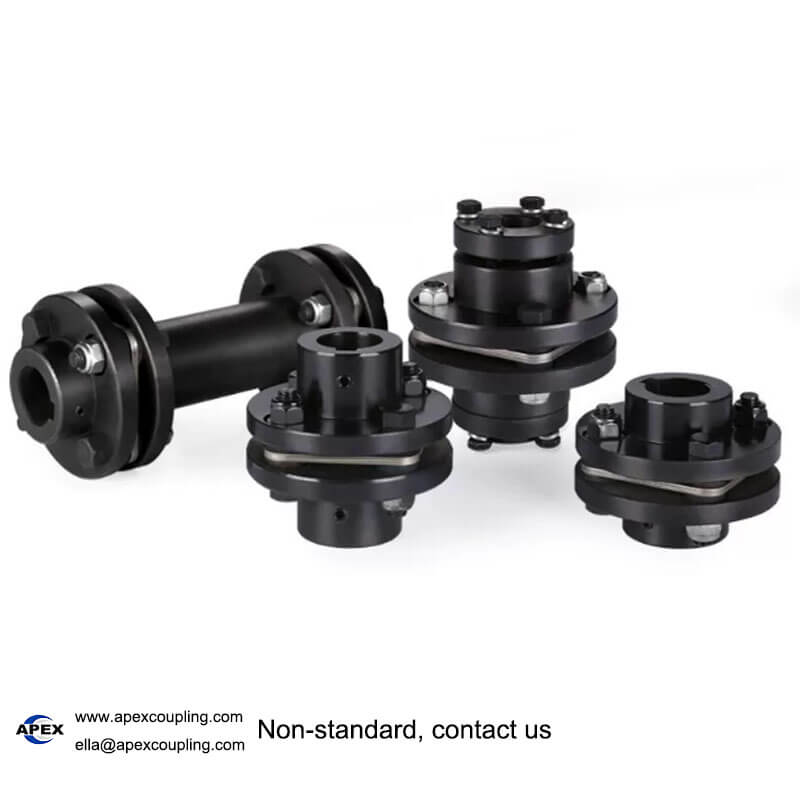

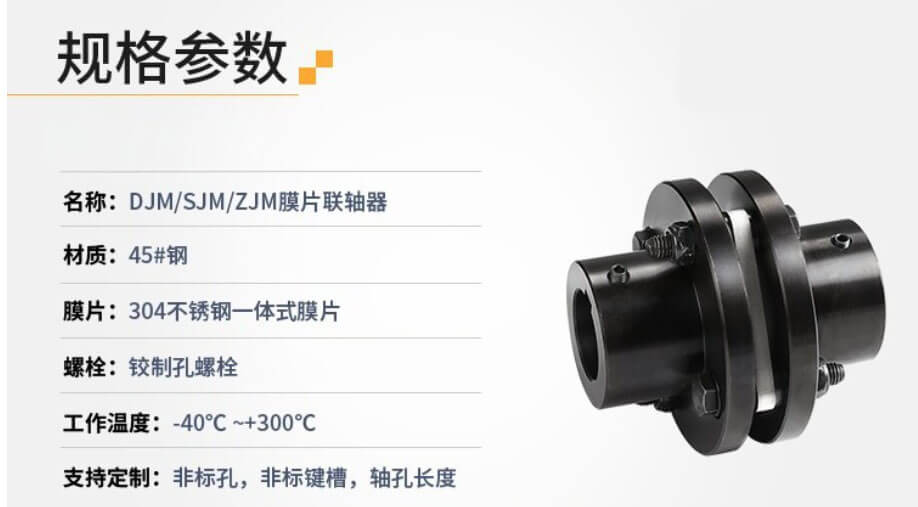

High-Precision & Zero-Backlash Power Transmission: DJM Single & SJM Double Stainless Steel Disc Couplings

The Apexcoupling DJM (Single Disc), SJM (Double Disc), and ZJM Series Flexible Diaphragm Couplings are engineered for high-precision motion control, servo motor drives, CNC machinery, pump systems, and industrial automated drivelines. Constructed with high-strength 45# carbon steel hubs and ultra-precise 304 stainless steel flexible disc packs, these couplings provide zero backlash, exceptional torsional stiffness, and all-metal durability across operating temperatures from -40°Cto 300°C.

Featuring laser-cut 304 stainless steel diaphragms with positioning accuracy within ﹢-0.003 mm (over 10 times more accurate than conventional stamping), each unit utilizescustom precision-ground reamed fitted bolts to prevent bolt hole deformation and backlashunder high dynamic loads. Single-cut CNC machining ensures exact hub and flangeconcentricity. Available with standard keyway plus set screw locking (custom clamp hubs,keyless clamping elements, and non-standard shaft lengths supported), the DJM and SJMseries effectively compensate for axial, angular, and radial shaft misalignments without
requiring lubrication.

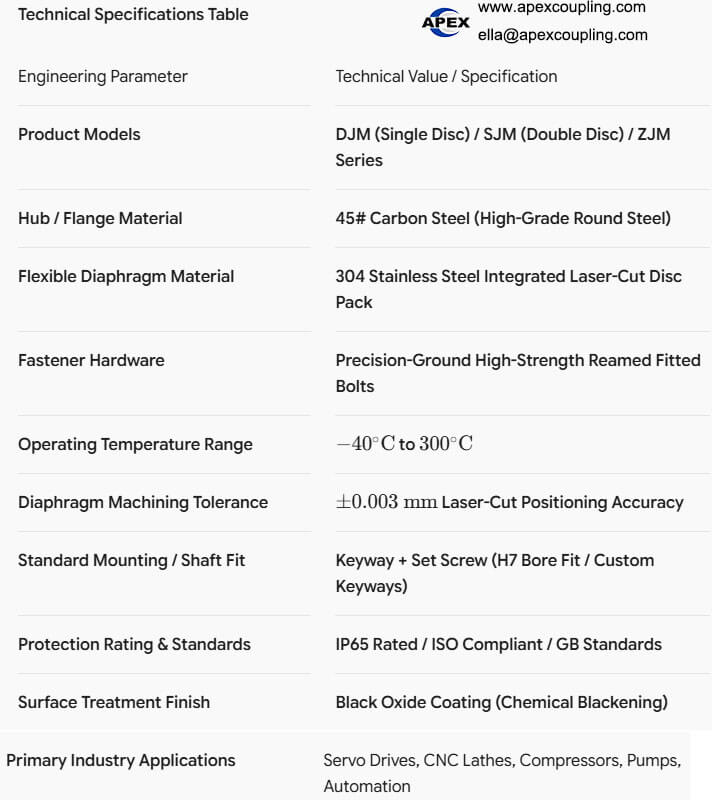

Core Product Advantages & Features

Laser-Cut 304 Stainless Steel Discs: Precision laser-cut integrated 304 disc packs deliver stress-free, deformation-free flexure with positioning accuracy within +-0.003 mm.
Precision-Ground Reamed Fitted Bolts: Fitted bolts are precision ground on the shank to guarantee snug, zero-play hole fitment, preventing backlash during dynamic startup and reversing.
Single-Pass CNC Hub Machined Concentricity: Shaft holes and flange faces are machined in a single CNC setup to eliminate runout and maintain high rotational balance.
Wide Operating Temperature Range: All-metal design withstands severe industrial environments from -40°Cto 300°C with complete oil and chemical resistance.
Single (DJM) & Double (SJM) Flex Configurations: DJM handles angular and axial misalignment; SJM features a central spacer element to simultaneously accommodate parallel/radial misalignment.
Flexible Keyway & Custom Bores: Standard keyway with set screws, with options for clamping hubs, custom keyway widths, and specialized hub length configurations.

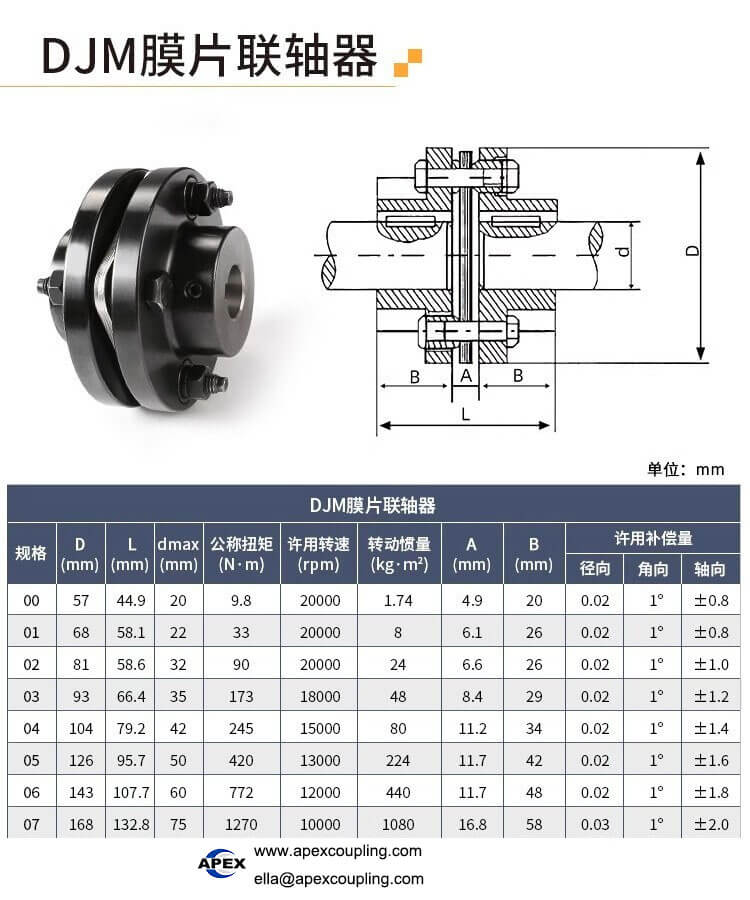

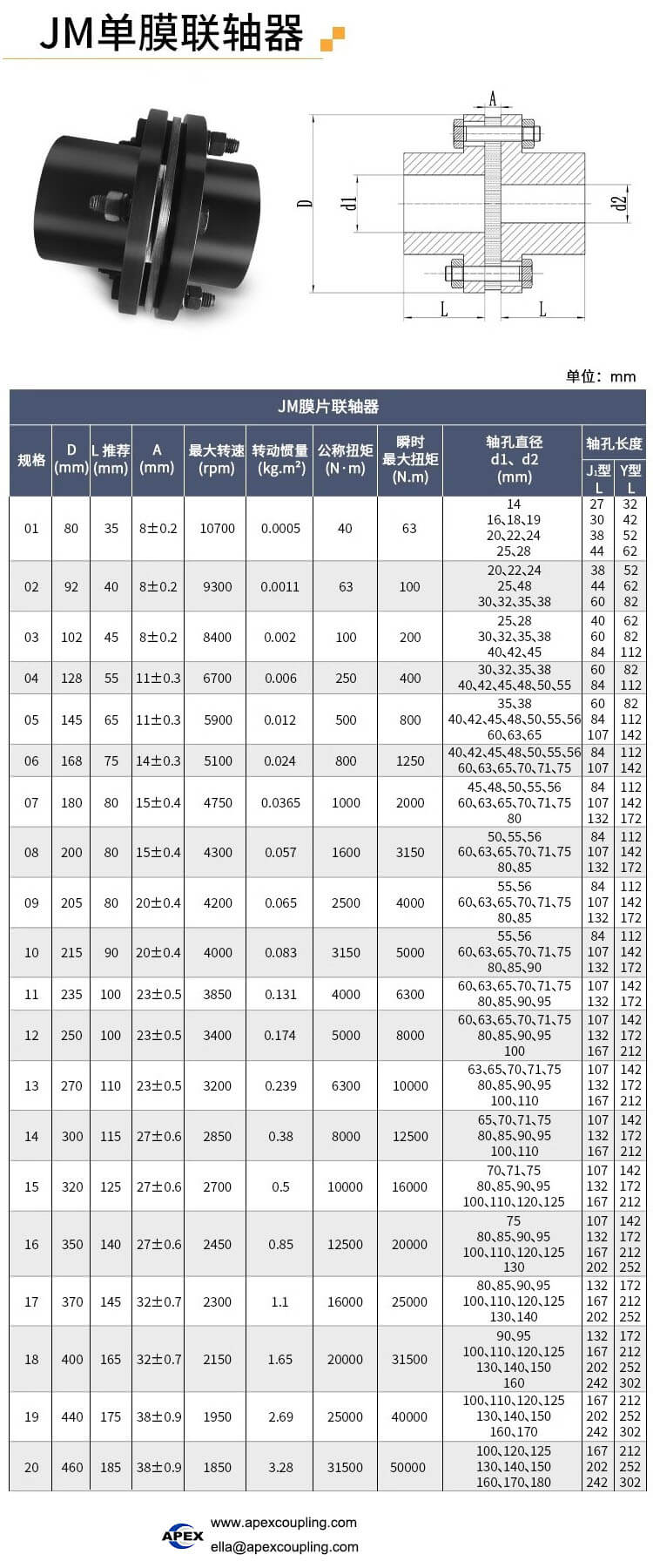

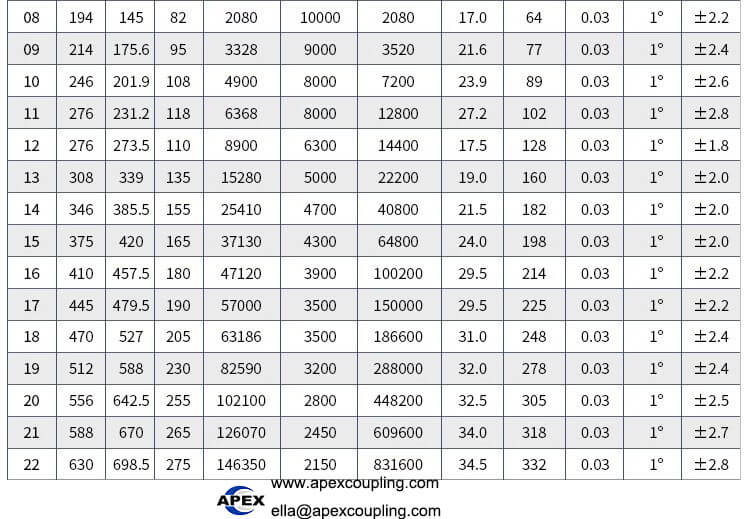

DJM Series – Single Diaphragm Couplings

Model	Outer Diameter (mm)	Length (mm)	Inner Bore Range (mm)
DJM00	57	44.9	8–20
DJM01	68	58.1	12–22
DJM02	81	58.6	12–32
DJM03	93	66.4	15–35
DJM04	104	79.2	20–42
DJM05	126	95.7	25–50
DJM06	143	107.7	30–60
DJM07	168	132.8	35–75
DJM08	194	145	40–80
DJM09	214	175.6	45–95
DJM10	246	201.9	50–105
DJM11	276	231.2	50–110
DJM12	276	273.5	30–118

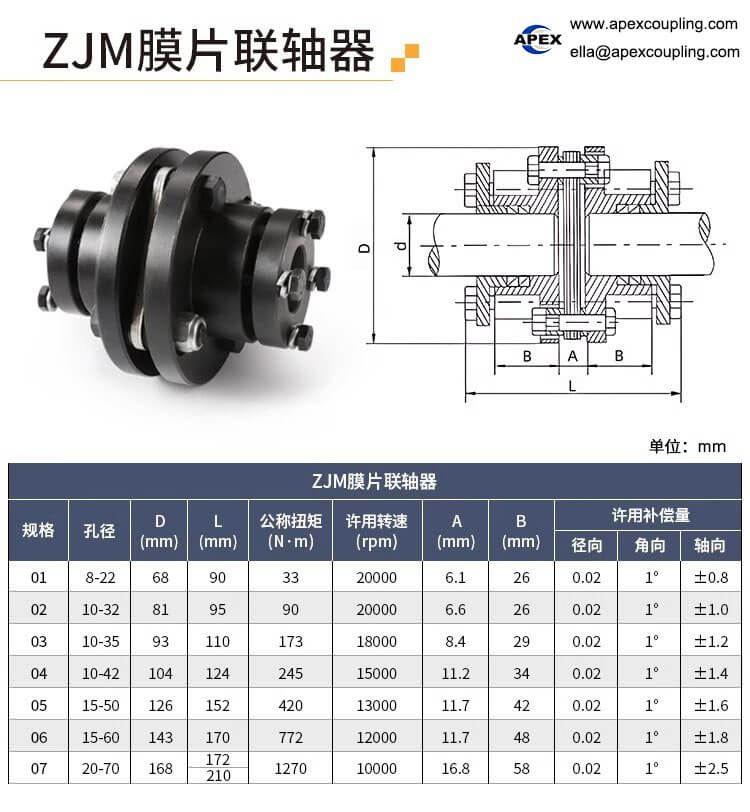

ZJM Series – Single Diaphragm Couplings

Model	Outer Diameter (mm)	Length (mm)	Inner Bore Range (mm)
ZJM01	68	90	8–22
ZJM02	81	95	10–32
ZJM03	93	110	10–35
ZJM04	104	124	10–42
ZJM05	126	152	15–50
ZJM06	143	170	15–60
ZJM07	168	210	20–70

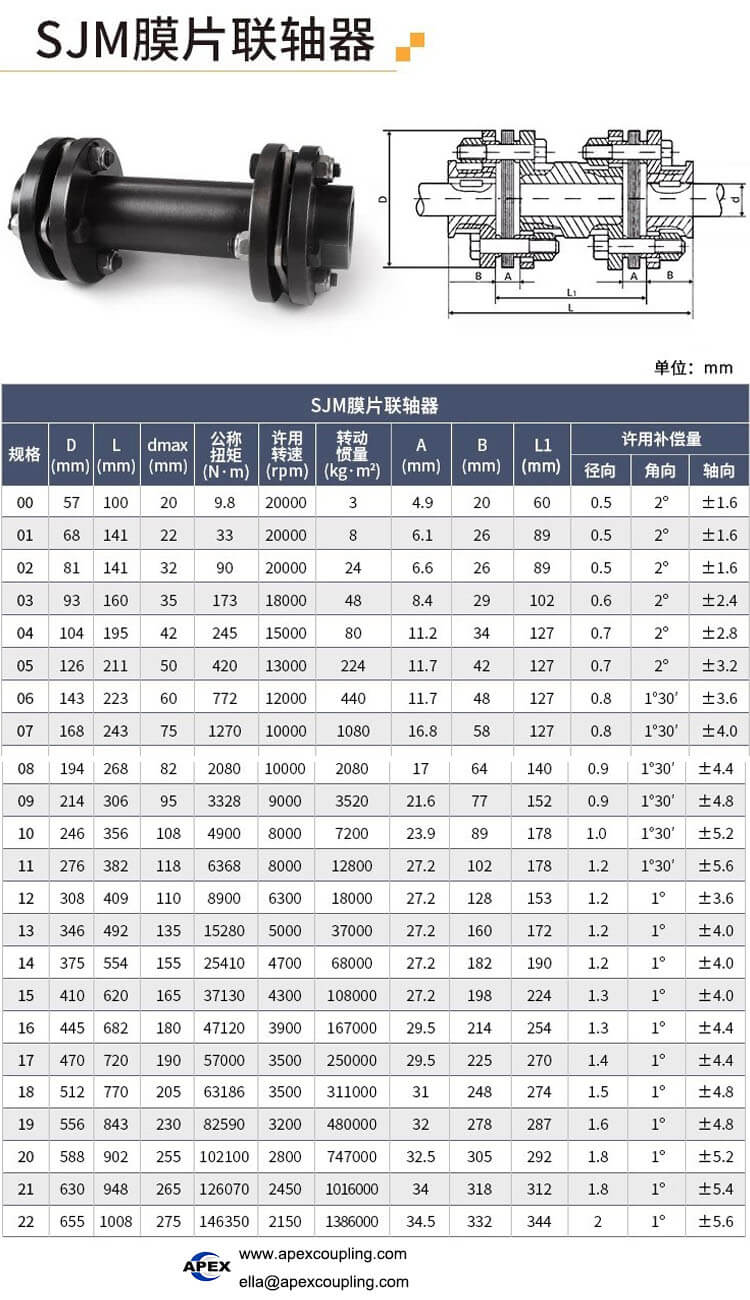

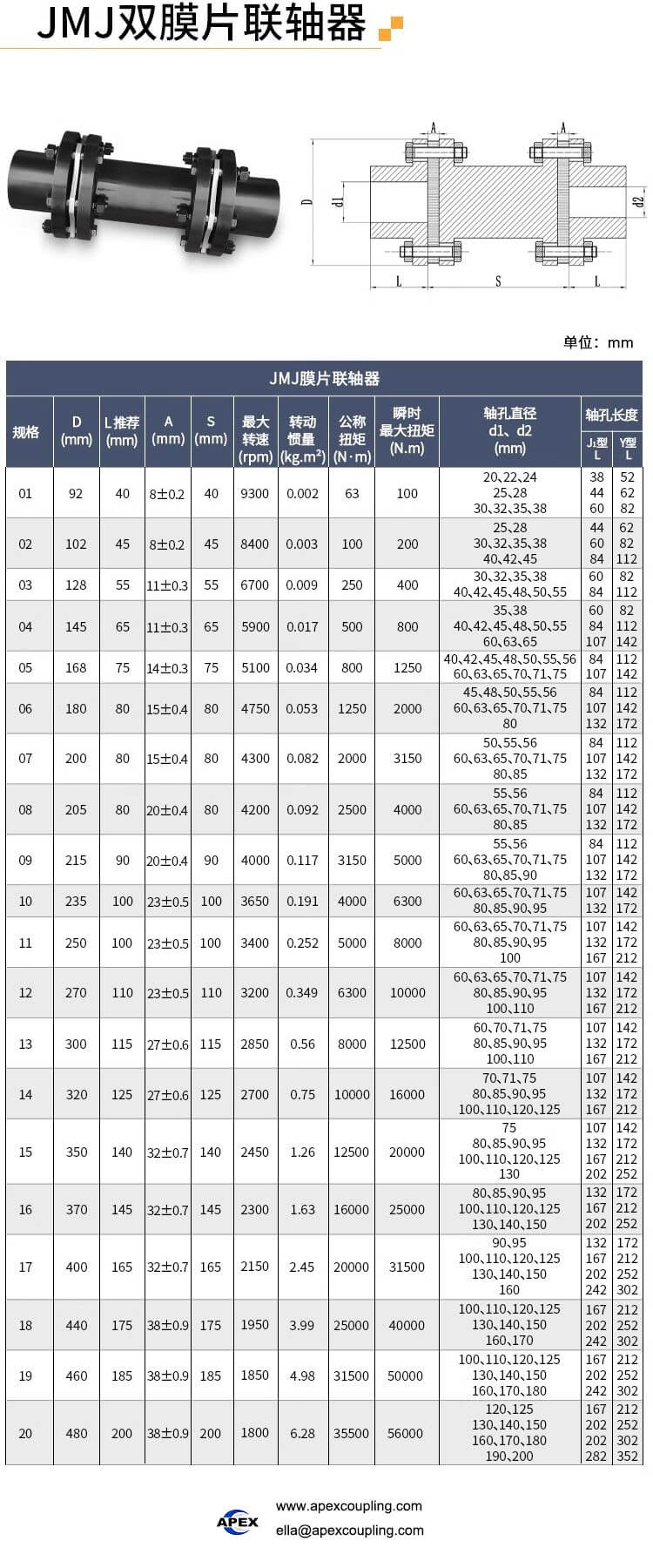

SJM Series

Model	Note
SJM	Double diaphragm – please contact customer service for specifications

DJM disc coupling, SJM double disc coupling, ZJM flexible diaphragm coupling, 304 stainless steel disc coupling, 45 steel flexible coupling, keyway shaft coupling.
