Diaphragm Couplings Flexible double disc coupling
Model Number
JMJ08
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
| Category | Details / Specifications |
|---|---|
| Product Name / Models | JMI, JMII, JMU Types Diaphragm Couplings; Customizable JMJ5, JMJ6, JMJ7, JMJ8 Double Diaphragm Couplings. (Note: Single diaphragm versions are designed for easy disassembly.) |
| Key Features | 1. Quiet Operation: Excellent noise reduction. 2. High-Temperature Performance: Suitable for high-temperature working conditions. 3. High Load Capacity: Can handle significant loads. 4. Stable Operation: Simple structure ensures stable performance and good vibration damping. 5. Precision Construction: Utilizes an expansion sleeve connection to precisely control shaft rotation, allowing for fine-tuned operation. |
| Material | Made from 45# steel, offering good toughness and high hardness. |
| Example Specifications (JMJ08 Model) | • Brand: Apexcoupling • Model: JMJ08 • Category: Diaphragm Coupling Controller • Rated Torque: 2500 N·m • Maximum Speed: 5000 RPM • Outer Diameter: 205 mm • Inner Diameter (Bore Range): 55-85 mm • Length: 600 cm • Weight: 23 kg • Color: Black • Origin: Jiangsu, China • Import Status: No (Domestically produced) • Primary Application: Power Transmission • Primary Function: Noise and vibration damping • Packaging: Wooden Case • Customization: Yes • Order Number: YMZG-JMJ-05-06-07-08 |
| Customization Support | Supported. The product comes in various models and specifications. Custom manufacturing based on provided drawings or samples is available. |

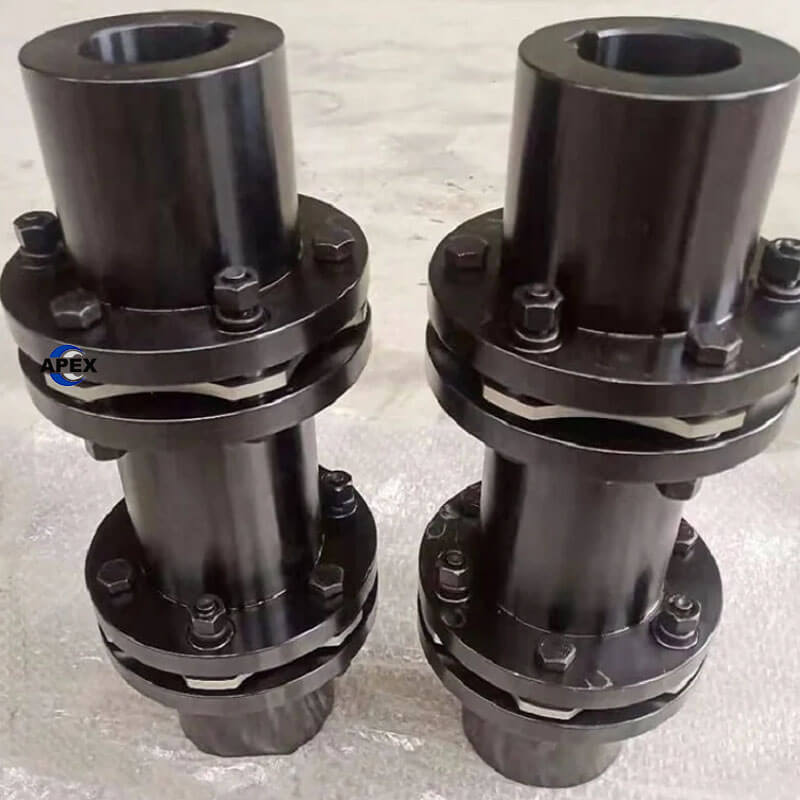

Product Show
Custom Manufacturing of JMJ5, JMJ6, JMJ7, JMJ8 Double Diaphragm Couplings (Easy Single Diaphragm Disassembly)
