Diaphragm Coupling Manufacturers: Your Trusted Partner for High-Precision Power Transmission Solutions

When it comes to precision motion control, the quality of your coupling directly impacts the performance and reliability of your entire system. As professional diaphragm coupling manufacturers, Apex Coupling combines decades of engineering expertise with advanced manufacturing capabilities to deliver high-precision couplings that meet the most demanding application requirements. Our DLT series diaphragm coupling represents the culmination of this expertise, featuring aerospace-grade materials, precision manufacturing, and innovative design to provide exceptional performance for servo motors, stepper motors, and high-speed automation applications.

Why Choose Apex Coupling as Your Diaphragm Coupling Manufacturers?

As leading diaphragm coupling manufacturers, we distinguish ourselves through our commitment to quality, precision, and customer satisfaction:

• Factory Direct Manufacturing: As a source manufacturer, we control every aspect of production, ensuring consistent quality and competitive pricing without middleman markups.

• Engineering Expertise: Our team specializes in power transmission components, with years of experience in designing and manufacturing precision couplings for diverse industries.

• Comprehensive Quality Control: Every coupling undergoes rigorous inspection to ensure it meets our exacting standards for precision and reliability.

• Customization Capabilities: We offer complete OEM and ODM services, tailoring our diaphragm coupling products to your specific requirements.

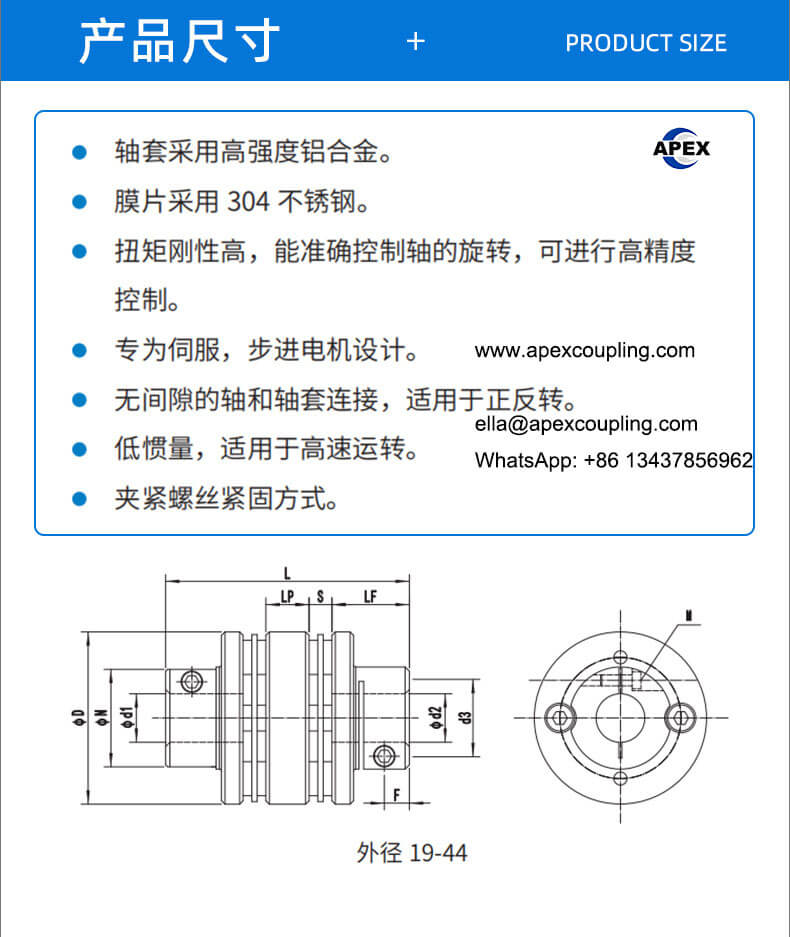

Superior Materials for Uncompromising Performance

What sets our diaphragm coupling apart is the meticulous attention to material quality:

• Aerospace Aluminum Alloy Hubs: The coupling hubs are precision-machined from high-strength aerospace aluminum alloy, a material specifically chosen for its exceptional strength-to-weight ratio and dimensional stability. Each hub undergoes anodized surface treatment, providing enhanced corrosion resistance and a professional appearance while maintaining precise dimensional accuracy.

• 304 Stainless Steel Diaphragm: The heart of this diaphragm coupling is its precision-formed flexible element, manufactured from 304 stainless steel. This premium material offers:

  • High elasticity for effective misalignment compensation

  • Large torque capacity for demanding applications

  • Exceptional fatigue strength for long-term reliability

  • Zero backlash operation for accurate motion control

  • Extended service life through superior wear resistance

• 12.9 Grade High-Strength Screws: All fastening hardware is manufactured to Grade 12.9 specifications, the highest standard for metric socket head cap screws, providing maximum clamping force and reliability under demanding operating conditions.

Precision Engineering for Optimal Performance

Every diaphragm coupling from our manufacturing facility is engineered to exacting standards:

• H7 Precision Bores: All finished bores are machined to H7 tolerance and 100% inspected, ensuring minimal clearance and precise shaft engagement. This high concentricity guarantees accurate alignment, reduces vibration, and maximizes power transmission efficiency.

• Double Diaphragm Design: The dual-diaphragm configuration provides enhanced misalignment capability while maintaining high torsional stiffness. This design is particularly effective for servo and stepper motor applications requiring precise positioning under varying loads.

• Low Inertia Design: Optimized geometry ensures low rotational inertia, making our diaphragm coupling ideal for high-speed applications requiring rapid acceleration and deceleration.

• Zero Backlash Operation: The precision-engineered diaphragm provides zero rotational clearance, essential for applications requiring accurate positioning and repeatability.

Key Advantages of Our Diaphragm Coupling Design

As experienced diaphragm coupling manufacturers, we incorporate features that deliver tangible benefits:

• High Torsional Stiffness: Provides excellent torque transmission without wind-up or compliance, ensuring precise motion control.

• No Reaction Force: The diaphragm design accommodates misalignment without generating damaging reaction forces on bearings.

• Maintenance-Free: No wearing parts, providing long-term reliability without lubrication.

• Bidirectional Performance: Identical characteristics in both clockwise and counterclockwise rotation.

• Misalignment Compensation: Accommodates angular, parallel, and axial misalignment while maintaining constant velocity.

• Corrosion Resistance: Aluminum alloy hubs with stainless steel diaphragm ensure reliable performance in diverse environments.

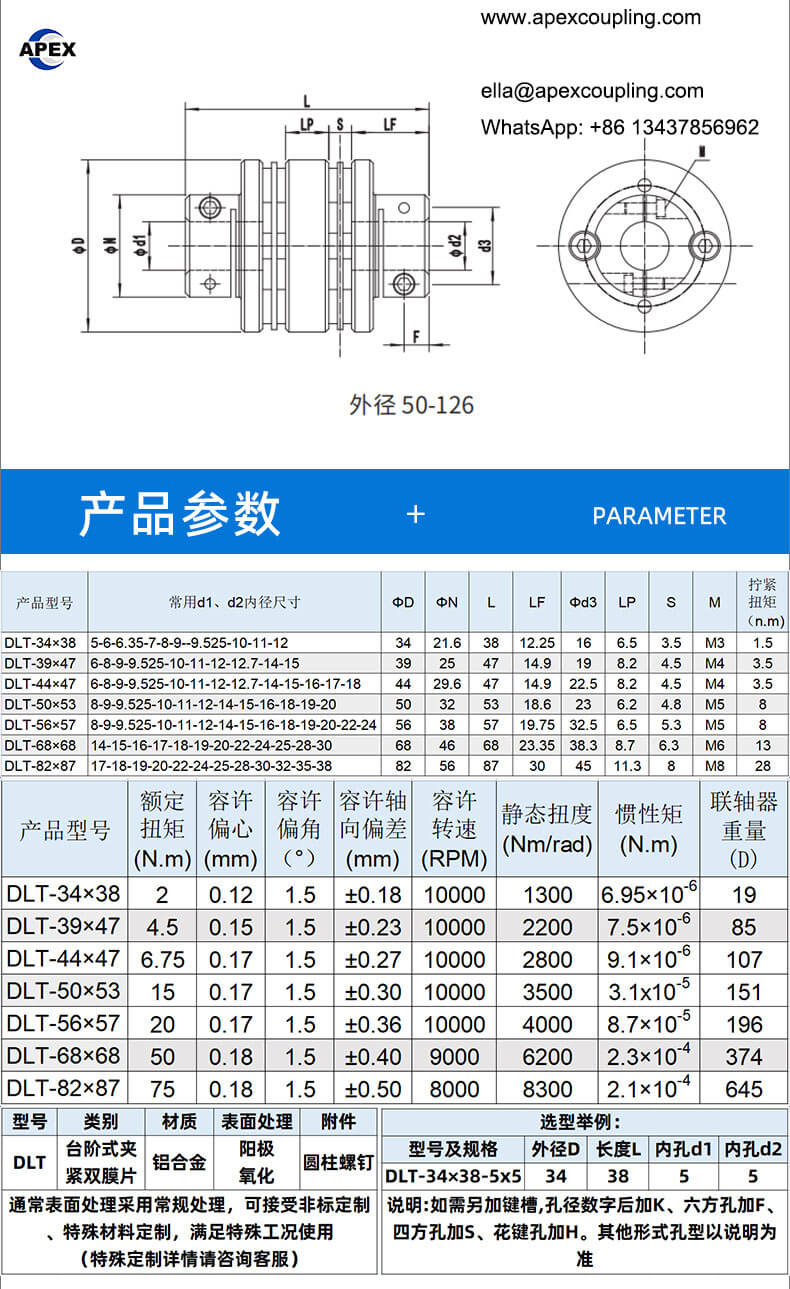

Technical Specifications

• Hub Material: Aerospace Aluminum Alloy with anodized finish

• Diaphragm Material: 304 Stainless Steel

• Fastening: 12.9 grade socket head cap screws

• Maximum Speed: 10,000 RPM

• Allowable Torque: 2 N·m (standard) to custom high-torque configurations

• Allowable Eccentricity: 0.12 mm

• Allowable Angular Misalignment: 1.5°

• Bore Type: Non-through design with bolt clamping

• Surface Treatment: Anodizing

Ideal Applications

Our diaphragm coupling is specifically engineered for high-precision applications:

• Servo Motor Drives: High torsional stiffness and rapid response for closed-loop control.

• Stepper Motor Systems: Zero backlash operation ensures accurate positioning for step motor applications.

• CNC Machinery: Precision power transmission for machine tools and machining centers.

• Robotics: Reliable connections for robotic arms and automated systems.

• Semiconductor Equipment: Clean, maintenance-free operation for wafer handling and processing.

• Medical Devices: Precision motion control for diagnostic and therapeutic equipment.

• Packaging Machinery: Smooth, accurate drives for labeling and filling machines.

• Printing Equipment: Registration-critical drives requiring consistent performance.

Quality Assurance and Customization

As professional diaphragm coupling manufacturers, we maintain strict quality control:

• Material Traceability: Premium materials sourced from certified suppliers.

• Precision Machining: Advanced CNC equipment ensures consistent quality.

• 100% Inspection: Every coupling undergoes dimensional verification.

• Customization: OEM, ODM, and OBM support for specialized requirements including custom bores, keyways, and configurations.

Why Choose Apex Coupling as Your Diaphragm Coupling Manufacturers?

• Factory Direct: Competitive pricing with quality assurance.

• Engineering Support: Technical assistance for selection and application.

• Comprehensive Range: Full series of diaphragm couplings for diverse applications.

• Custom Capability: Tailored solutions for unique requirements.

• Quality Commitment: ISO-certified manufacturing processes.

Ready to Partner with Professional Diaphragm Coupling Manufacturers?

Contact our engineering team today with your application requirements, shaft sizes, and operating parameters. Request detailed specifications, dimensional drawings, and a competitive quotation for our premium diaphragm couplings. Experience the Apex difference in quality, precision, and service.
