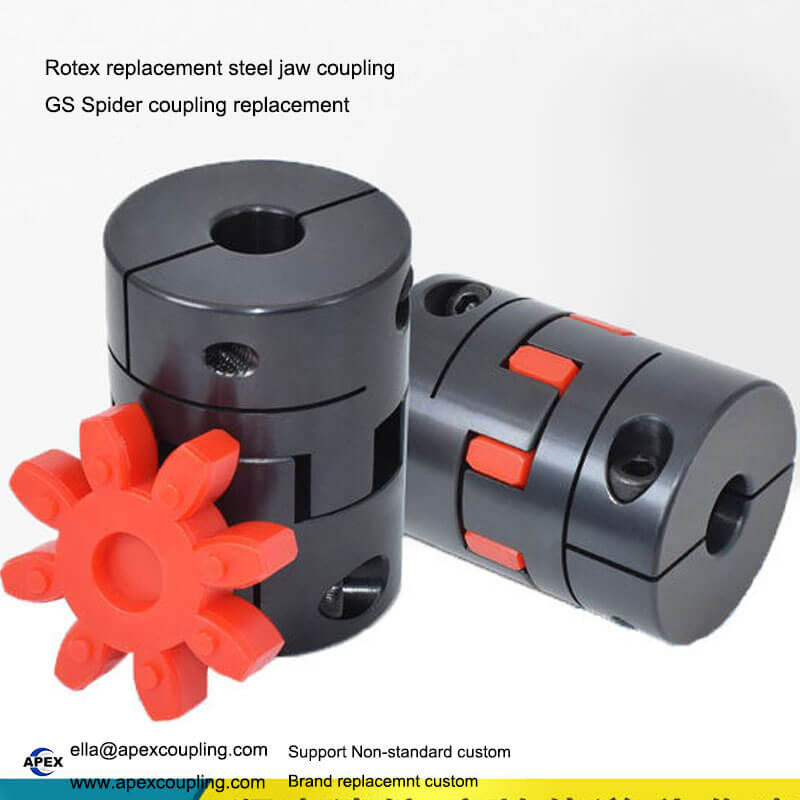

DFCS Elastic Jaw Coupling – 45# Steel Clamp Type for Servo Motor & Ball Screw | E‑LDCK11 / MFS01 Compatible | Rotex Replacement
Model Number
Check below, custom
| Model | Outer Diameter (mm) | Length (mm) | Inner Bore Range (mm) |
|---|---|---|---|
| DFCS-30*40 | 30 | 40 | 5–16 |
| DFCS-40*66 | 40 | 66 | 6–24 |
| DFCS-55*78 | 55 | 78 | 12–32 |
| DFCS-65*90 | 65 | 90 | 14–40 |
Note: Inner bore is selectable within the listed range.
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description

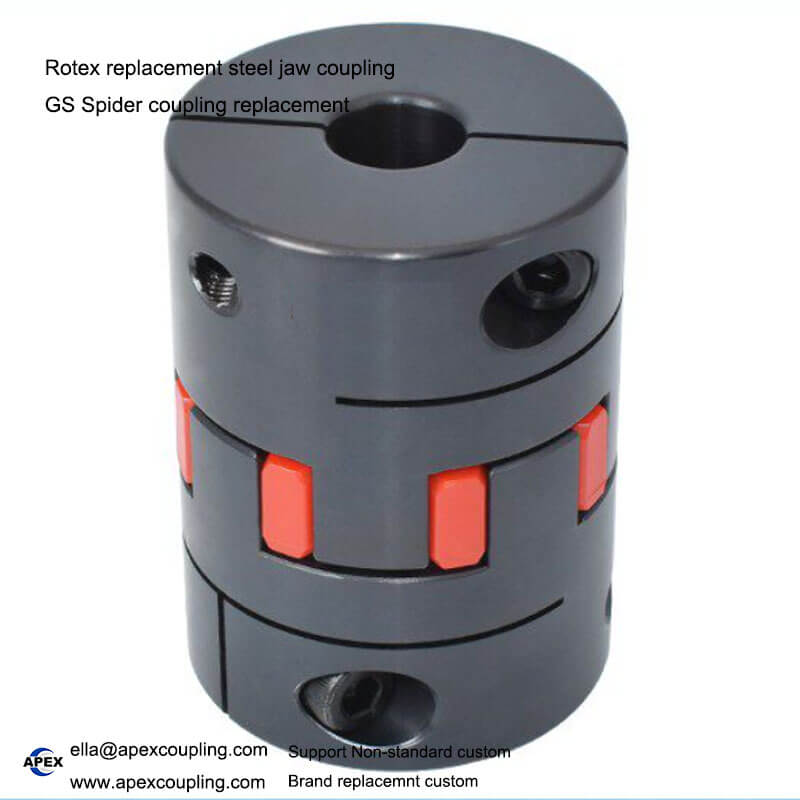

DFCS Elastic Jaw Coupling – 45# Steel Clamp Type for Servo Motor & Ball Screw
Factory Direct from Guangdong, China | 45# High-Quality Steel | Clamp Type (Split-Hub) | Zero Backlash | H7 Precision Bore | 12.9-Grade Screws | Imported Polyurethane Spider | E‑LDCK11 / MFS01 Compatible | Rotex Replacement | Custom Bores Available
Product Overview
The DFCS Elastic Jaw Coupling from Apexcoupling is a high-precision, flexible shaft coupling designed for reliable torque transmission, vibration damping, and misalignment compensation. Manufactured in Dongguan, Guangdong, China, this clamp-type jaw coupling is an ideal solution for servo motors, ball screws, encoders, and other precision drive systems. It is also a direct replacement for E‑LDCK11, MFS01, and Rotex style couplings.
The coupling features 45# high-quality steel hubs with a clamp-type (split-hub) mounting and 12.9-grade high-rigidity screws (nickel-plated or blackened). The imported polyurethane spider offers excellent wear resistance, oil resistance, electrical insulation, and a wide adjustable performance range. The H7 precision bore ensures high concentricity and a secure shaft fit, while the zero backlash design makes it suitable for both forward and reverse rotation.
With its detachable design, installation and maintenance are quick and easy. The coupling absorbs vibration, compensates for radial, angular, and axial misalignments, and provides reliable, long-life performance. The 3D chamfered edges prevent hand injuries, and every bore is 100% inspected with plug gauges to ensure precision. Produced on German-imported high-precision machining centers, the DFCS coupling meets export-quality standards and is a reliable alternative to imported ROTEX series couplings.
📧 Get a Quote: ella@apexcoupling.com | WhatsApp/WeChat: +86 13431039760
Key Attributes
| Attribute | Value |
|---|---|
| Brand | Apexcoupling |
| Model | DFCS Elastic Jaw Coupling |
| Coupling Type | Jaw / Spider Coupling (Clamp Type) |
| Material | 45# High-Quality Steel |
| Elastomer Material | Imported Polyurethane |
| Bore Tolerance | H7 Precision |
| Mounting | Clamp Type (Split-Hub) |
| Screws | 12.9-Grade (Nickel-Plated or Blackened) |
| Backlash | Zero |
| Compensation | Radial, Angular, Axial |
| Compatibility | E‑LDCK11, MFS01, Rotex Replacement |
| Surface Treatment | Black Oxide / Nickel Plating (optional) |
| Place of Origin | Dongguan, Guangdong, China |
| Certification | ISO Certified |
Key Features
| Feature | Benefit |
|---|---|
| 45# High-Quality Steel Hubs | High hardness, toughness, and wear resistance – precision and high torque |
| Clamp Type (Split-Hub) Mounting | Uniform clamping force, easy installation, and zero backlash |
| 12.9-Grade High-Rigidity Screws | Nickel-plated or blackened for corrosion resistance and powerful locking |

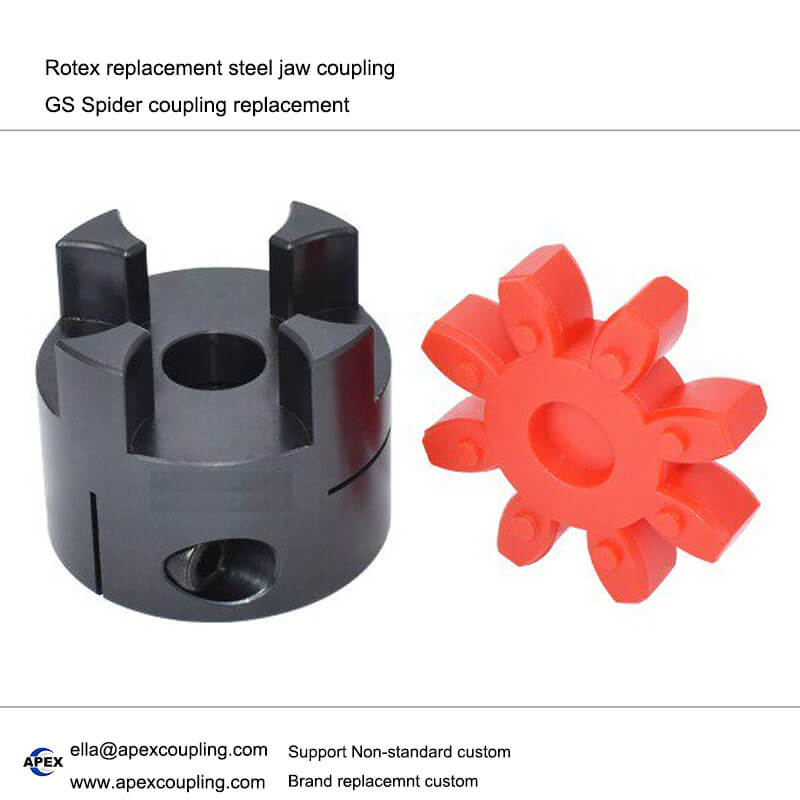

| Imported Polyurethane Spider | Wide adjustable performance range, excellent wear resistance, oil resistance, and electrical insulation |
| H7 Precision Bore | High concentricity, accurate shaft fit, and powerful locking |
| Zero Backlash | Suitable for forward and reverse rotation – ideal for servo and positioning applications |
| Vibration Absorption | Absorbs vibration and compensates radial, angular, and axial misalignments |
| Detachable Design | Easy installation and maintenance |

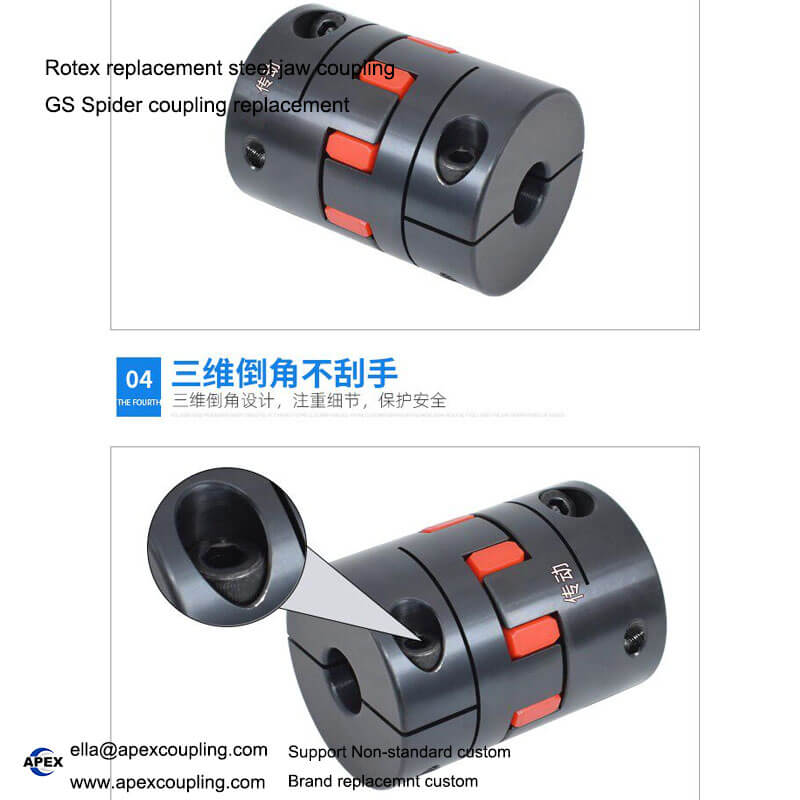

| 3D Chamfered Edges | Prevents hand injuries during installation – attention to detail and safety |
| 100% Plug Gauge Inspection | Every bore is inspected to ensure H7 precision |
| German-Imported Machining Center | High-precision manufacturing for export-quality consistency |
| Rotex Replacement | Direct interchangeability with imported ROTEX series couplings |
| Factory Direct | Competitive pricing and stable supply from China |

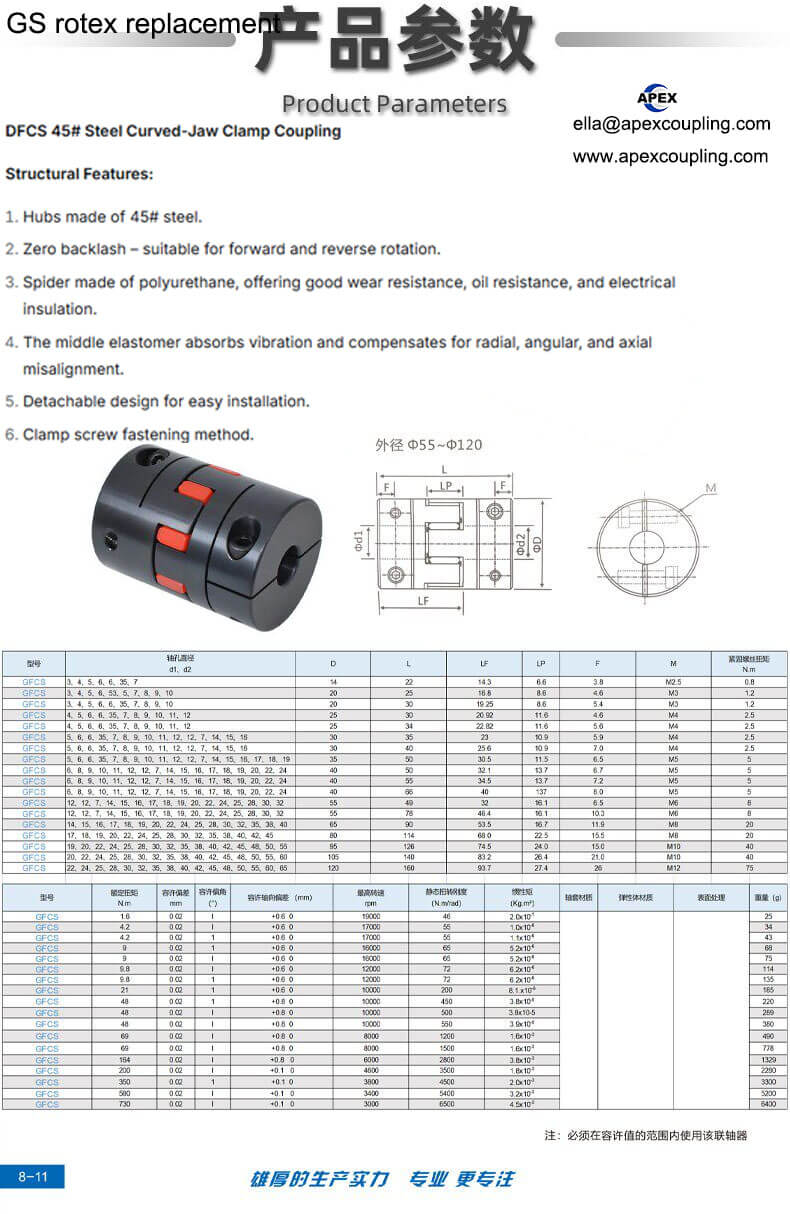

Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | DFCS Elastic Jaw Coupling |
| Brand | Apexcoupling |
| Type | Jaw / Spider Coupling (Clamp Type) |
| Material | 45# High-Quality Steel |
| Elastomer | Imported Polyurethane |
| Bore Tolerance | H7 Precision |
| Mounting | Clamp Type (Split-Hub) |
| Screws | 12.9-Grade, Nickel-Plated or Blackened |
| Backlash | Zero |
| Compensation | Radial, Angular, Axial |
| Compatibility | E‑LDCK11, MFS01, Rotex Replacement |
| Surface Treatment | Black Oxide / Nickel Plating (optional) |
| Place of Origin | Dongguan, Guangdong, China |
| Certification | ISO |

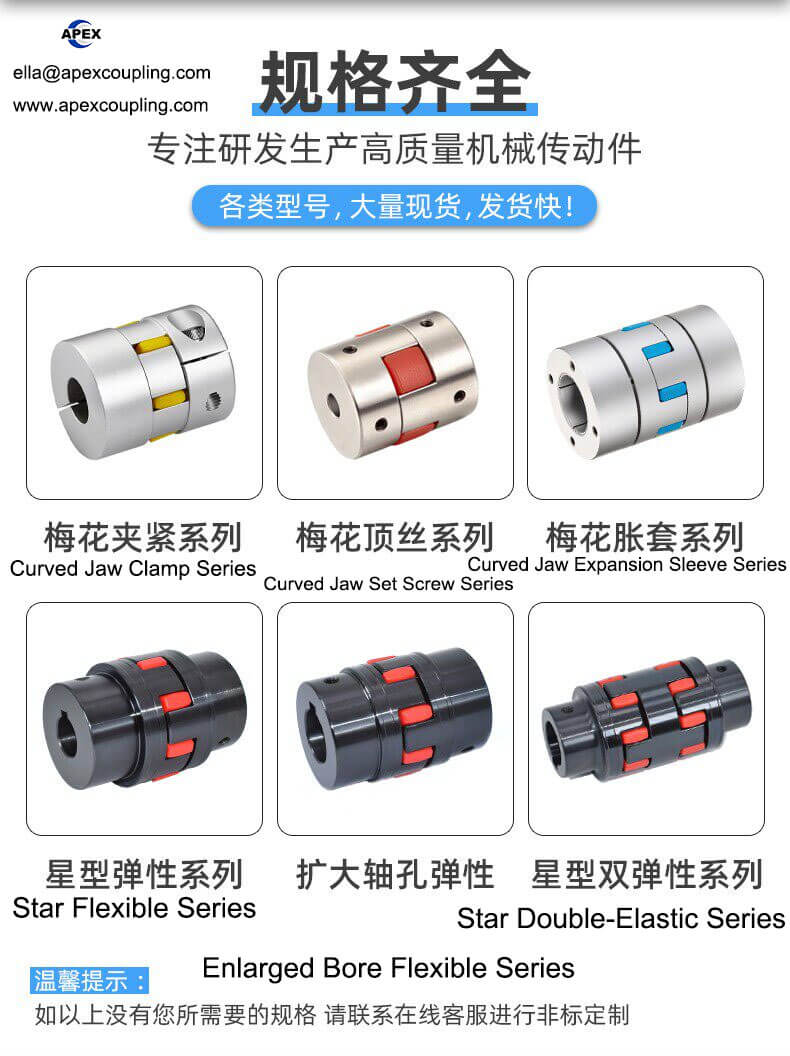

Series Available
Apexcoupling offers a full range of jaw couplings to meet different mounting and performance requirements:
| Series | Description |
|---|---|
| Clamp Type (DFCS) | Split-hub clamping for zero backlash and easy installation |
| Star Elastic Series | Standard star-shaped elastic spider |
| Set Screw Type | Economical set screw mounting |
| Enlarged Bore Elastic | Larger bore diameters for heavy-duty applications |
| Expansion Sleeve Type | For high-torque and shaft-locking applications |
| Double Elastic Star Series | Enhanced vibration damping and misalignment compensation |
If you cannot find the size you need, please contact us for custom manufacturing.
Applications
The DFCS elastic jaw coupling is widely used in:
Servo Motors – High-precision closed-loop control systems
Ball Screws – Smooth, reaction-free linear motion
Encoders – Precise motion feedback and positioning
CNC Machine Tools – Milling, turning, drilling, and engraving machines
Factory Automation (FA) – Robotic arms, conveyors, and pick-and-place systems
Packaging Machinery – High-speed packaging and filling lines
Printing Machinery – Registration and tension control systems
Semiconductor Equipment – Wafer handling and precision stages
Medical Equipment – Diagnostic and surgical positioning devices
General Industrial Drives – Where zero backlash and precise motion control are required
Customization Options
Apexcoupling offers extensive customization for DFCS jaw couplings:
Custom bore diameters and lengths
Keyway, hexagon, square, and spline bores
Alternative materials: 45# steel, alloy steel, stainless steel
Alternative elastomer materials: PU, NBR, Viton
Surface treatments: black oxide, nickel plating, zinc plating
Drawing-based production
OEM / ODM / OBM with your branding
📧 Send your drawing or requirements to: ella@apexcoupling.com
Why Choose Apexcoupling?
🏭 Factory Direct in Dongguan, China – Integrated manufacturing and trading, competitive pricing
🔩 Premium 45# Steel Hubs – High hardness, toughness, and wear resistance
⚙️ H7 Precision Bore – 100% Plug Gauge Inspected – High concentricity and accurate fit
🧵 Imported Polyurethane Spider – Wear-resistant, oil-resistant, and electrically insulating
🔧 Clamp Type with 12.9-Grade Screws – Zero backlash and secure locking
📐 Full Customization – Bores, keyways, and non-standard sizes available
✅ ISO Certified & Export Quality – Reliable alternative to imported ROTEX couplings
📦 Fast Delivery – Factory stock and efficient production for urgent orders
💬 Expert Technical Support – We help you select the correct coupling for your application
Get a Quote Today
Ready to order or need more information? Contact us directly:
📧 Email: ella@apexcoupling.com
📱 WhatsApp / WeChat: +86 13431039760
🌐 Website: www.apexcoupling.com
We reply within 24 hours with pricing, availability, and technical recommendations.
Product Tags: DFCS elastic jaw coupling, clamp type jaw coupling, 45# steel jaw coupling, servo motor coupling, ball screw coupling, zero backlash coupling, Rotex replacement coupling, E-LDCK11 coupling, MFS01 coupling, polyurethane spider coupling, H7 precision coupling, Apexcoupling
clamp type jaw coupling
45# steel jaw coupling
servo motor coupling
ball screw coupling
zero backlash coupling
Rotex replacement coupling
E-LDCK11 coupling
MFS01 coupling
polyurethane spider coupling
H7 precision coupling
Product Show

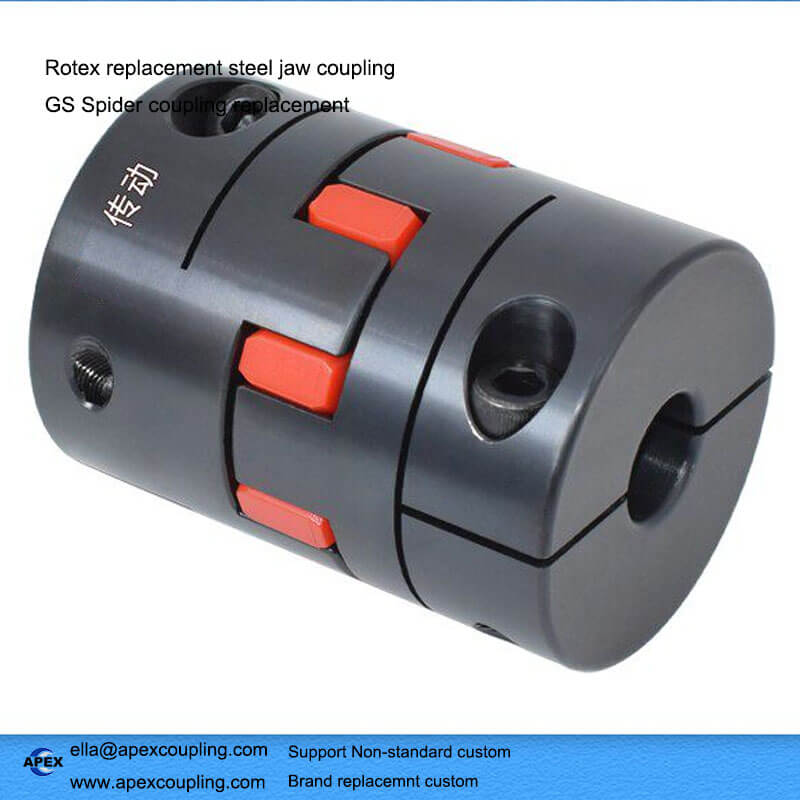

DFCS elastic jaw coupling
