Product Overview

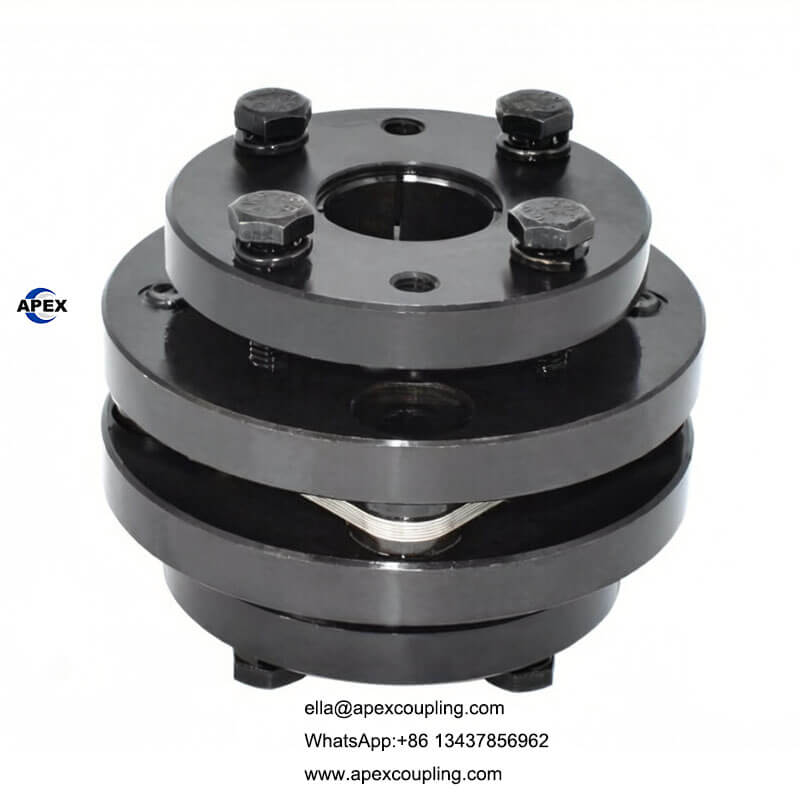

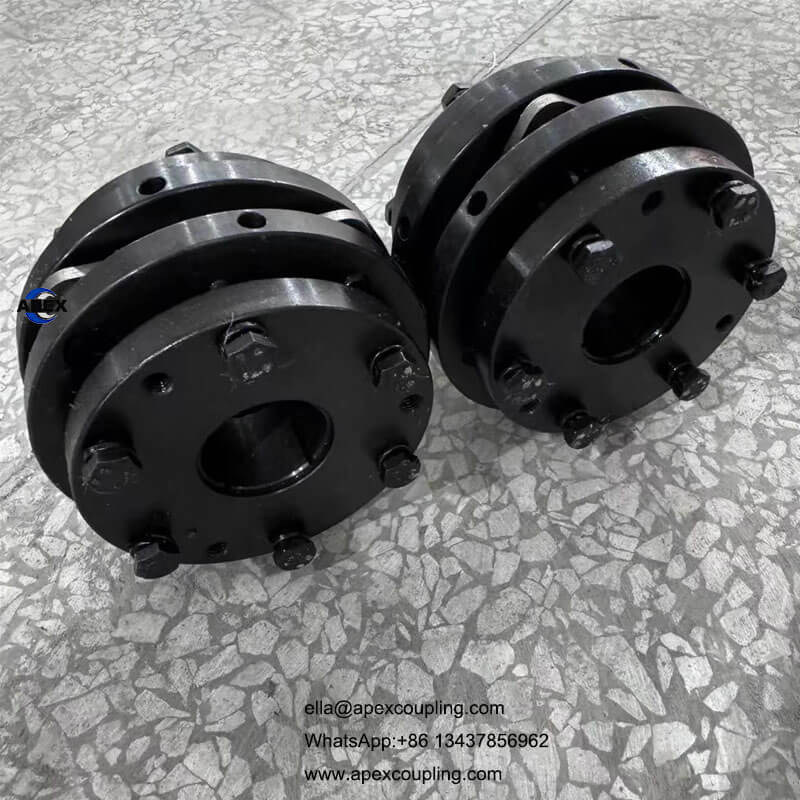

The DBL41 Double Diaphragm Keyless Coupling is a precision flexible coupling designed for high-performance servo and stepper motor applications. Featuring a keyless taper clamp (shrink disc) connection, this coupling delivers zero backlash, high torsional stiffness, and exceptional torque capacity. The double 304 stainless steel diaphragm compensates for angular, parallel, and axial misalignment while maintaining high-speed capability up to 15,000 rpm.

Key Features

• Keyless Taper Clamp Connection – Easy installation and removal, zero backlash

• Double 304 Stainless Steel Diaphragm – Excellent flexibility, corrosion resistance, and fatigue life

• High Torque Capacity – Rated torque up to 420 N·m

• High Speed Capability – Maximum speed 15,000 rpm

• Zero Backlash – No rotational play, identical characteristics clockwise and counterclockwise

• Misalignment Compensation – Accommodates radial, angular, and axial deviations

• High-Strength Material – 45# high-quality steel hub (alloy steel option)

• H7 Bore Accuracy – Precise shaft fit for high concentricity

•

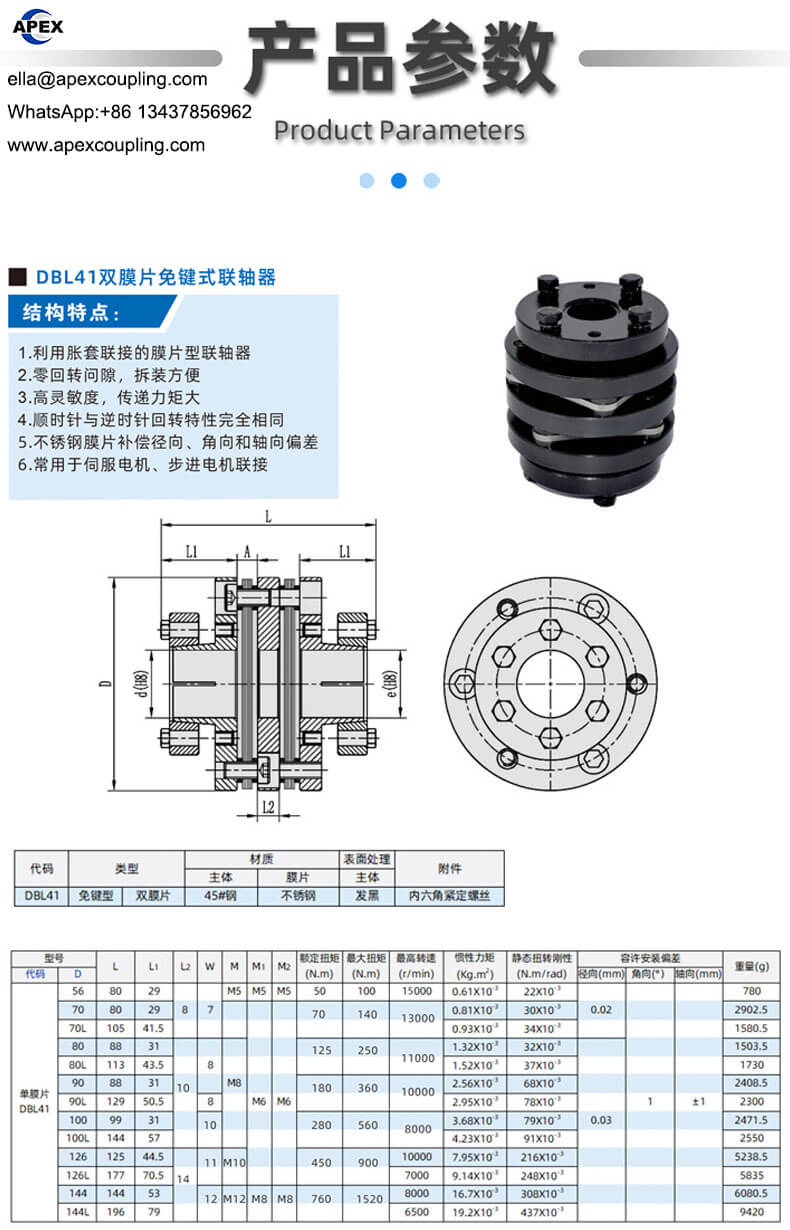

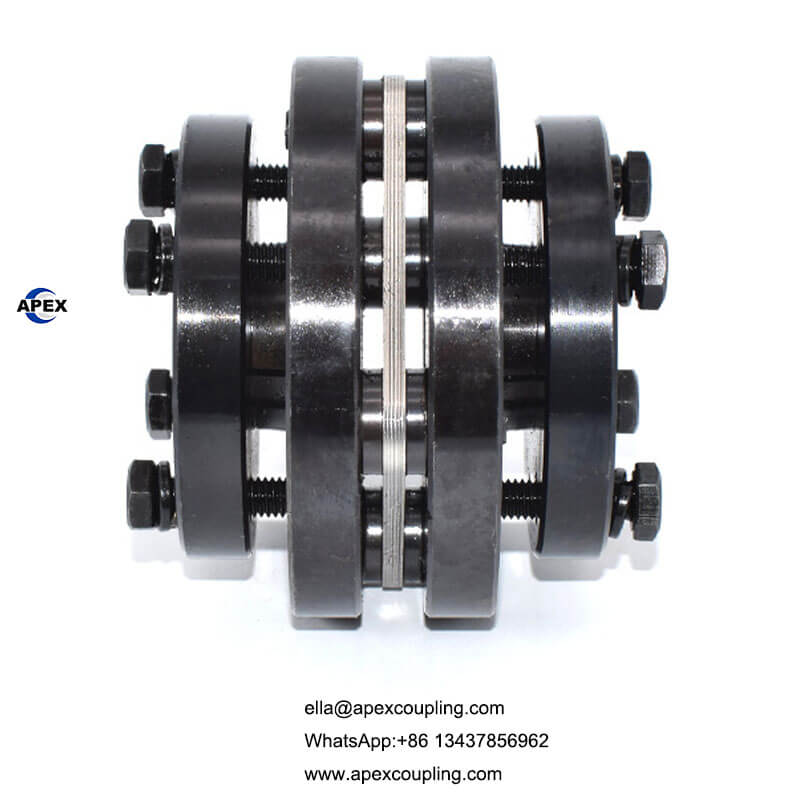

Technical Specifications

Note: Weight specification shown as 4.18g – please confirm. Typical weight for this size is ~4.18 kg.

Standard Models (Examples)

Custom sizes available. Please contact with your shaft diameters and torque requirements.

Full size range available upon request. Custom bores, keyways, and taper clamp configurations available.

Design & Operating Principle

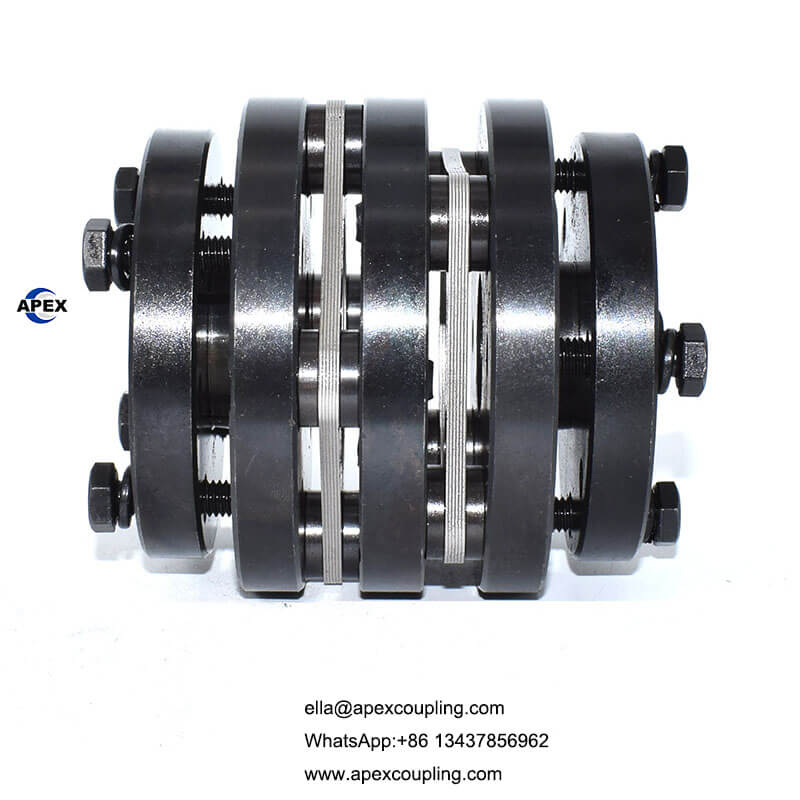

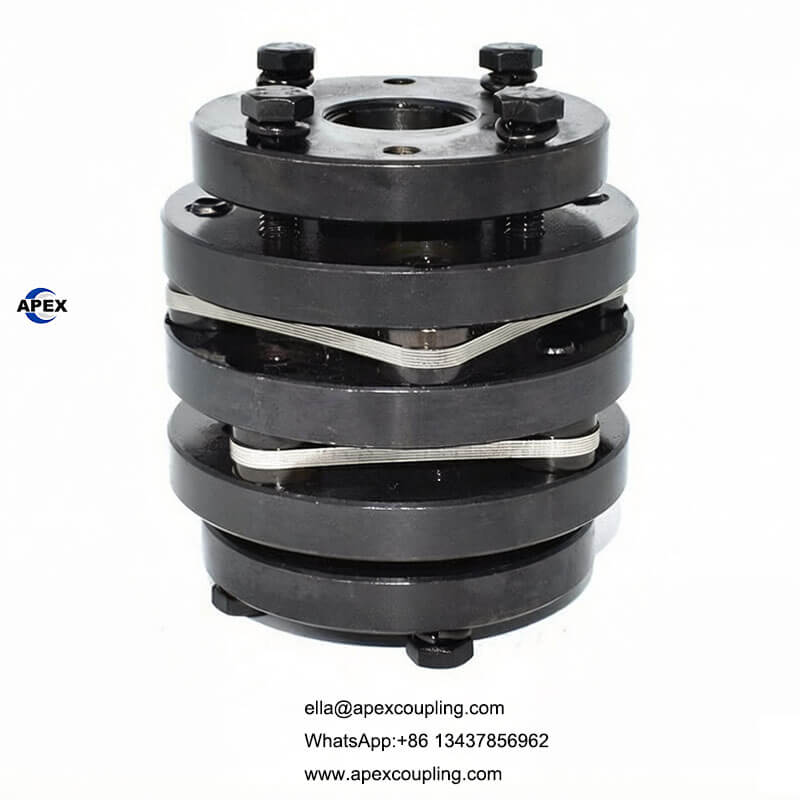

The DBL41 coupling consists of:

• Two high-strength steel hubs with taper clamp (shrink disc) locking mechanism

• Double 304 stainless steel diaphragm assembly

How it works:
The taper clamp (keyless locking device) is tightened onto the shaft, creating a secure, zero-backlash connection without keyways or set screws. The double diaphragm flexes to accommodate misalignment while transmitting torque with high torsional stiffness.

Key advantages of the keyless taper clamp design:

• No keyway stress concentration

• Easy installation and removal

• Adjustable phase position (360°)

• Suitable for high-speed and reversing operations

•

Applications

• Servo motor drive systems

• Stepper motor precision positioning

• CNC machine tools

• Robotics and automation

• High-speed packaging machinery

• Semiconductor manufacturing equipment

• Printing presses

• Medical imaging and diagnostic equipment

• Aerospace test stands

• Renewable energy systems

Why Choose Apexcoupling DBL41 Series

• High torque capacity – 420 N·m suitable for demanding applications

• High speed – Up to 15,000 rpm

• Zero backlash – Critical for reversing and positioning accuracy

• Keyless taper clamp – Easy installation, no shaft damage

• Double diaphragm design – Superior misalignment compensation

• Factory direct – Customization available, competitive pricing

Customization Services

As a factory-direct manufacturer, we offer:

• Custom bore diameters (any size within range)

• Custom overall length and outer diameter

• Taper clamp (shrink disc) size adjustment

• Keyway or set screw options (though keyless is standard)

• Special materials (stainless steel hubs upon request)

• Surface treatments (black oxide, zinc plating, etc.)

Contact our engineering team for non-standard requirements.
