Customized MXL L H XH XXH Timing Belt Pulley – Stainless Steel & Aluminium

Factory Direct from Dongguan China | OEM / ODM | No MOQ | Free Sample Available | 0.05mm Concentricity | H7 Bore Tolerance | 6000+ Products in Stock | 48-Hour Dispatch

Product Overview

The Customized MXL L H XH XXH Timing Belt Pulley is a precision-machined power transmission component designed for synchronous belt drive systems. Manufactured by Apexcoupling in Dongguan, China, this timing pulley is available in stainless steel or aluminium and can be fully customized to match your specific application.

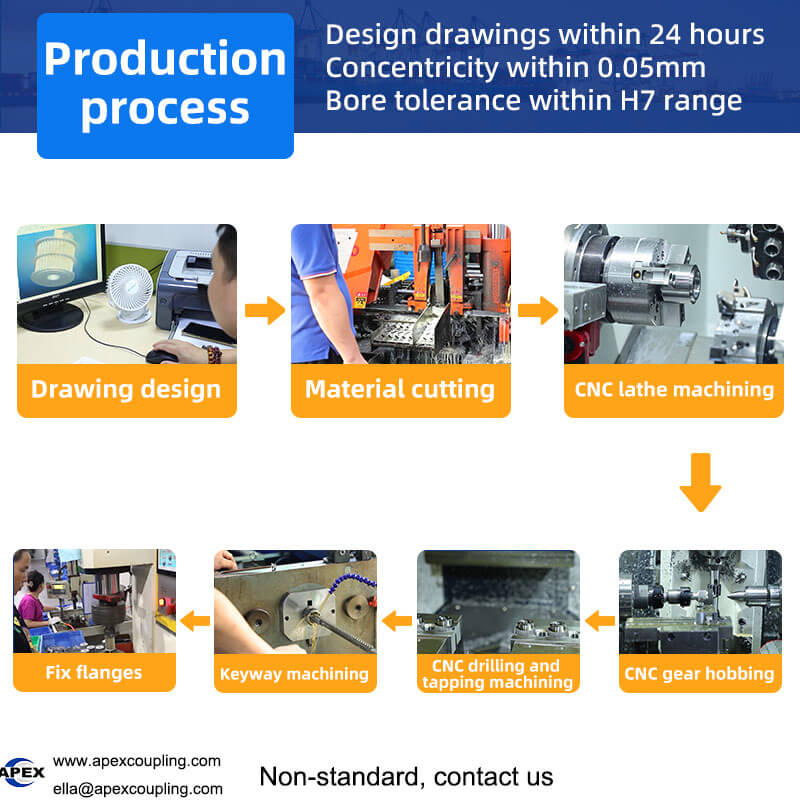

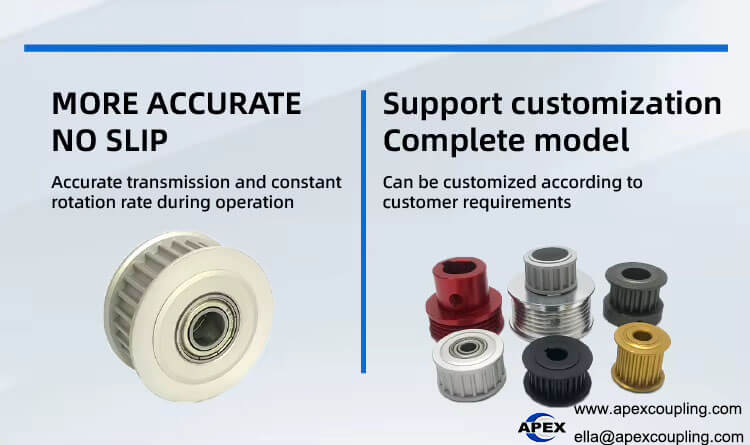

With CNC machining and CNC turning processes, the pulley achieves high concentricity within 0.05mm and bore tolerance within H7 range, ensuring accurate transmission, constant rotation rate, and no slip during operation. The open timing pulley design is suitable for a wide range of belt profiles, including MXL, XL, L, H, XH, XXH, T2.5, T5, T10, AT5, AT10, GT2, GT3, HTD 3M/5M/8M, and more.

Whether you need a standard pulley for roller shutters or a fully custom pulley for automation equipment, Apexcoupling offers OEM/ODM support, free samples, and no MOQ. Our factory has 6000+ products in stock, dispatches within 48 hours, and can deliver within 2 days for urgent orders.

📧 Get a Quote: ella@apexcoupling.com

Key Features

Technical Specifications

Available Belt Profiles & Standards

Apexcoupling manufactures timing belt pulleys for a wide range of synchronous belt profiles:

• MXL – Miniature extra light

• XL – Extra light

• L – Light

• H – Heavy

• XH – Extra heavy

• XXH – Double extra heavy

• T2.5 / T5 / T10 / AT5 / AT10

• GT2 / GT3

• HTD 3M / 5M / 8M

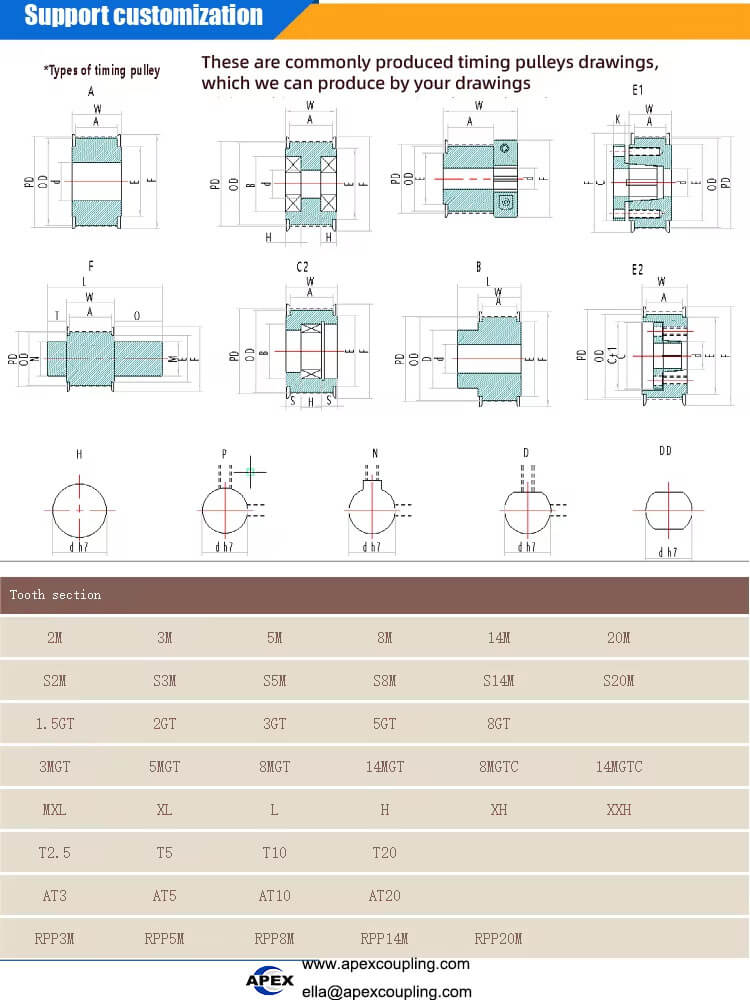

• Custom profiles – according to your drawing or sample

If you need a profile not listed here, please contact us. We can produce custom tooth profiles based on your requirements.

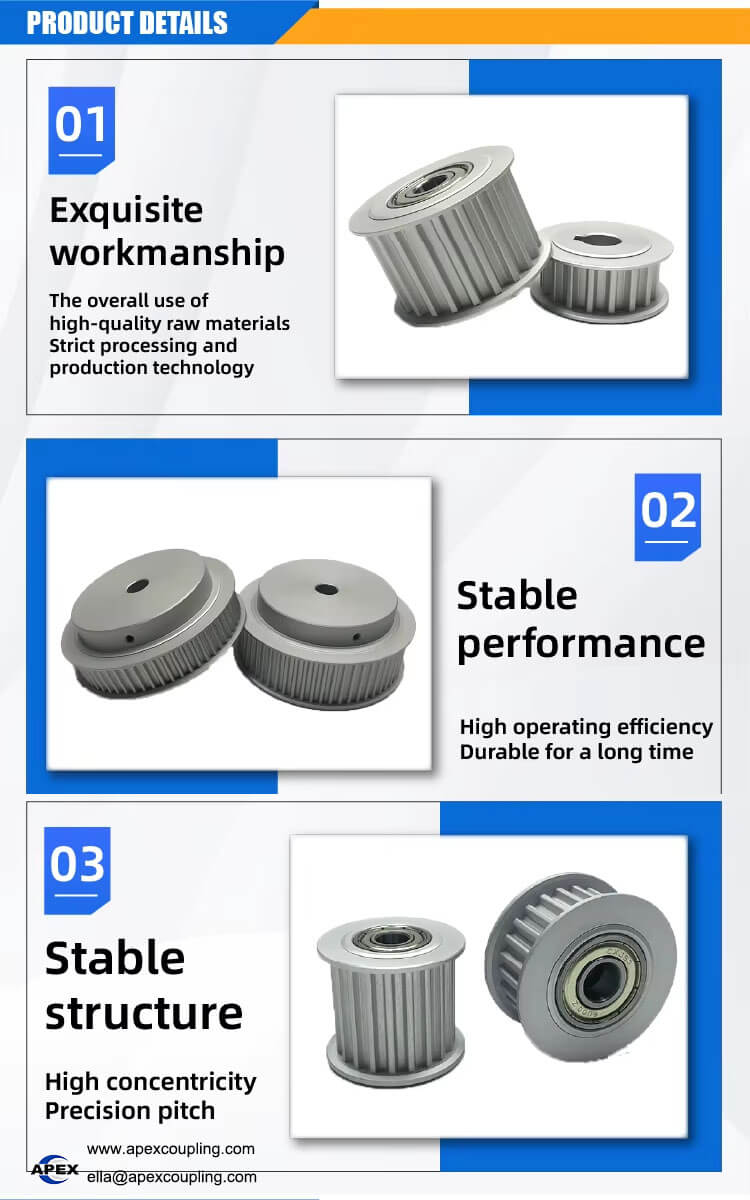

Product Details

01. Exquisite Workmanship
The overall use of high-quality raw materials, strict processing and production technology ensures a premium finish and reliable performance.

02. Stable Performance
High operating efficiency and durable for long-term use.

03. Stable Structure
High concentricity and precision pitch for smooth, no-slip transmission.

Customization Options

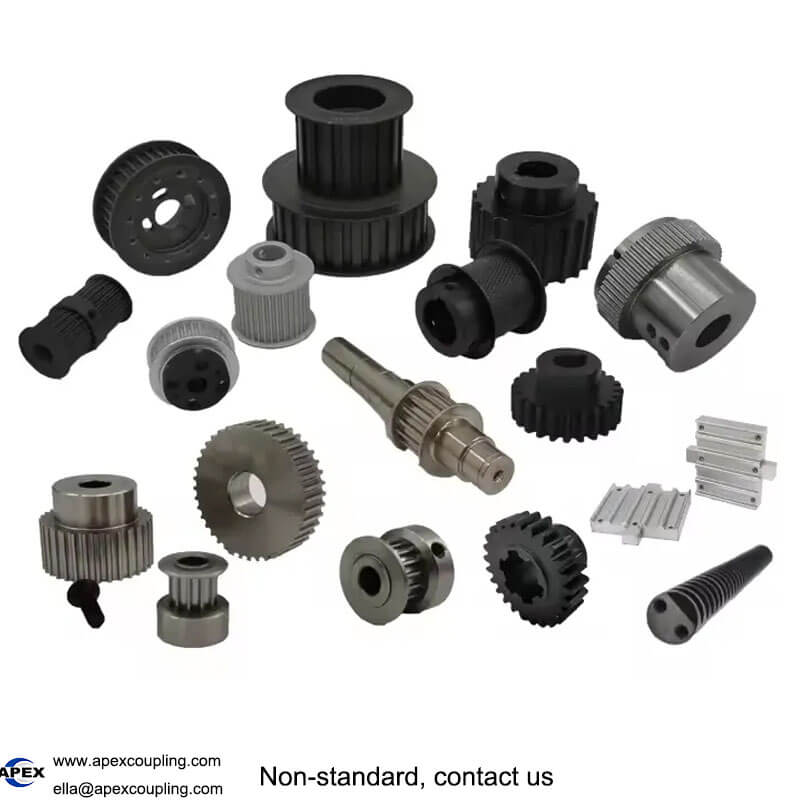

Apexcoupling offers complete customization for timing belt pulleys:

• Custom teeth quantity (10–150 teeth)

• Custom bore diameter, pitch diameter, outside diameter, and width

• Keyway, set screw, and flange options

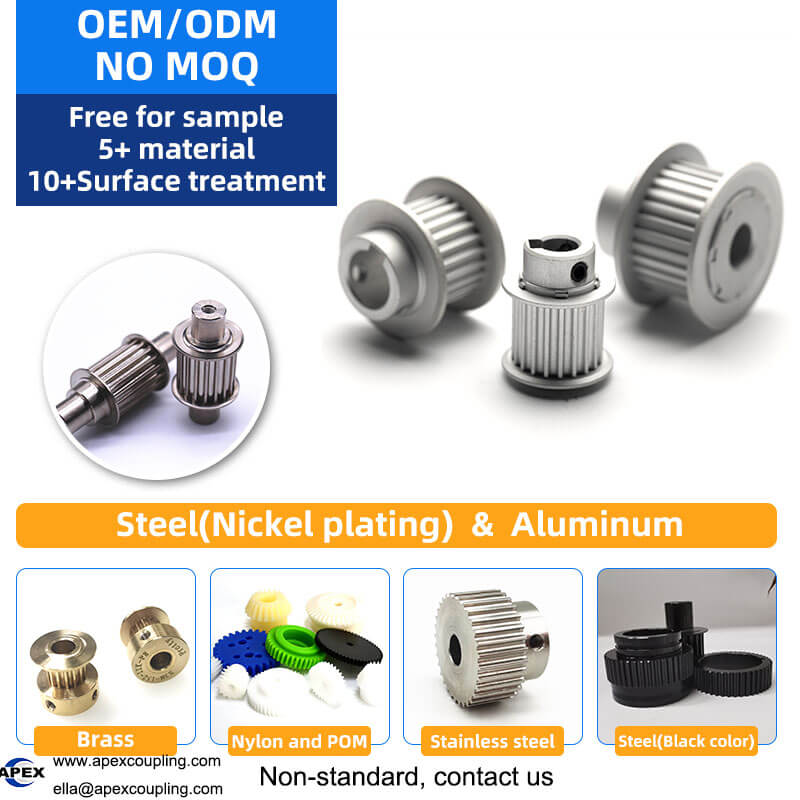

• Stainless steel, aluminium alloy, and other materials

• Surface treatments: anodic oxidation, black oxide, zinc plating, nickel plating, polishing

• Custom colors: silver, black, or any specified color

• Laser marking / custom logo

• Custom packaging

• OEM / ODM / OBM with your branding

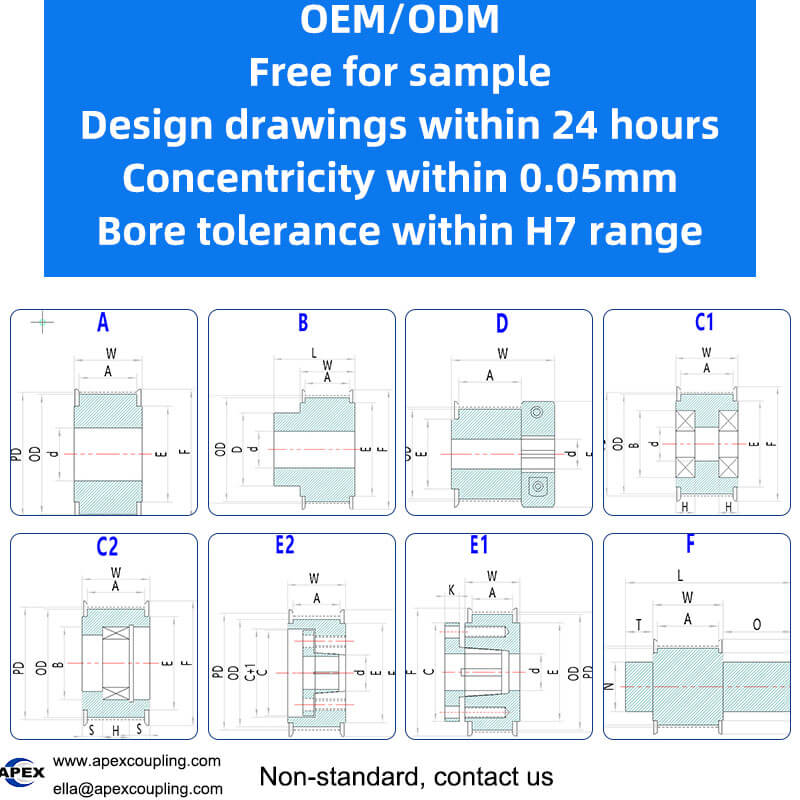

• Drawing-based production

• Design drawings within 24 hours

• Free sample available for standard sizes

• No MOQ

📧 Send your drawing or requirements to: ella@apexcoupling.com

Applications

The customized MXL L H XH XXH timing belt pulley is widely used in:

• Roller Shutter Systems – Smooth and reliable operation

• 3D Printers – Precision motion control

• CNC Machines – Accurate positioning and transmission

• Packaging Machinery – High-speed synchronous drives

• Automation Equipment – Factory automation and robotics

• Building Material Shops – Conveyors and processing equipment

• Manufacturing Plants – General industrial drive systems

• Machinery Repair Shops – Replacement and custom parts

• Retail – Equipment maintenance and repair

• Construction Works – Light construction machinery

• Energy & Mining – Durable timing pulley solutions

Why Choose Apexcoupling?

🏭 Factory Direct in Dongguan, China – Integrated manufacturing and trading, competitive pricing

🔩 Premium Materials – Stainless steel and aluminium alloy for durability and corrosion resistance

⚙️ CNC Precision Machining – Concentricity within 0.05mm and H7 bore tolerance

📐 Full Customization – MXL, XL, L, H, XH, XXH, T-series, GT-series, and custom profiles

🧾 OEM / ODM Support – Design drawings within 24 hours; free samples; no MOQ

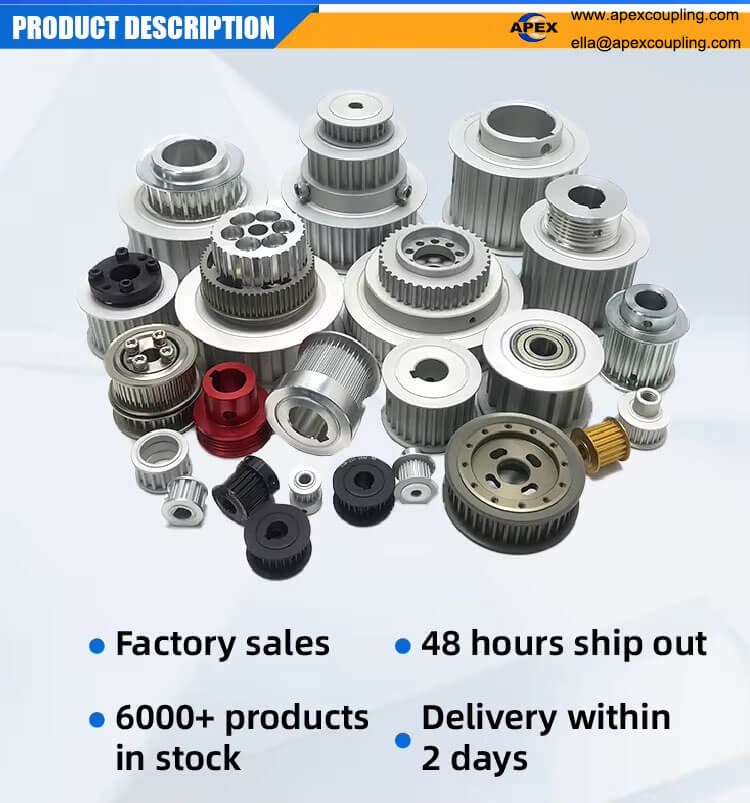

📦 Large Stock & Fast Delivery – 6000+ products in stock; 48-hour dispatch; delivery within 2 days

✅ 1-Year Warranty – Quality assurance and reliable after-sales support

💬 Expert Technical Support – We help you select the correct timing pulley for your application

Get a Quote Today

Ready to order or need more information? Contact us directly:

📧 Email: ella@apexcoupling.com

We reply within 24 hours with pricing, availability, and technical recommendations.

Product Tags: custom timing belt pulley, MXL timing pulley, L timing pulley, H timing pulley, XH XXH timing pulley, stainless steel timing pulley, aluminium timing pulley, roller shutter timing pulley, OEM timing pulley manufacturer, CNC machined timing pulley, open timing pulley, Dongguan China manufacturer
