Custom Stainless Steel Timing Belt Pulley – GT5 T5 T10 AT5 AT10 S8M S5M S3M | OEM Open Timing Pulley Manufacturer
Model Number
Check below, custom
industrial Iron Timing Belt Transmission Pulleys
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Customized MXL L H XH XXH Timing Belt Pulley – Stainless Steel & Aluminium
Factory Direct from Dongguan China | OEM / ODM | No MOQ | Free Sample Available | 0.05mm Concentricity | H7 Bore Tolerance | 6000+ Products in Stock | 48-Hour Dispatch
Product Overview
The Customized MXL L H XH XXH Timing Belt Pulley is a precision-machined power transmission component designed for synchronous belt drive systems. Manufactured by Apexcoupling in Dongguan, China, this timing pulley is available in stainless steel or aluminium and can be fully customized to match your specific application.
With CNC machining and CNC turning processes, the pulley achieves high concentricity within 0.05mm and bore tolerance within H7 range, ensuring accurate transmission, constant rotation rate, and no slip during operation. The open timing pulley design is suitable for a wide range of belt profiles, including MXL, XL, L, H, XH, XXH, T2.5, T5, T10, AT5, AT10, GT2, GT3, HTD 3M/5M/8M, and more.
Whether you need a standard pulley for roller shutters or a fully custom pulley for automation equipment, Apexcoupling offers OEM/ODM support, free samples, and no MOQ. Our factory has 6000+ products in stock, dispatches within 48 hours, and can deliver within 2 days for urgent orders.
📧 Get a Quote: ella@apexcoupling.com
Key Features
| Feature | Benefit |
|---|---|
| MXL, XL, L, H, XH, XXH & Custom Profiles | Wide compatibility with synchronous belt systems |
| Stainless Steel or Aluminium | Corrosion resistance, light weight, and high strength options |
| CNC Machining / CNC Turning | Precision manufacturing for accurate tooth profile and smooth operation |
| Concentricity within 0.05mm | Minimizes vibration and ensures stable power transmission |
| H7 Bore Tolerance | Accurate shaft fit and high interchangeability |
| No Slip, Accurate Transmission | Constant rotation rate during operation |
| Teeth Quantity 10–150 Teeth | Customizable to meet your exact drive ratio |
| Bore Diameter, Pitch Diameter, Width & Outside Diameter Customizable | Full flexibility for OEM designs |
| Anodic Oxidation Surface Treatment | Standard finish for aluminium; stainless steel options available |
| Open Timing Pulley Type | Suitable for a wide range of belt widths and applications |
| Free Sample / No MOQ | Ideal for prototyping and small-batch production |
| Fast Delivery | 6000+ products in stock; 48-hour dispatch; delivery within 2 days |
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Stainless Steel Timing Belt Pulley |
| Model Number | 030 (example); custom models available |
| Type | Timing Pulley |
| Timing Pulley Type | Open Timing Pulley |
| Material | Stainless Steel, Aluminium Alloy |
| Bore Diameter | Customizable |
| Pitch Diameter | Customizable |
| Number of Grooves | Customizable |
| Width | Customizable |
| Outside Diameter | Customizable |
| Teeth Quantity | 10 – 150 Teeth |
| Belt Width | 6 mm (customizable) |
| Bore Tolerance | H7 Range |
| Concentricity | Within 0.05 mm |
| Surface Treatment | Anodic Oxidation (standard); custom treatments available |
| Process | CNC Machining, CNC Turning |
| Color | Silver, Black, or Customized |
| Size | Customized Sizes |
| Packing | Poly Bag (custom packaging available) |
| Usage | Roller Shutter, Automation, CNC, Packaging, 3D Printers, General Industrial Drives |
| Place of Origin | Guangdong, China (Dongguan) |
| Brand Name | Apexcoupling |
| Customized Support | OEM, ODM, OBM |
| MOQ | No MOQ / 1 pc |
| Sample | Free Sample Available |
| Warranty | 1 Year |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works, Energy & Mining |
Available Belt Profiles & Standards
Apexcoupling manufactures timing belt pulleys for a wide range of synchronous belt profiles:
MXL – Miniature extra light
XL – Extra light
L – Light
H – Heavy
XH – Extra heavy
XXH – Double extra heavy
T2.5 / T5 / T10 / AT5 / AT10
GT2 / GT3
HTD 3M / 5M / 8M
Custom profiles – according to your drawing or sample
If you need a profile not listed here, please contact us. We can produce custom tooth profiles based on your requirements.
Product Details
01. Exquisite Workmanship
The overall use of high-quality raw materials, strict processing and production technology ensures a premium finish and reliable performance.
02. Stable Performance
High operating efficiency and durable for long-term use.
03. Stable Structure
High concentricity and precision pitch for smooth, no-slip transmission.
Customization Options
Apexcoupling offers complete customization for timing belt pulleys:
Custom teeth quantity (10–150 teeth)
Custom bore diameter, pitch diameter, outside diameter, and width
Keyway, set screw, and flange options
Stainless steel, aluminium alloy, and other materials
Surface treatments: anodic oxidation, black oxide, zinc plating, nickel plating, polishing
Custom colors: silver, black, or any specified color
Laser marking / custom logo
Custom packaging
OEM / ODM / OBM with your branding
Drawing-based production
Design drawings within 24 hours
Free sample available for standard sizes
No MOQ
📧 Send your drawing or requirements to: ella@apexcoupling.com
Applications
The customized MXL L H XH XXH timing belt pulley is widely used in:
Roller Shutter Systems – Smooth and reliable operation
3D Printers – Precision motion control
CNC Machines – Accurate positioning and transmission
Packaging Machinery – High-speed synchronous drives
Automation Equipment – Factory automation and robotics
Building Material Shops – Conveyors and processing equipment
Manufacturing Plants – General industrial drive systems
Machinery Repair Shops – Replacement and custom parts
Retail – Equipment maintenance and repair
Construction Works – Light construction machinery
Energy & Mining – Durable timing pulley solutions
Why Choose Apexcoupling?
🏭 Factory Direct in Dongguan, China – Integrated manufacturing and trading, competitive pricing
🔩 Premium Materials – Stainless steel and aluminium alloy for durability and corrosion resistance
⚙️ CNC Precision Machining – Concentricity within 0.05mm and H7 bore tolerance
📐 Full Customization – MXL, XL, L, H, XH, XXH, T-series, GT-series, and custom profiles
🧾 OEM / ODM Support – Design drawings within 24 hours; free samples; no MOQ
📦 Large Stock & Fast Delivery – 6000+ products in stock; 48-hour dispatch; delivery within 2 days
✅ 1-Year Warranty – Quality assurance and reliable after-sales support
💬 Expert Technical Support – We help you select the correct timing pulley for your application
Get a Quote Today
Ready to order or need more information? Contact us directly:
📧 Email: ella@apexcoupling.com
We reply within 24 hours with pricing, availability, and technical recommendations.
Product Tags: custom timing belt pulley, MXL timing pulley, L timing pulley, H timing pulley, XH XXH timing pulley, stainless steel timing pulley, aluminium timing pulley, roller shutter timing pulley, OEM timing pulley manufacturer, CNC machined timing pulley, open timing pulley, Dongguan China manufacturer
MXL timing pulley
L timing pulley
H timing pulley
XH XXH timing pulley
stainless steel timing pulley
aluminium timing pulley
roller shutter timing pulley
OEM timing pulley manufacturer
CNC machined timing pulley
open timing pulley

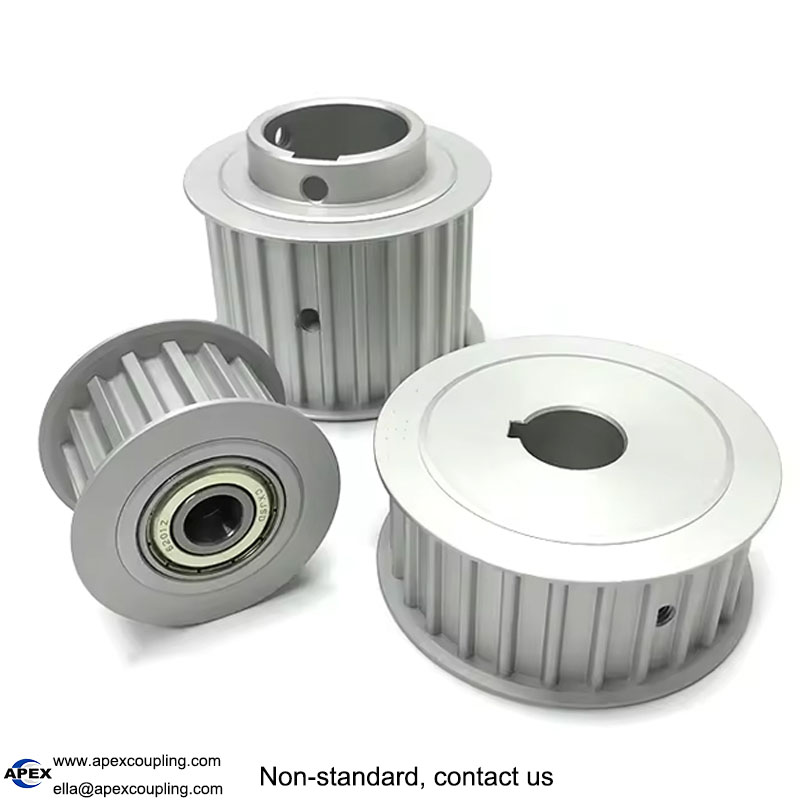

Product Show
