CSCA CSCW Pin Type Universal Joint | FA Standard

PRODUCTS

Model Number
Check below, custom

CSCA universal joint, CSCW pin type joint, FA automation coupling, high torque universal joint, UNCA UNCW rotating joint, 42CrMo cross joint.

FA Factory Automation Standard: Specifically designed to meet high-demand automation standards with a large inventory for rapid deployment.
Rapid Bi-Directional Response: Engineered for high transmission efficiency with instant response in both clockwise and counter-clockwise rotations.
42CrMo Alloy Steel Body: Provides exceptional strength and toughness. Heat-treated to resist fatigue and withstand multiple high-impact loads.
H7 Bore Precision: Internal tolerances are strictly controlled within H7 accuracy, ensuring high concentricity and a precision fit for low-noise operation.
High Torsional Stiffness: Optimized for general motor applications where maintaining shaft rigidity is critical.
Flexible Finishing & Customization:
- Standard Finish: High-quality blackening.
- Optional Plating: Nickel plating, Zinc plating, or Polishing.
- Material Upgrade: Available in SUS304 Stainless Steel for corrosive environments.

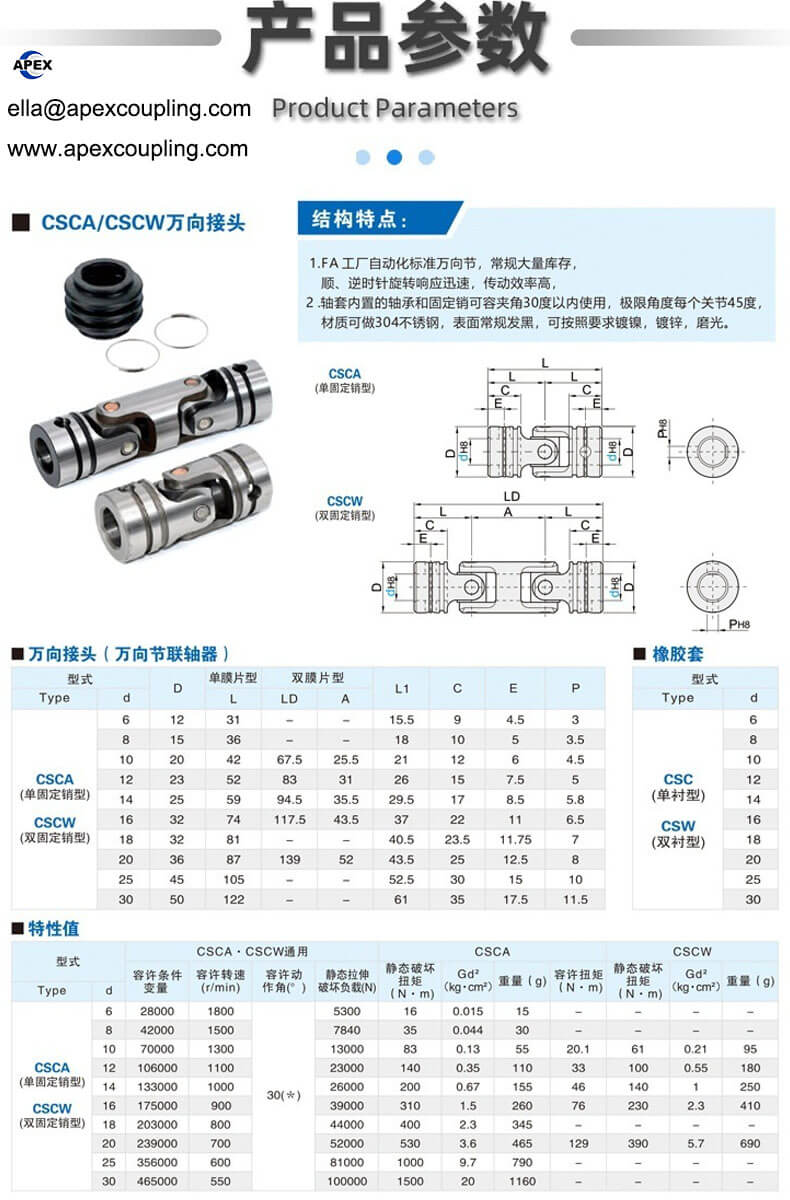

Model	Type	Outer Diameter (mm)	Length (mm)	Inner Diameter (mm)
UNCA6	Single	12	31	6
UNCA8	Single	16	36	8
UNCA10	Single	20	42	10
UNCA12	Single	23	52	12
UNCA14	Single	25	59	14
UNCA16	Single	32	74	16
UNCA18	Single	32	81	18
UNCA20	Single	36	87	20
UNCA25	Single	45	105	25
UNCA30	Single	50	122	30
UNCW10	Double	20	67.5	10
UNCW12	Double	23	83	12
UNCW14	Double	25	94.5	14
UNCW16	Double	32	117.5	16
UNCW20	Double	36	139	20
