Coupling Diaphragm: The Heart of High-Performance Flexible Couplings for Precision Motion Control

In the world of precision motion control, the coupling diaphragm serves as the critical element that determines the performance, reliability, and accuracy of flexible couplings. This precision-engineered component, typically manufactured from thin stainless steel, provides the perfect balance of torsional stiffness and flexibility, enabling zero-backlash torque transmission while accommodating misalignment. The DS/DL series coupling diaphragm from Apex Coupling represents the pinnacle of this technology, featuring industrial-grade 304 stainless steel diaphragms combined with 7075 aerospace aluminum alloy hubs to deliver exceptional performance in stepper motor, servo motor, and high-precision automation applications.

Superior Materials for Uncompromising Performance

What sets our coupling diaphragm apart is the meticulous attention to material quality and manufacturing precision:

• 7075 Aerospace Aluminum Alloy Hubs: The coupling hubs are precision-machined from 7075 aluminum alloy, a material specifically chosen for its exceptional strength-to-weight ratio and dimensional stability. Each hub undergoes anodized surface treatment, providing enhanced corrosion resistance and a professional appearance while maintaining precise dimensional accuracy.

• 304 Stainless Steel Diaphragm: The heart of this coupling diaphragm is its precision-formed flexible element, manufactured from 304 stainless steel. This industrial-grade four-hole flexible spring design offers:

  • Excellent corrosion resistance and oxidation protection

  • Superior fatigue strength for long-term reliability

  • Zero backlash operation for accurate motion control

  • Effective misalignment compensation without generating reaction forces

  • Non-magnetic properties for sensitive applications

• 12.9 Grade High-Strength Screws: All fastening hardware is manufactured to Grade 12.9 specifications, providing maximum clamping force and reliability under demanding operating conditions. The black oxide finish adds corrosion protection.

Precision Engineering for Optimal Performance

Every coupling diaphragm assembly from Apex Coupling is manufactured to exacting standards:

• H7 Precision Bores: All finished bores are machined to H7 tolerance and 100% inspected with go/no-go gauges, ensuring minimal clearance and precise shaft engagement. This high concentricity guarantees accurate alignment, reduces vibration, and maximizes power transmission efficiency.

• 5-Axis CNC Machining: All components are manufactured on 5-axis CNC machining centers in a single setup, ensuring perfect concentricity and consistent quality across every coupling diaphragm assembly.

• Safety-Enhanced Design Features:

  • Chamfered Socket Head Cap Screws: All screw heads feature radius chamfering to prevent finger injuries during installation.

  • R-Type Groove Radius: All slot junctions feature R-type radius treatment to avoid stress concentration and premature failure of the coupling diaphragm.

  • Full Edge Chamfering: All machined surfaces are fully chamfered for safe handling and a premium appearance.

Comprehensive Size Range

Our DS/DL series coupling diaphragm assemblies are available in a complete range of sizes:

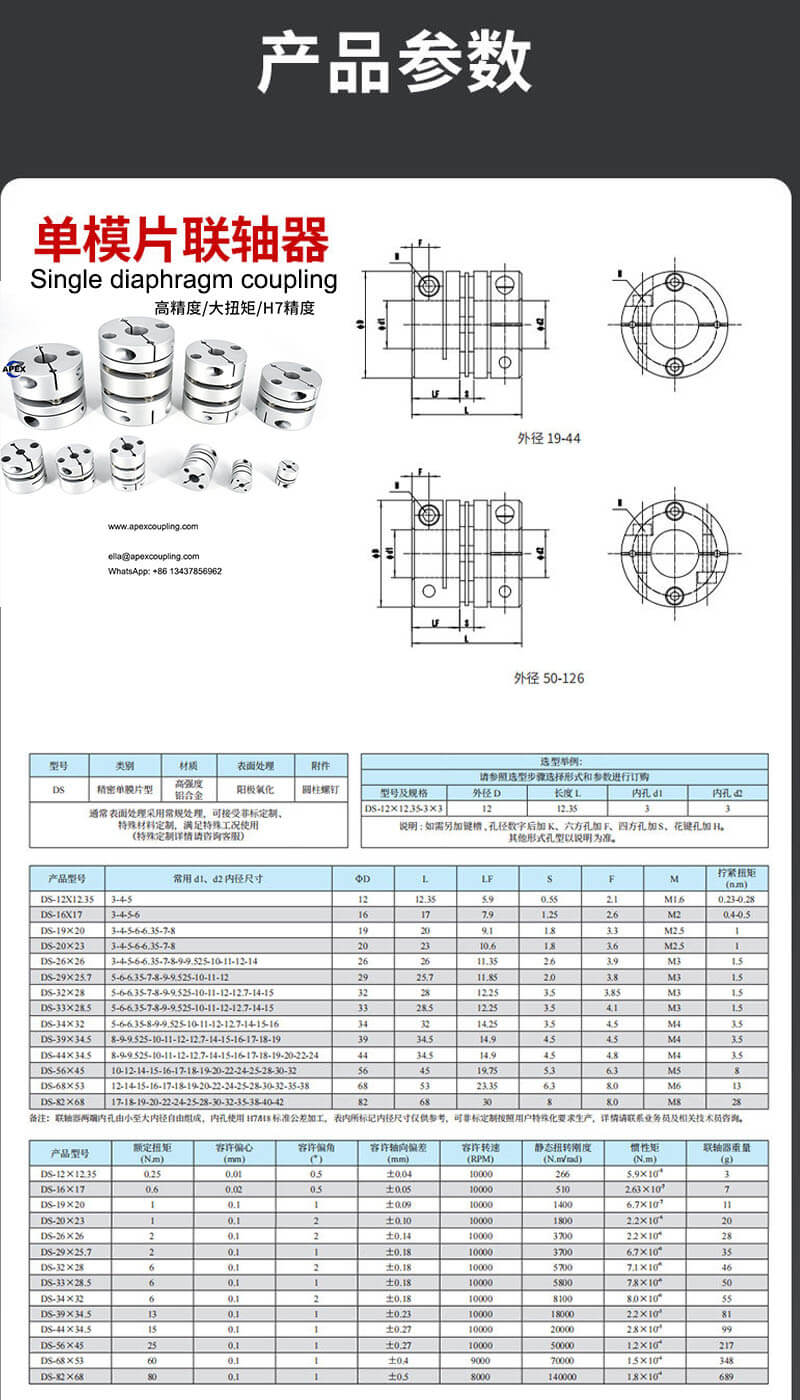

Single Diaphragm (DS Series):

• Outer Dia 19 × Length 20 – Bore 3-8mm

• Outer Dia 26 × Length 26 – Bore 4-11mm

• Outer Dia 29 × Length 26 – Bore 6-14mm

• Outer Dia 32 × Length 28 – Bore 5-16mm

• Outer Dia 34 × Length 32 – Bore 5-15mm

• Outer Dia 39 × Length 34.5 – Bore 8-19mm

• Outer Dia 44 × Length 34.5 – Bore 8-22mm

• Outer Dia 56 × Length 45 – Bore 10-28mm

• Outer Dia 68 × Length 53 – Bore 12-35mm

• Outer Dia 82 × Length 68 – Bore 14-45mm

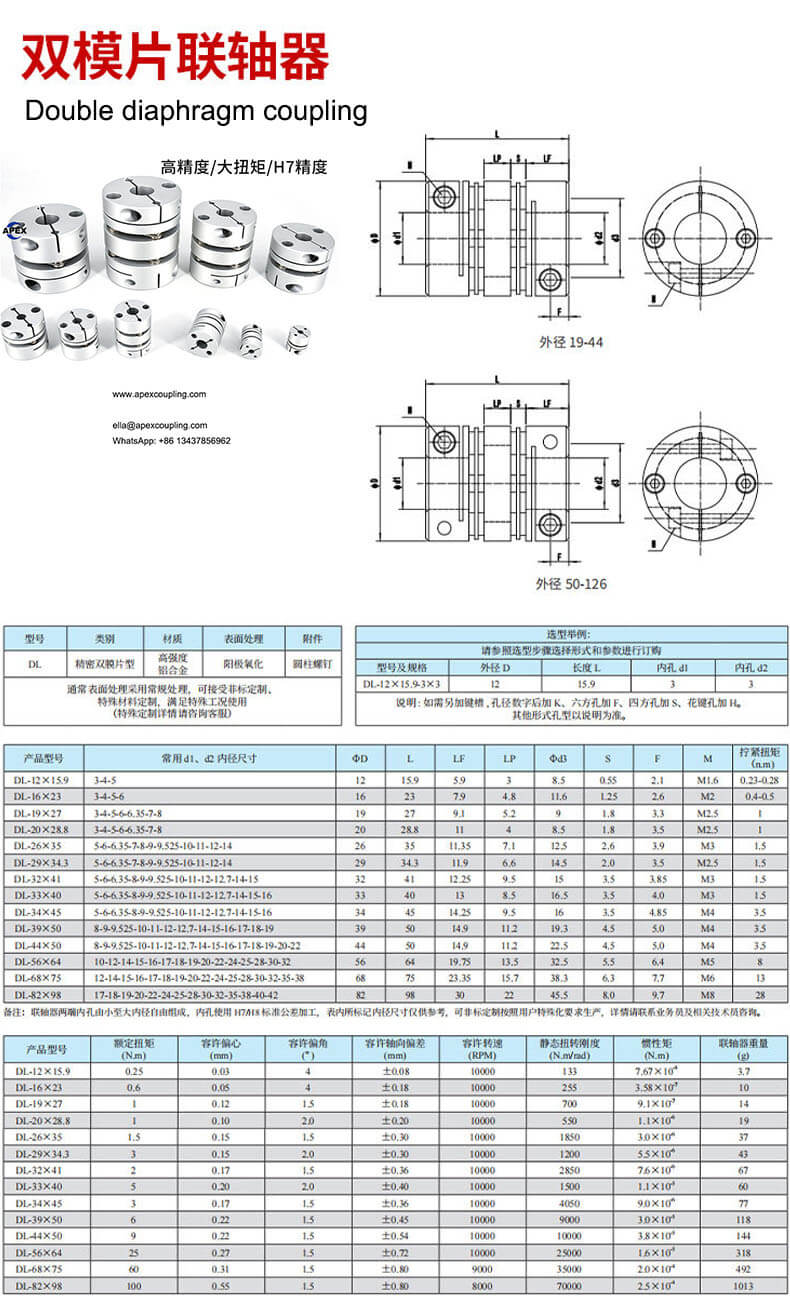

Double Diaphragm (DL Series):

• Outer Dia 19 × Length 27 – Bore 3-8mm

• Outer Dia 26 × Length 35 – Bore 4-11mm

• Outer Dia 29 × Length 35 – Bore 6-14mm

• Outer Dia 32 × Length 41 – Bore 5-16mm

• Outer Dia 34 × Length 45 – Bore 5-15mm

• Outer Dia 39 × Length 50 – Bore 8-19mm

• Outer Dia 44 × Length 50 – Bore 8-22mm

• Outer Dia 56 × Length 64 – Bore 10-28mm

• Outer Dia 68 × Length 75 – Bore 12-35mm

• Outer Dia 82 × Length 98 – Bore 14-45mm

Key Advantages of Coupling Diaphragm Design

The coupling diaphragm offers numerous benefits for precision motion control applications:

• Zero Backlash Operation: Essential for stepper and servo motor applications requiring accurate positioning and repeatability.

• High Torsional Stiffness: Provides excellent torque transmission without wind-up or compliance.

• No Reaction Force: The coupling diaphragm accommodates misalignment without generating damaging reaction forces on bearings.

• High-Speed Capability: Rated for operation up to 9000 RPM, suitable for high-speed spindle and servo applications.

• Misalignment Compensation: Accommodates angular, parallel, and axial misalignment while maintaining constant velocity.

• Smooth Ball Screw Installation: Ensures smooth, reaction-free operation for precision linear motion systems.

• Maintenance-Free: No wearing parts, providing long-term reliability without lubrication.

Technical Specifications

• Hub Material: 7075 Aerospace Aluminum Alloy with anodized finish

• Diaphragm Material: 304 Stainless Steel (industrial-grade four-hole flexible spring)

• Adjusting Ring Material: Alloy Steel

• Fastening: 12.9 grade socket head cap screws with black oxide finish

• Maximum Speed: 9000 RPM

• Allowable Torque: Up to 10,000 N·m

• Allowable Eccentricity: 0.1 mm

• Allowable Angular Misalignment: 1°

• Axial Deviation: Accommodates axial movement

• Bore Type: Through-hole design

• Locking Method: Screw clamping type

• Assembly Method: Integrated one-piece diaphragm design with bolt clamping

Ideal Applications

Our coupling diaphragm assemblies are specifically engineered for high-precision applications:

• Stepper Motor Drives: Zero backlash operation ensures accurate positioning for step motor applications.

• Servo Motor Systems: High torsional stiffness and rapid response for closed-loop control.

• CNC Machinery: Precision power transmission for machine tools and machining centers.

• Robotics: Reliable connections for robotic arms and automated systems.

• Semiconductor Equipment: Clean, maintenance-free operation for wafer handling and processing.

• Medical Devices: Precision motion control for diagnostic and therapeutic equipment.

• Printing Machinery: Smooth, accurate drives for registration-critical equipment.

• Packaging Equipment: High-speed, precise power transmission for labeling and filling machines.

Quality Assurance and Customization

Every coupling diaphragm assembly from Apex Coupling is manufactured under strict quality control:

• 100% Inspection: All H7 bores are inspected with go/no-go gauges.

• 5-Axis Machining: Single-setup machining ensures perfect concentricity.

• Material Traceability: Premium materials sourced from certified suppliers.

• Non-Standard Customization: Custom sizes, bore configurations, and special requirements welcomed.

• Quality Certification: All products pass rigorous quality inspection before shipment.

Why Choose Apex Coupling for Your Coupling Diaphragm Needs?

• Premium Materials: 7075 aluminum alloy and 304 stainless steel ensure long-term reliability.

• Precision Manufacturing: 5-axis CNC machining with full inspection.

• Safety-First Design: Full chamfering and radius treatment prevent injuries and stress concentration.

• Factory Direct: Competitive pricing with extensive customization options.

• Technical Support: Engineering assistance for selection and application.

• Quality Replacement: Excellent alternative to multiple imported brands.

Ready to Order Your Coupling Diaphragm Assembly?

Contact our engineering team today with your application requirements, shaft sizes, and operating parameters. Request detailed specifications, dimensional drawings, and a competitive quotation for our premium coupling diaphragm assemblies. Experience the Apex difference in quality, precision, and service.
