Cardan Universal Joint: The Versatile Power Transmission Solution for Demanding Applications

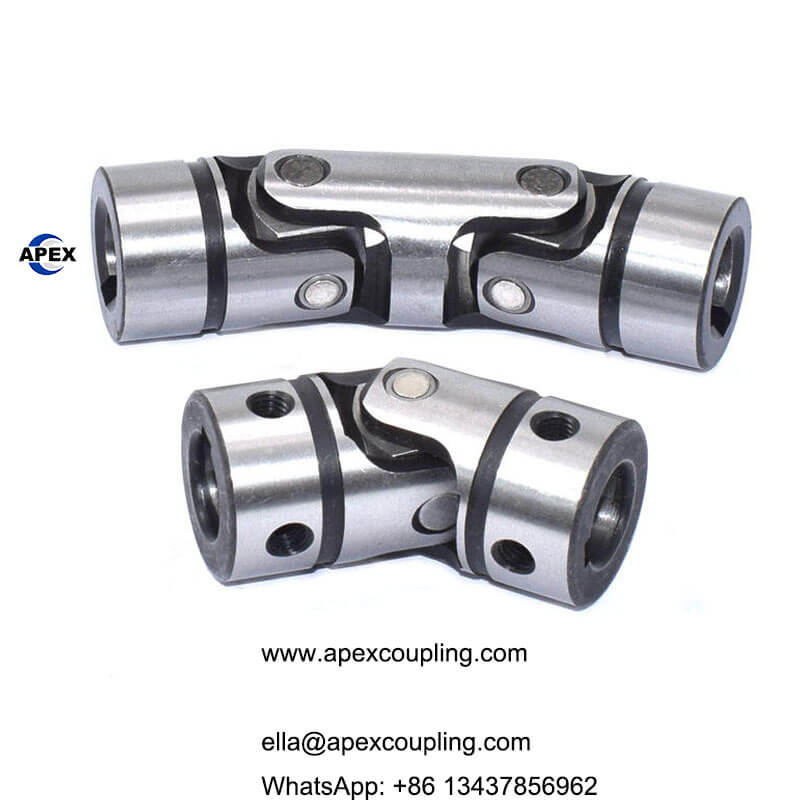

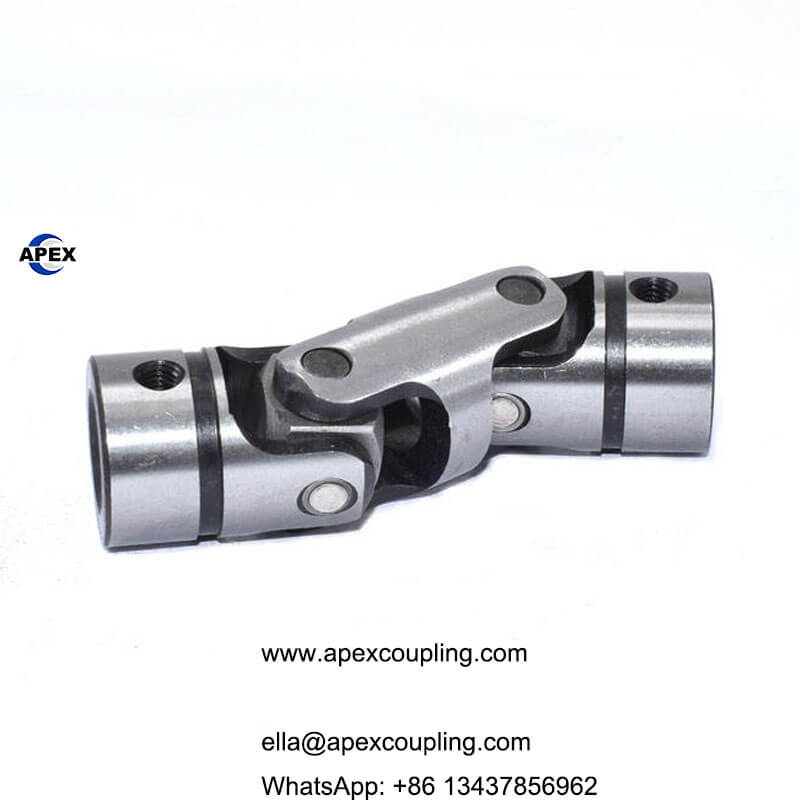

In the world of mechanical power transmission, the cardan universal joint stands as one of the most versatile and reliable components for connecting shafts at varying angles. Also known as gimbal couplings or universal joints, these precision-engineered devices enable efficient torque transmission even when input and output shafts are not collinear. The Keyway Thread Type Double Universal Joint from Apex Coupling represents the pinnacle of this technology, manufactured from high-strength alloy steel to deliver exceptional performance in applications ranging from boat propulsion to agricultural machinery. When your system demands a cardan universal joint that combines durability with precision, our engineered components provide the answer.

Advanced Material Engineering for Extended Service Life

What sets our cardan universal joint apart is the meticulous attention to material selection and heat treatment. The joint is constructed from premium alloy steel, with critical components undergoing specialized 20CrMo quenching processes. This advanced heat treatment achieves enhanced surface hardness while maintaining core toughness, resulting in:

• Superior wear resistance for extended service life under continuous operation

• High fatigue strength to withstand repeated stress cycles

• Excellent impact resistance for applications with shock loads

• Maintained dimensional stability throughout the component’s lifespan

The combination of high-quality base materials and precision heat treatment ensures that our cardan universal joint maintains its performance characteristics even in demanding environments such as marine applications or heavy-duty agricultural use.

Precision Engineering for Optimal Performance

Every cardan universal joint from Apex Coupling is manufactured to exacting standards:

• H7 Precision Fit: The inner holes are machined to close tolerances, ensuring minimal clearance and precise shaft engagement. This precision reduces backlash and vibration while maximizing power transmission efficiency.

• Keyway Fixing Method: The secure keyway shaft fixing method provides positive torque transmission without slippage, even under reversing loads or shock conditions. This reliable connection ensures that power is transmitted efficiently from the drive source to the driven equipment.

• Grinding Surface Treatment: Each joint undergoes precision grinding to achieve superior surface finish and dimensional accuracy, reducing friction and wear during operation.

Technical Specifications and Versatility

Our cardan universal joint offers impressive performance capabilities across a comprehensive size range:

• Operating Angle: Capable of up to 90° total operating angle, providing exceptional flexibility for complex drive layouts where shafts must operate at significant angles

• Torque Capacity: Allowable torque range from 20.1 N.m to 129 N.m, suitable for light to medium-duty applications across multiple industries

• Size Range: Inner hole diameters from 10mm to 20mm, with outer diameters from 20mm to 36mm to accommodate various shaft sizes and space constraints

• Speed Capability: Rated for operation from 0 to 4000 RPM (speeds above 1000 RPM require customization to ensure optimal performance and balance)

• Double Structure: The double universal joint configuration provides constant velocity characteristics and accommodates greater overall misalignment than single joint designs

Key Advantages of Cardan Universal Joint Design

The cardan universal joint offers several distinct advantages for power transmission applications:

• High Angular Flexibility: Accommodates significant operating angles, simplifying system layout and compensating for misalignment

• Compact Design: Provides efficient torque transmission in a relatively small package

• Bi-Directional Operation: Performs equally well in both clockwise and counterclockwise rotation

• Low Maintenance: Simple design requires minimal maintenance when properly selected and installed

• Versatile Mounting: Available with various bore configurations to match specific shaft requirements

Ideal Applications Across Industries

The versatility of these cardan universal joints makes them suitable for numerous applications:

• Marine Applications: Boat propulsion systems, steering mechanisms, and auxiliary drives requiring corrosion-resistant, reliable power transmission

• Agricultural Machinery: Tractors, harvesters, and implements where shafts must operate at varying angles during operation

• Industrial Equipment: Conveyors, packaging machinery, and material handling systems

• Construction Works: Light to medium-duty construction equipment requiring angular flexibility

• Garment and Textile Machinery: Precision drives for looms, knitting machines, and finishing equipment

• Building Material Shops: Equipment for processing and handling construction materials

Quality Assurance and Customization

Every cardan universal joint from Apex Coupling is manufactured under strict quality control and backed by our commitment to excellence:

• Material Quality: Premium alloy steel with advanced heat treatment processes

• Customization: Full OEM, ODM, and OBM support for specialized requirements including custom bore sizes, lengths, and configurations

• Warranty: Backed by our 1-year warranty against manufacturing defects

• Support: Engineering assistance available for application-specific requirements

Choose Apex Coupling for Your Power Transmission Needs

With our extensive experience in manufacturing universal joints and flexible couplings, Apex Coupling delivers cardan universal joints that meet the highest standards of quality and reliability. Our components are designed to provide years of trouble-free service in the most demanding applications.

Ready to Specify Cardan Universal Joints for Your Application? Contact our engineering team today with your torque requirements, operating angles, and dimensional constraints. Request detailed specifications, dimensional drawings, and a competitive quotation for our premium cardan universal joints.
