AL-S Z2 Keyless Locking Device – Tapered Shaft Locking Assembly for High Torque Transmission
Model Number
Check below, custom
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
The AL-S Z2 Keyless Locking Device (also known as TLK200 series) is a precision shaft-hub connection solution that eliminates the need for keyways. Using a double-tapered design, it provides high radial clamping force and transmits significant torque without backlash. This locking assembly is ideal for applications requiring reliable, maintenance-free shaft connections.
Keyless Connection – Eliminates keyway stress concentration and backlash
Double-Tapered Design – Generates higher radial clamping force compared to single-taper designs
High-Strength 45# Steel – Forged and heat-treated for durability and long service life
Easy Installation & Removal – No hammering required; simply tighten bolts; pre-drilled removal holes simplify disassembly
Multiple Sizes Available – Wide range from 18 mm to 320 mm bore diameters

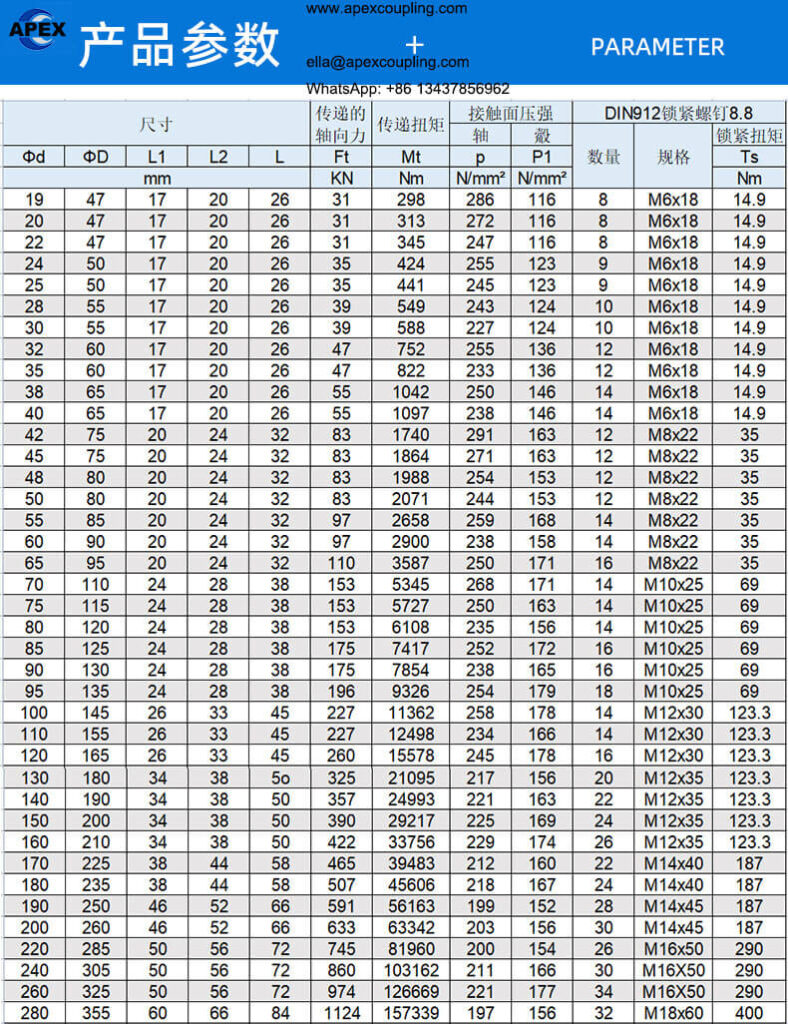

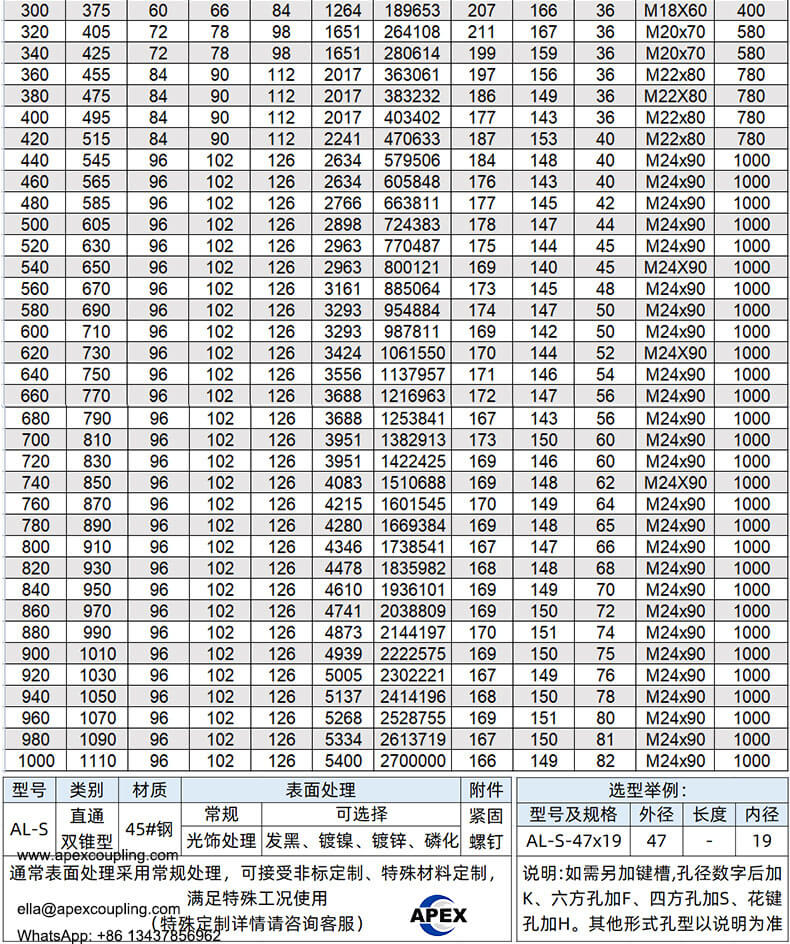

| Parameter | Value |
|---|---|
| Model | AL-S Z2 (TLK200 series) |
| Material | 45# High-Strength Steel (forged, quenched and tempered) |
| Design | Double-tapered, straight-through type |
| Bore Range | 18 mm – 320 mm |
| Outer Diameter Range | 47 mm – 405 mm |
| Width | 20 mm – 72 mm (varies by size) |
| Screw Grade | High-strength |
| Removal Feature | Threaded extraction holes (2–4 positions) |
| Customization | Custom bores, diameters, and surface treatments available |
| Model | Bore (mm) | Outer Dia. (mm) | Length (mm) |
|---|---|---|---|
| Z2-18×47 | 18 | 47 | 20 |
| Z2-20×47 | 20 | 47 | 20 |
| Z2-25×50 | 25 | 50 | 20 |
| Z2-30×55 | 30 | 55 | 20 |
| Z2-40×65 | 40 | 65 | 20 |
| Z2-50×80 | 50 | 80 | 24 |
| Z2-60×90 | 60 | 90 | 24 |
| Z2-80×120 | 80 | 120 | 28 |
| Z2-100×145 | 100 | 145 | 33 |
| Z2-150×200 | 150 | 200 | 38 |
| Z2-200×260 | 200 | 260 | 52 |
| Z2-250×315 | 250 | 315 | 56 |
| Z2-300×375 | 300 | 375 | 66 |

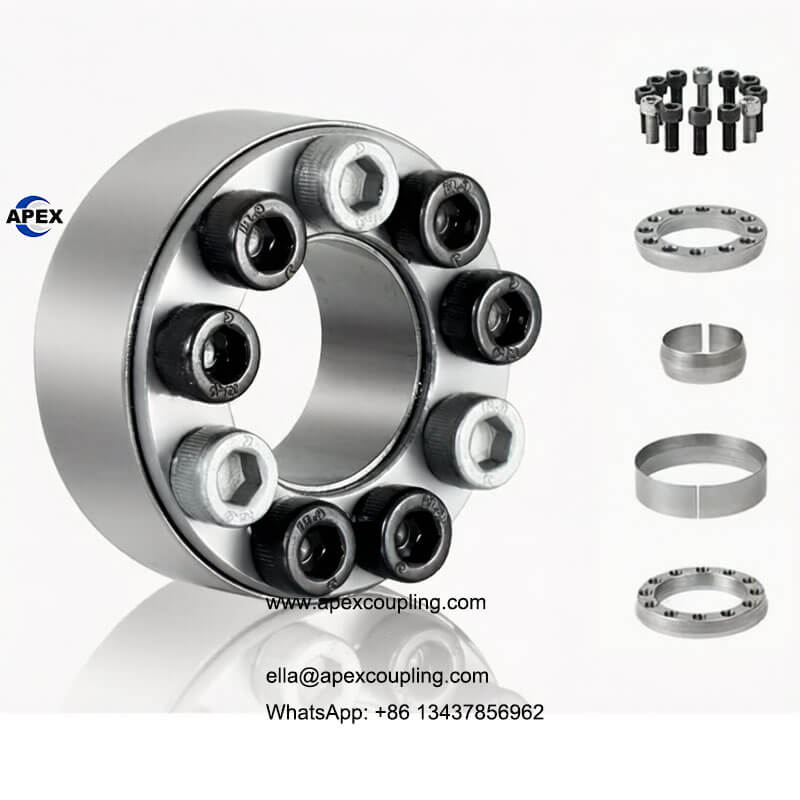

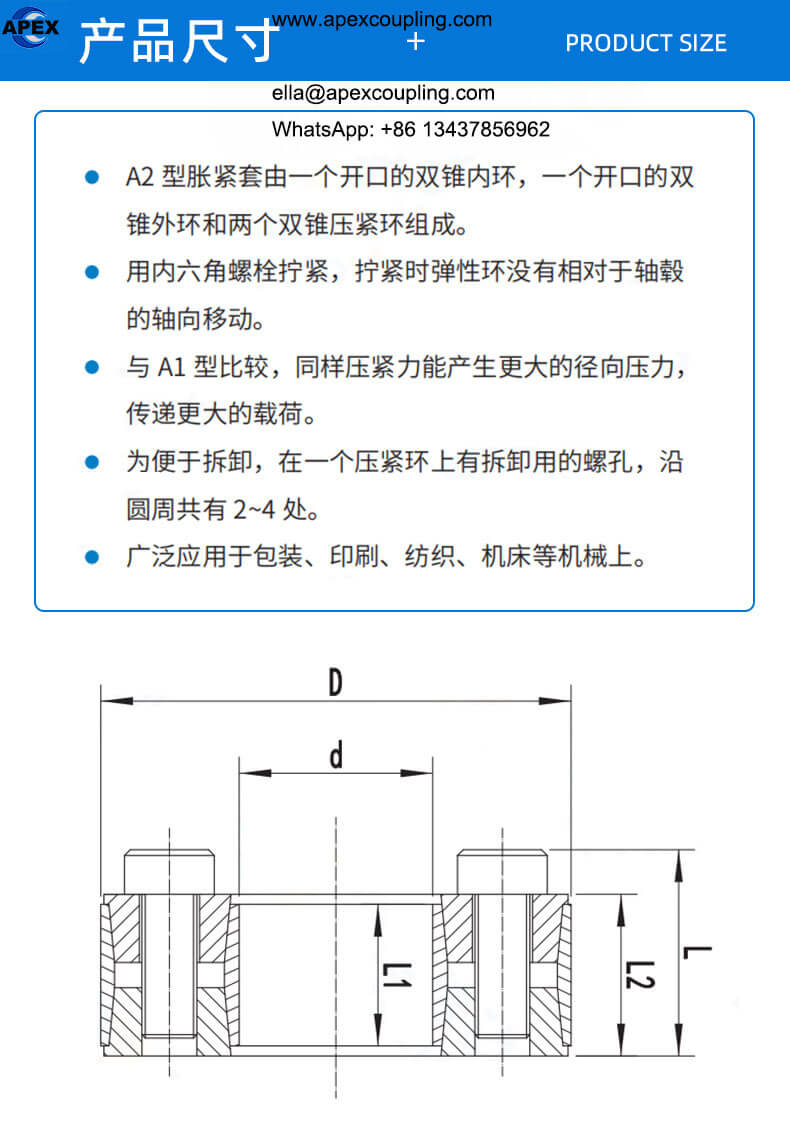

The AL-S Z2 locking assembly consists of:
One split double-taper inner ring
One split double-taper outer ring
Two double-taper clamping rings
When the socket head cap screws are tightened, the tapers generate radial clamping force without axial movement of the assembly. Compared to Type A1 (single-taper), this design achieves higher radial pressure and transmits greater torque with the same tightening force.
Packaging machinery
Printing presses
Textile equipment
Machine tools
CNC machinery
Food processing equipment
Semiconductor manufacturing
Woodworking machinery
Renewable energy systems (solar tracking, wind)
As a factory-direct manufacturer, we support custom bore sizes, outer diameters, and surface treatments. We also offer multiple units in series for higher torque requirements. Contact us for engineering support.
