Compact Power: AL-S45C AL-F Short Type High-Torque Locking Assemblies

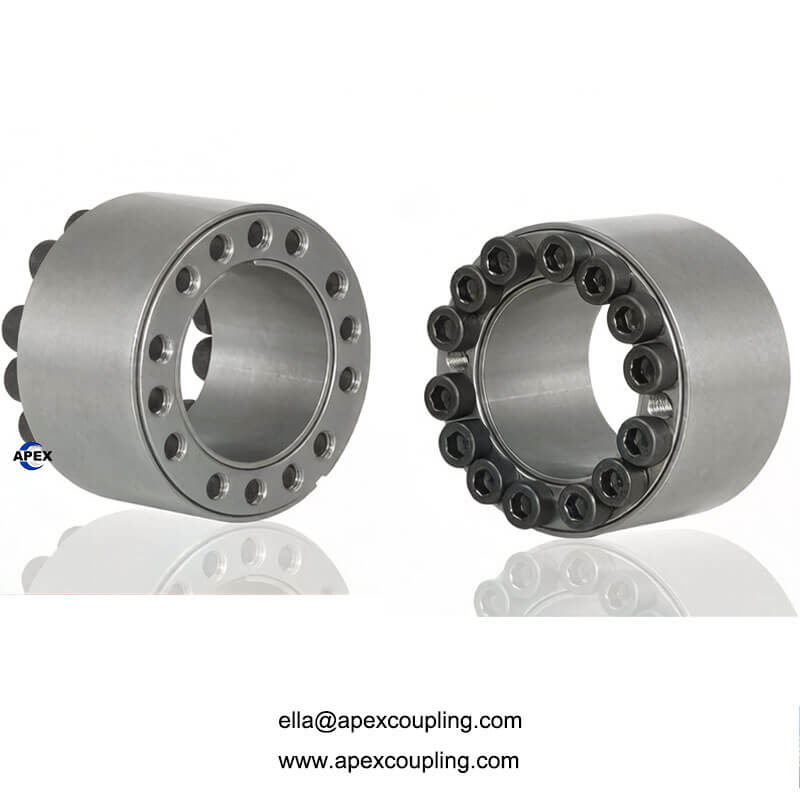

The AL-F Series is a premium, compact-design locking assembly engineered for high-torque transmission in space-restricted environments. As a direct equivalent to the MISUMI MLAT series, the AL-F utilizes a double-taper mechanism to create a powerful, friction-based keyless connection. Crafted from high-grade S45C (45# Steel), it ensures a long service life and exceptional reliability for precision machinery.

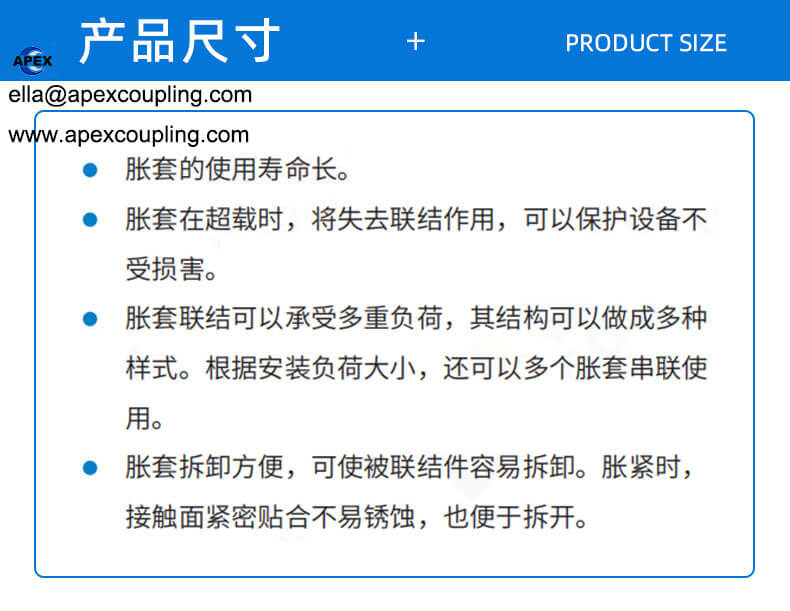

Core Product Advantages

• High-Torque, Short-Profile Design: Specifically optimized to provide maximum clamping force within a minimal axial footprint, making it perfect for compact drive systems.

• MISUMI MLAT Equivalent: Fully interchangeable with MLAT series specifications, offering factory-direct pricing without compromising on quality or precision.

• S45C Premium Steel Construction: Manufactured from high-strength 45# steel for superior durability and resistance to deformation under heavy loads.

• Mechanical Overload Protection: During an extreme overload event, the locking assembly acts as a safety device by slipping, protecting your motor and expensive drivetrain components from permanent damage.

• Anti-Corrosive Tight Fit: The precision contact surfaces ensure a tight seal that prevents rust and corrosion between the shaft and hub, facilitating easy disassembly even after years of use.

• Multi-Load Support & Scalability: Designed to handle multiple load types simultaneously. For extreme requirements, multiple AL-F units can be used in series to increase torque capacity.

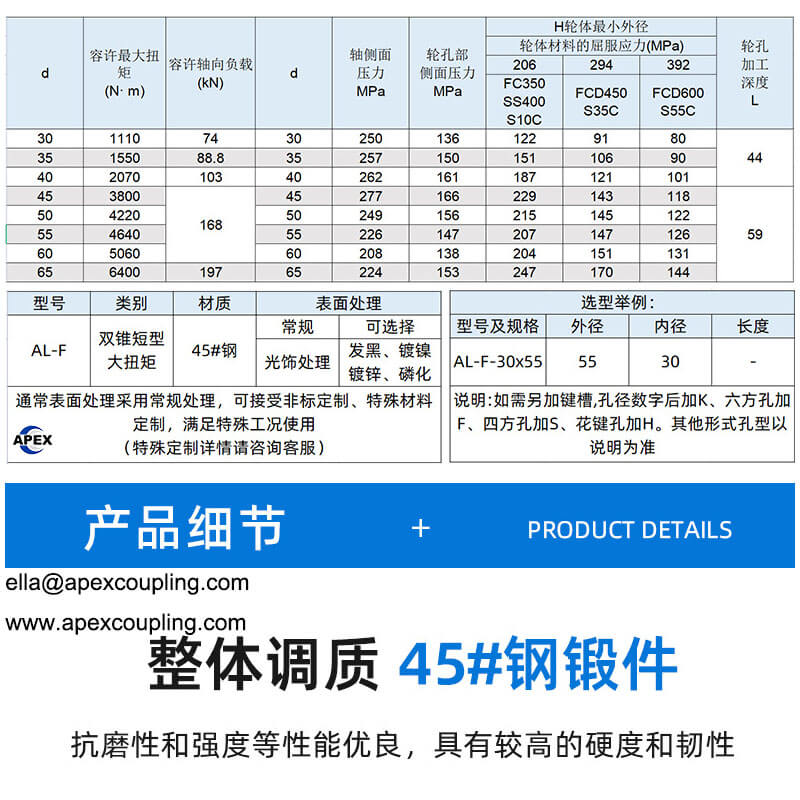

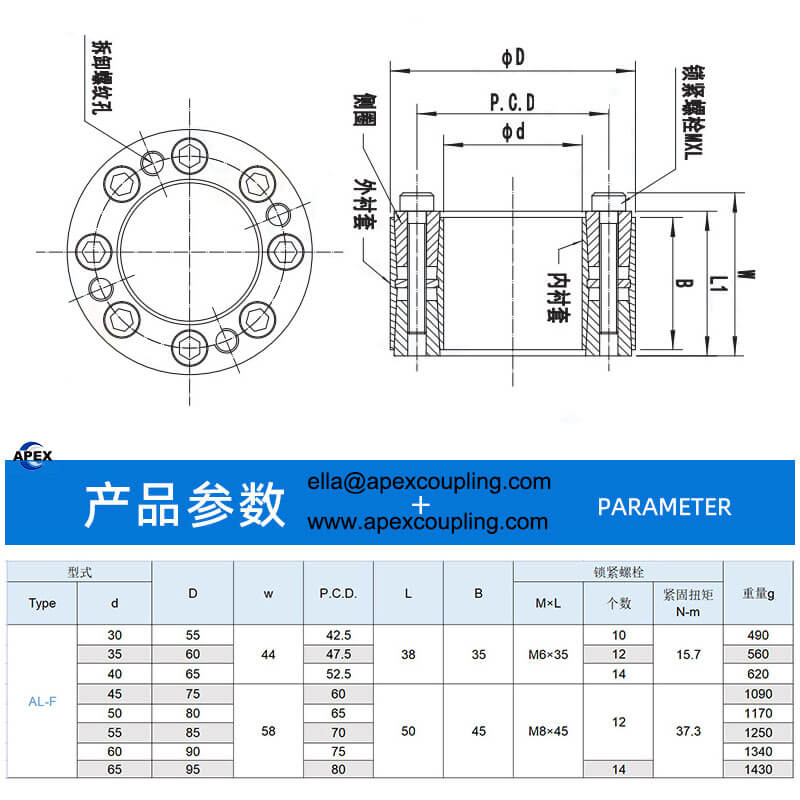

Technical Specifications Table
