3/8 Inch Universal Single Small Universal Joint | Precision G & GD Type Flexible Accessory for Machine Tools

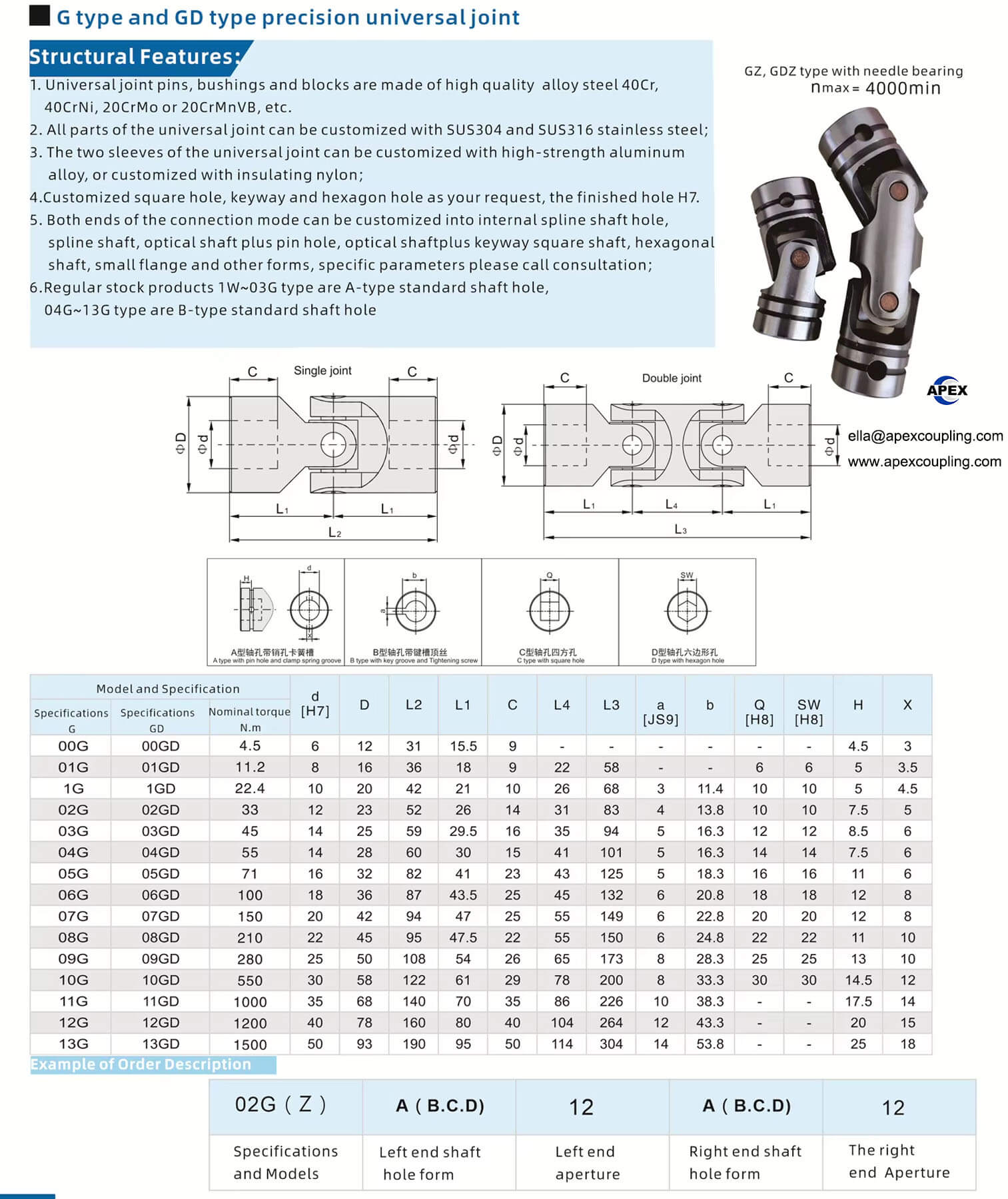

Model Number
D-Diameter, L-Length, d-OneBore, e-Another Bore
Single Structure D20-L42-d10-e10
Single D23-L52-d12-e12
Single D25-L59-d14-e14
Single D32-L74-d16-e16
Single D36-L87-d20-e20
Double D20-L67.5-d10-e10
Double D23-L83-d12-e12
Double D25-L94.5-d14-e14
Double D32-L117.5-d16-e16
Double D36-L139-d20-e20
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
3/8 universal joint, small universal joint, G type precision joint, machine tool accessory, hand socket universal joint, 42Crmo universal joint.
Â
Key FeaturesÂ
High-Grade Materials: Pins, bushings, and blocks are crafted from premium alloy steel (40Cr, 40CrNi, 20CrMo, or 42Crmo) for maximum durability.
Extreme Customization: We support full customization in SUS304 or SUS316 stainless steel, high-strength aluminum alloy, or insulating nylon.
Precision Bore Standards: Finished holes are machined to H7 tolerance. Supports Square holes, Keyways, and Hexagon holes per your drawings.
Versatile Connection Modes: Available with internal spline shaft holes, optical shafts with pin holes, flanges, and hexagonal shafts.
High Performance Specs: Supports a maximum speed of 4000 RPM and a torque range of 4.5 to 1500 N.m.
Wide Operating Range: Capable of handling angles from 0 to 90 degrees for flexible power transmission.

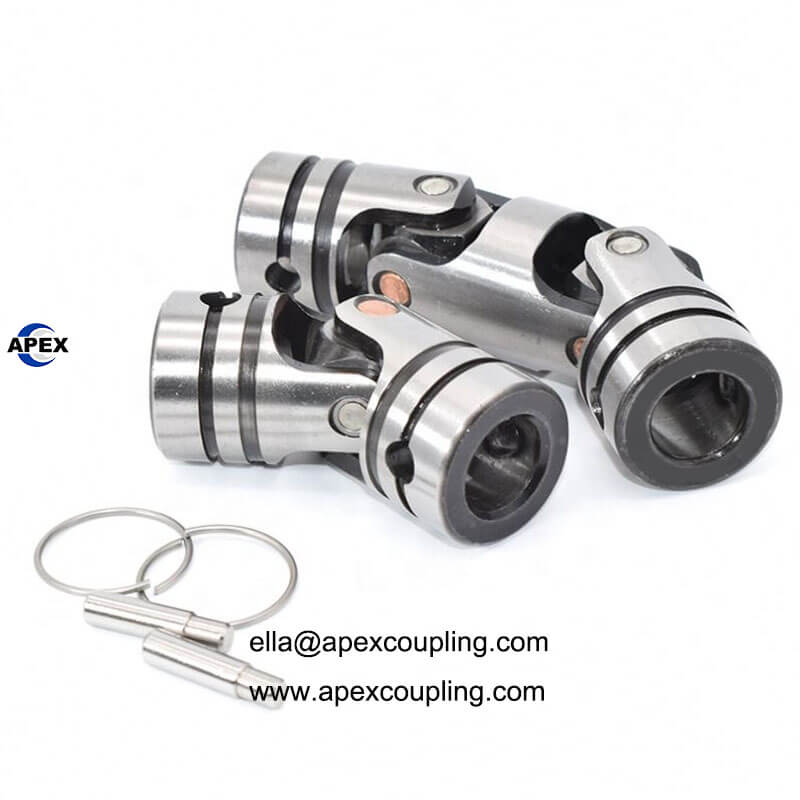

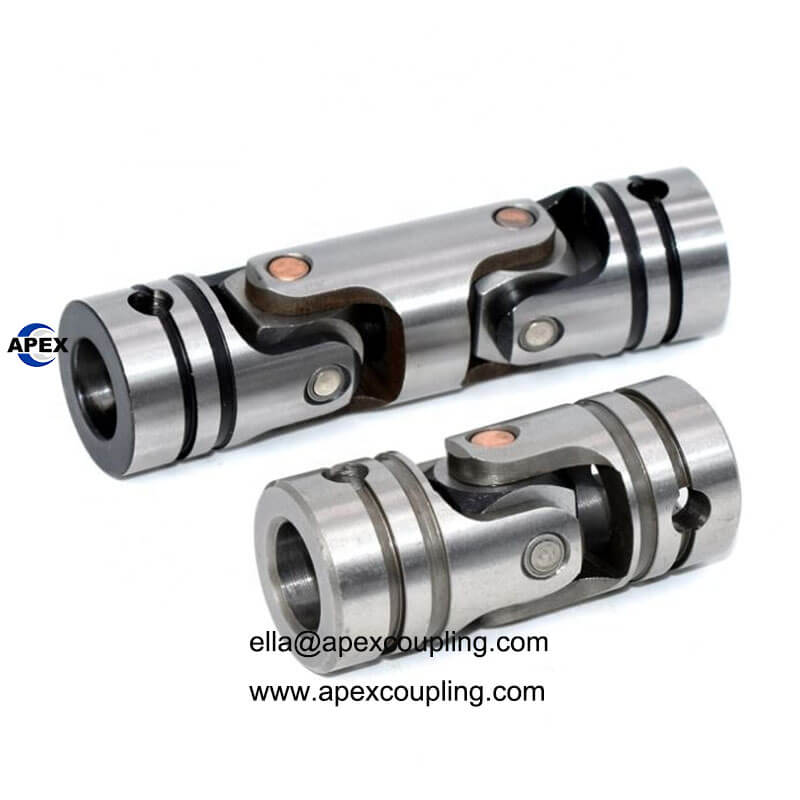

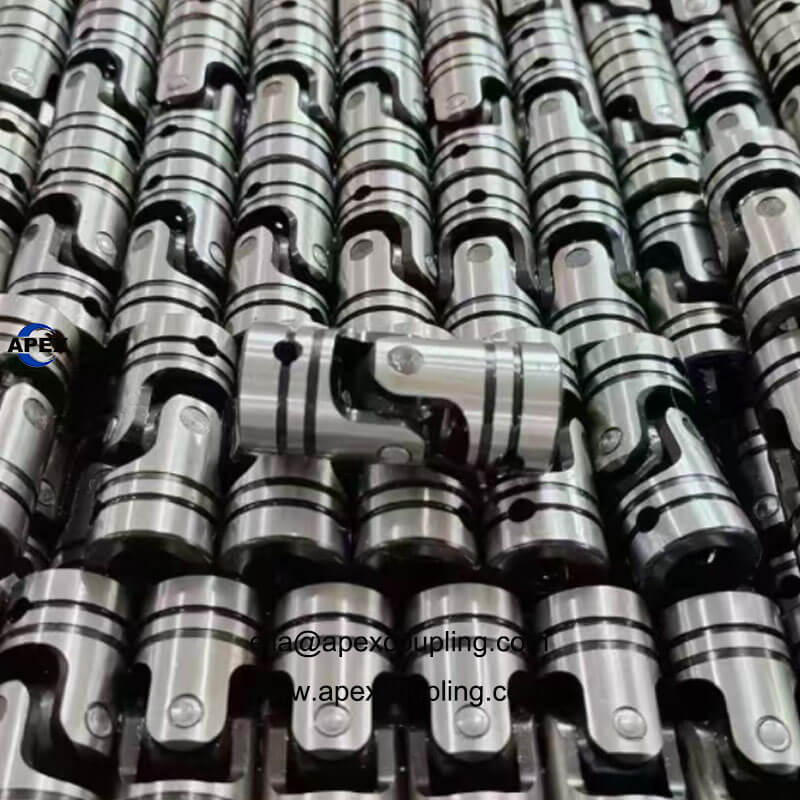

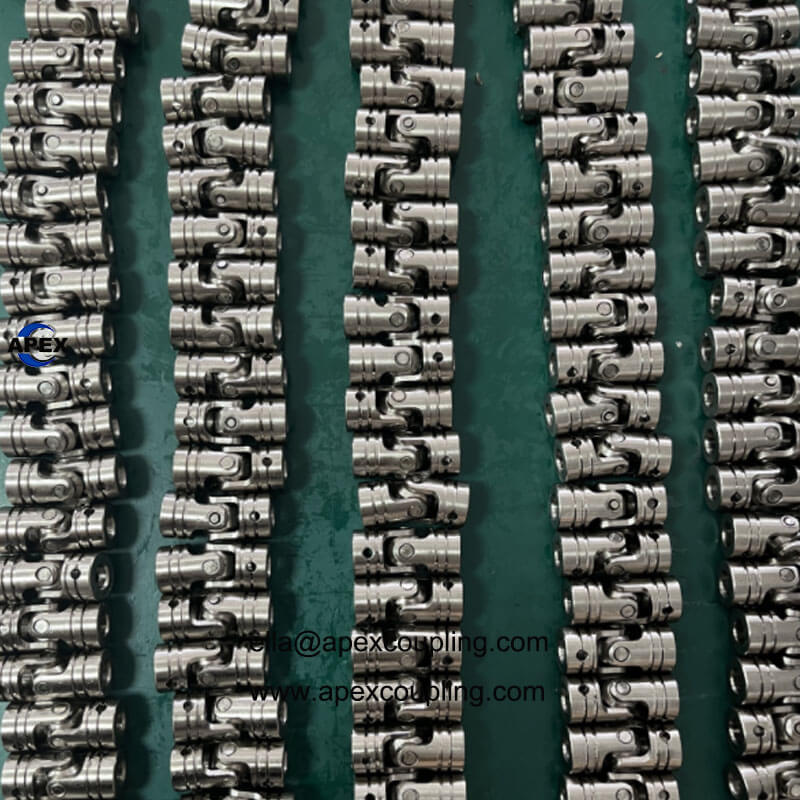

Product Show
3/8 universal joint
