When designing or upgrading power transmission systems in industrial machinery, selecting the appropriate universal joint couplings is critical. Industrial shaft systems often face angular misalignment, shaft offset, and changing center-to-center distances during operation.

In this buyer’s guide, Apex Coupling will explain the key technical factors to consider when purchasing industrial universal joint couplings, focusing on the popular WSP series telescopic cross shaft couplings.

1. Understanding the Role of Universal Joint Couplings

Universal joint couplings (also known as U-joints or cross shaft couplings) are mechanical devices used to transmit rotary motion and torque between two shafts that are intersected at an angle.

Unlike rigid couplings, universal joints handle dynamic angular changes up to 45 degrees, making them essential for heavy-duty drive systems in manufacturing, agriculture, mining, and automated production machinery.

2. Key Selection Criteria for Telescopic Universal Joints

When evaluating universal joint couplings for B2B procurement or OEM machine manufacturing, keep the following technical parameters in mind:

A. Operating Speed (RPM) and Torque Requirements

For high-speed rotation (up to 4,000 RPM), needle bearing universal joints offer lower friction and heat generation. For heavy loads and shock conditions at lower speeds, plain friction bearings (bushing design) with a 50 HRC surface hardness provide long operating durability.

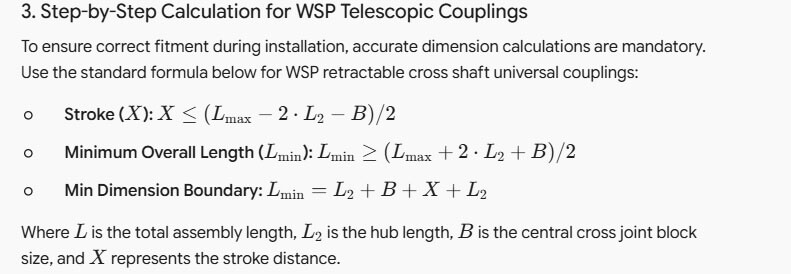

B. Angular Misalignment & Axial Stroke (X)

If your machinery requires sliding or stroke movement along the axis, opt for a telescopic universal joint coupling like the WSP series. The retractable splined or hexagonal middle shaft allows the joint to change length smoothly while maintaining continuous torque transmission.

C. Bore Specifications and Keyway Tolerances

Ensure the finished hole tolerance is precisely controlled (typically H7). Common bore customized configurations include:

• Standard round bore with keyway

• Square hole

• Hexagonal bore with spring retention

• Splined travel shaft
