How to Check Universal Joints: A Step-by-Step Guide for Safety and Performance

A universal joint is a critical but often overlooked component in many machines and vehicles. Found within a universal joint drive shaft, it’s the hard-working pivot that transmits power while accommodating angles. When a U-joint fails, it can lead to costly downtime or even dangerous equipment failure.

Knowing how to check your universal joints for wear is an essential maintenance skill. This guide will walk you through the simple steps to inspect them, ensuring your machinery—from simple drives to complex double cardan shaft systems—remains safe and efficient.

Why Universal Joint Inspection is Crucial

A worn universal joint can’t efficiently transmit power, leading to vibrations, noise, and poor performance. In severe cases, a completely failed U-joint can cause the drive shaft to separate, potentially causing significant damage and safety hazards. Regular checks are your first line of defense.

Signs of a Worn Universal Joint

Before you even get your hands dirty, be aware of these common symptoms:

• Vibrations: A clunking or shuddering vibration, especially during acceleration, is a classic sign.

• Audible Noises: Listen for a repetitive “clicking” noise at low speeds or a “clunk” when shifting from drive to reverse.

• Squeaking: A high-pitched squeak on startup often indicates dry, worn-out needle bearings.

Step-by-Step: How to Check Your Universal Joints

Safety First: Engage the parking brake and chock the wheels. If inspecting a vehicle, ensure the transmission is in “Park” or first gear.

Step 1: The Visual Inspection

Look closely at the universal joints on your universal joint drive shaft. Check for any signs of:

• Rust Dust (The “Red Flag”): A reddish-brown powder around the bearing caps is a telltale sign that the needle bearings are wearing down.

• Grease Leaks: If the joints have grease fittings, look for cracks in the bearing caps or missing seals that have allowed grease to escape and contaminants to enter.

Step 2: The “Wiggle” Test

This is the most effective hands-on test.

1. Grab the drive shaft firmly with one hand.

2. With the other hand, try to wiggle the U-joint cross back and forth and up and down.

3. What to feel for: There should be ZERO perceptible play. Any noticeable movement or “clunk” within the joint itself means the bearings are worn and it needs replacement.

Step 3: The Rotation Test

1. Rotate the drive shaft by hand so the U-joint is in a different position.

2. Perform the “wiggle” test again. Check for play in multiple orientations, as wear can be uneven.

Special Consideration: The Double Cardan Shaft

A double cardan shaft uses two universal joints connected by a centering yoke. It’s crucial to inspect both U-joints in this assembly. The centering ball socket in the middle yoke can also wear out, causing vibrations. Check for play in the entire assembly following the same steps.

What to Do If You Find a Bad Universal Joint

If your inspection reveals any wear or play, it’s time for a replacement. Universal joints are a wear item and are not typically serviceable—they are replaced as a unit.

For a standard universal joint drive shaft, you can often replace the individual U-joint. However, for complex systems or a worn double cardan shaft, it is often recommended to replace the entire assembly or shaft for guaranteed balance and performance.

Trust ApexCoupling for Your Universal Joint and Drive Shaft Needs

Your machinery’s reliability depends on the quality of its components. At ApexCoupling, we understand that a failed U-joint means more than just a part replacement—it means costly downtime.

That’s why we manufacture and supply a full range of high-performance power transmission products, including:

• Durable Universal Joints: Built to withstand high torque and harsh conditions.

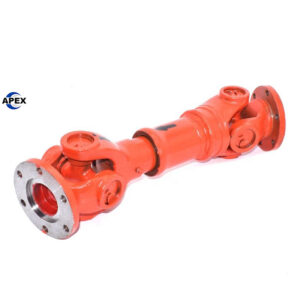

• Precision-Balanced Universal Joint Drive Shafts: Ready for direct replacement and seamless integration.

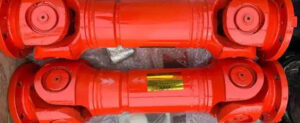

• Advanced Double Cardan Shaft Assemblies: Engineered for smooth operation and reduced vibration in demanding applications.

Don’t wait for a failure. Proactive inspection and using quality parts are the keys to operational efficiency.

Discover our full catalog of reliable universal joints, drive shafts, and couplings. Visit ApexCoupling today to find the perfect solution for your needs or to contact our technical experts
