Diaphragm Coupling vs Jaw Coupling: Which Is Better for Servo Motors?
🔸 Introduction
Choosing the right coupling is critical in servo motor systems where precision and responsiveness are required.
Two common options are diaphragm couplings and jaw couplings.

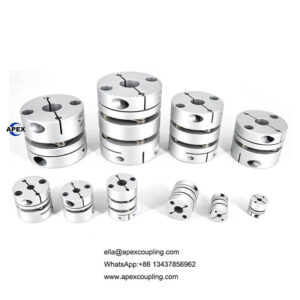

🔸 What Is a Diaphragm Coupling?
A diaphragm coupling uses metal discs to transmit torque while maintaining zero backlash and high torsional stiffness.
🔸 What Is a Jaw Coupling?
A jaw coupling uses an elastomer insert to absorb vibration and compensate misalignment.
🔸 Key Differences
| Feature | Diaphragm Coupling | Jaw Coupling |
|---|---|---|
| Backlash | Zero | Small |
| Precision | Very high | Medium |
| Damping | Low | High |
| Maintenance | None | Replace insert |
🔸 Which One to Choose?
- Choose diaphragm coupling for precision motion control
- Choose jaw coupling for vibration damping
🔸 Conclusion
For servo motor applications requiring high precision, diaphragm couplings are the better choice.
🔸 CTA
📩 Need help selecting a coupling? Contact Apexcoupling today.
