Diaphragm Couplings in Thermal Power Plants: The Ultimate Guide

In the demanding environment of thermal power plants, where reliability and efficiency are paramount, the choice of coupling can significantly impact overall performance. While various coupling types like the universal joint, double cardan shaft, and other flexible coupling designs have their applications, one type stands out for critical high-speed machinery: the diaphragm coupling.

This article will explore why the diaphragm coupling is a preferred choice in thermal power generation and its growing significance in the diaphragm coupling in turbo machinery market.

What is a Diaphragm Coupling?

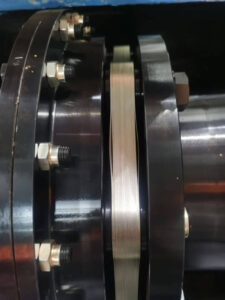

A diaphragm coupling is a type of flexible coupling that uses one or multiple thin, flexible metal discs (diaphragms) to transmit torque while accommodating misalignment. Unlike other couplings that rely on sliding parts or elastomers, the diaphragm coupling achieves flexibility through the elastic deformation of its metal membranes.

Key components include:

• Diaphragms: The flexible metallic elements that accommodate misalignment.

• Hubs: Connected to the driver and driven shafts.

• Intermediate Spool: Often used to connect two sets of diaphragms.

•

Why Diaphragm Couplings are Ideal for Thermal Power Plants

The operational demands of thermal power plants—high speeds, significant torque, and continuous operation—make diaphragm couplings exceptionally well-suited. Here’s why:

1. High Torque Capacity and Torsional Stiffness
Diaphragm couplings can transmit substantial torque efficiently, making them ideal for connecting turbines to generators. Their high torsional stiffness ensures precise timing between connected shafts, which is crucial for synchronized power generation.

2. Compensation for Misalignment
They excel at compensating for axial, radial, and angular misalignment between connected machines. This is vital in thermal plants, where thermal expansion and foundation settling can cause shaft misalignment over time.

3. Maintenance-Free and Long Service Life
With no moving parts that rub or wear, and no need for lubrication, diaphragm couplings offer a distinct advantage in reducing maintenance costs and downtime. This characteristic is a key driver for their adoption in the diaphragm coupling in turbo machinery market.

4. Excellent Performance in Harsh Conditions
Capable of operating in extreme temperatures (from -80°C to +300°C) and resistant to harsh environments, these couplings ensure reliable performance in the challenging conditions of a power plant.

Single vs. Double Diaphragm Couplings

• Single Diaphragm Coupling: Effective for angular misalignment but less capable of handling parallel offset. Ideal for applications with pure angular misalignment.

• Double Diaphragm Coupling (with an intermediate spacer): Can accommodate a combination of misalignments—angular, parallel, and axial—simultaneously. This makes them the go-to choice for complex machinery trains in power generation, offering greater flexibility and reliability.

•

How Diaphragm Couplings Compare to Other Solutions

While a universal joint or universal joint drive shaft is excellent for high-angle, low-speed applications (like vehicle drive shafts), they are not constant-velocity and can introduce vibrations at high speeds. A double cardan shaft improves on this but adds complexity.

For high-speed, high-power turbo machinery, the diaphragm coupling is superior due to its:

• Constant velocity transmission

• Zero backlash

• High-speed capability

• Minimal maintenance

It represents a specialized, high-performance category within the broader flexible coupling family.

ApexCoupling: Your Partner for Power Plant Coupling Solutions

Understanding the critical role of a reliable coupling is the first step. Sourcing it from a trusted manufacturer is the next. At ApexCoupling, we provide robust power transmission solutions engineered for durability and performance.

Our product portfolio is designed to meet the diverse needs of industrial clients:

• High-Performance Diaphragm Couplings for turbines, pumps, and compressors.

• Robust Universal Joints and Universal Joint Drive Shafts for applications requiring high-angle power transmission.

• Advanced Double Cardan Shafts for smooth power transfer in demanding conditions.

• A Comprehensive Range of Flexible Couplings for various misalignment and damping needs.

We are committed to delivering components that enhance operational efficiency, minimize unplanned downtime, and extend the lifecycle of your machinery.

Equip your facility with couplings built for reliability. Explore our catalog of industrial-grade diaphragm couplings and other power transmission products at ApexCoupling. Contact our engineering team today to discuss your specific application requirements and find the perfect solution.
