Crowned Drum Gear Coupling vs Straight Tooth – Why Crowned Teeth Win for Angular Misalignment

Gear couplings are the workhorses of heavy‑duty power transmission. But not all gear teeth are created equal.
Crowned (drum) teeth offer significant advantages over traditional straight teeth, especially when angular misalignment is present. This article explains why, and how the WGP/GICLZ series with brake disc can improve your machinery uptime.

1. Straight Tooth vs Crowned Tooth – Quick Comparison

2. Why Crowned (Drum) Gear Couplings Are Superior

The crowned tooth profile has a slightly curved external tooth surface. When angular misalignment occurs:

• The contact point moves smoothly along the curved surface – no edge digging

• Stress is distributed evenly – no concentration at tooth ends

• Lubrication film remains intact – reduces wear and friction

• Result: higher load capacity, lower noise, longer life

According to factory data (Apexcoupling), a crowned gear coupling can handle 15‑20% more torque than a straight tooth coupling of the same outer diameter.

3. WGP / GICLZ Drum Gear Coupling – Features That Matter

Our WGP and GICLZ series (JB/T 8854.3-2001) take full advantage of crowned tooth technology:

• High torsional stiffness – S45C steel body

• Large angular compensation – up to 1°

• Radial eccentricity – up to 1 mm

• Efficiency – 99.7%

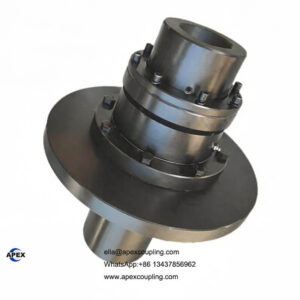

• Brake disc option (WGP type) – for controlled stopping, emergency braking in cranes, hoists, metallurgical equipment

• Easy maintenance – bell‑mouthed outer sleeve for quick disassembly

4. When to Choose a Gear Coupling with Brake Disc

If your application requires both power transmission and braking at the same shaft location, an integrated brake disc gear coupling (like WGP) eliminates the need for a separate brake drum. Benefits:

• Saves axial space

• Reduces component count

• Simplifies alignment (brake disc runs true to the coupling)

• Common in: metallurgical cranes, rolling mill auxiliary drives, mining hoists

5. Real‑World Example – Steel Mill Roller Drive

A steel mill experienced frequent coupling failures due to angular misalignment up to 0.8° caused by thermal expansion and foundation settlement.
Switching from straight‑tooth gear couplings to GICLZ crowned drum gear couplings (S45C, black oxide, keyway) increased coupling life from 6 months to over 2 years.
When they later added a brake requirement, they chose WGP type with brake disc – same reliable crowned tooth design, plus integrated braking.

6. Selection Guide for GICLZ / WGP Couplings

1. Calculate torque – select a model with rated torque ≥ 1.5× motor torque

2. Check misalignment – if angular >0.5°, crowned tooth is strongly recommended

3. Brake disc needed? – if yes, choose WGP type; if no, GICLZ is sufficient

4. Bore size & keyway – we machine to your exact shaft diameter

5. Speed – standard up to 4000 rpm; higher speed available with dynamic balancing

7. Conclusion

For heavy‑duty industrial drives where angular misalignment and high torque are present, a crowned (drum) gear coupling is the clear winner over straight tooth designs.
Add a brake disc (WGP type) and you get a compact, high‑efficiency, low‑maintenance solution for metallurgical equipment, cranes, and conveyors.
